Description

Module Size:15*28mm
Interface Mode:2*4*2.54(Availabel Universal Board Dupont Cable)
Voltage:1.8V~3.6VDC
Communication Level:07VDD~3.6VDC
Measured Distance:Greater than 380m
Maximum Power:10dpm(about 10MW)
Air Speed:1.2kbps~500kbps
Emission Current:29.2mA(Peak)
Receiving Current:14.7mA
Communication Interface:Standard SPI Interface,Mode 0,Communication Rate Up to 10Mbps
Single Packet:1-32 Bytes,Level 3 FIFO Buffering
Support:RSSI
Working Temperature:-30℃~85℃
Working Temperature:10%-90%
Storage Temperature:-40℃~125℃
Working Band:387MHz~464MHz
Receiving Sensitivity:-117dpm 250kbps

Package Type：
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,modle can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

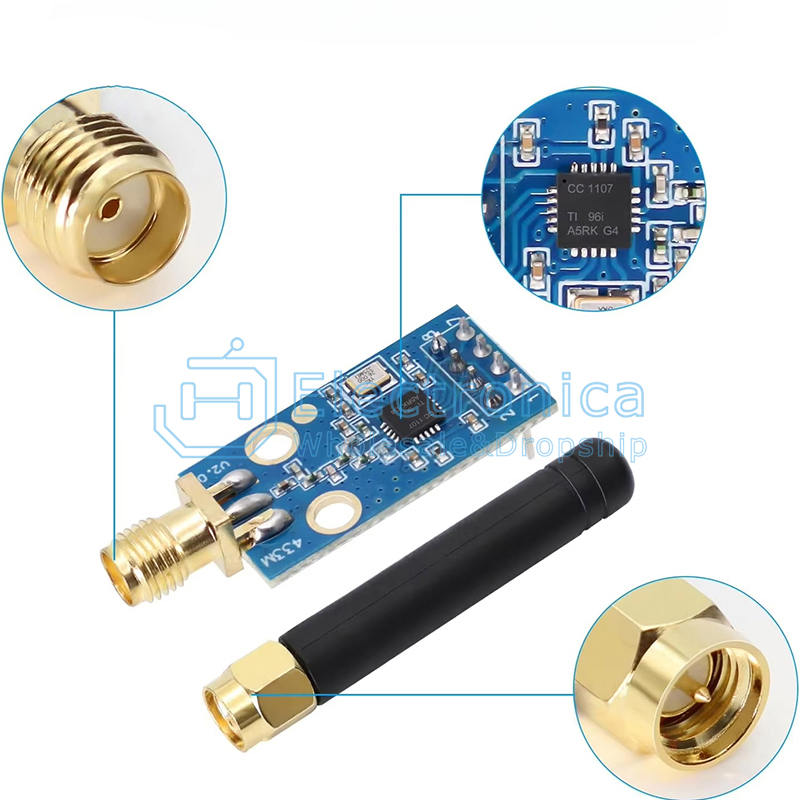

CC1101 Wireless Module with Glue Stick Antenna/Copper Antenna

SKU : YXS1906 Brand :

Price : $ 1.39~1.84

100 +: $1.39~1.84500 +: $1.39~1.841000 +: $1.39~1.84

Style：

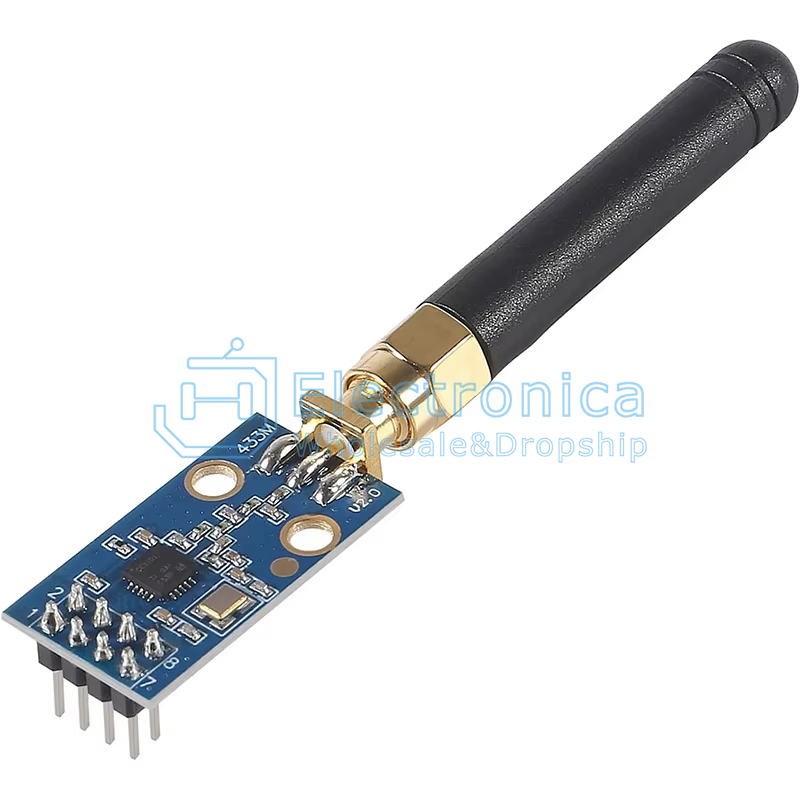

CC1101 with SMA Short Glue Stick Antenna

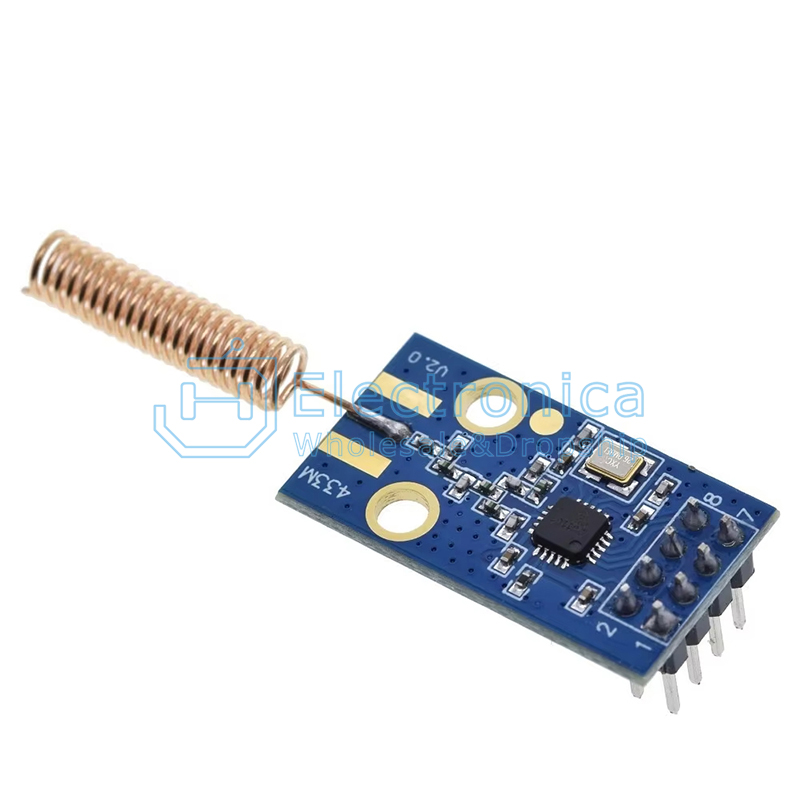

CC1101 with Welded Copper Antenna

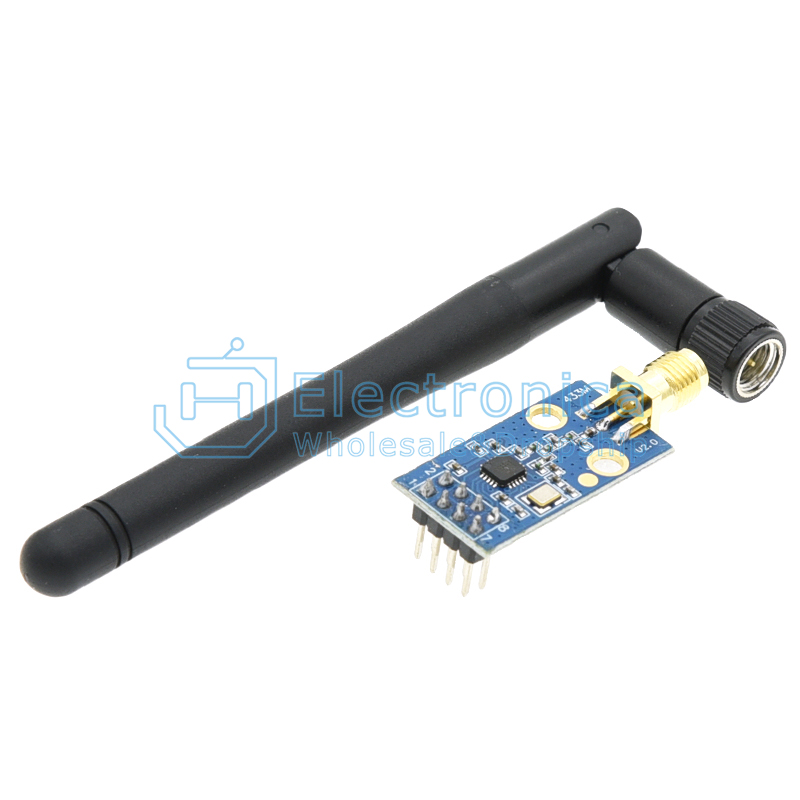

CC1101 with SMA Long Glue Stick Antenna
