Description

Model:FNIRSI-1014D
Maximum Test Voltage:1X:40V 10X:400V
Cursor Type:Horizontal X,Horizontal Y,Trigger Y
Number of Channels:2
Screen Size:7 Inches
Scrolling Mode:Supported
Screen Resolution:800*480
One-click AUTO:Supported
Waveform Storage:1000 Screen Shots+1000 Waveforms
Display Process:TFT
Waveform Manager:Supported
Analog Bandwidth:100MHz
Voltage Accuracy:±5%
Maximum Sampling Rate:1GS/s
Frequency Accuracy:±0.01% High Precision
Rise Time:<3nS
Measurement Parameters:A Total of 12
Storage Depth:240Kbit
Signal Generator:Support 14 Kinds of Signal Output
Input Impedance:1MQ
Vertical Sensitivity:50mV~500V
Clipping Output:Supported
Time Base Range:50S~10nS
Expansion Interface:USB Transmission Interface
Power Supply Requirements:5V 2A/3A/4A
Trigger Mode:Single/Normal/Automatic
Body Size:310mm*145mm*70mm
Trigger Edge:Rising Edge/Falling Edge
Coupling Mode:AC/DC

Package Type：
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,modle can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

FNIRSI-1014D 2-in-1 Digital Oscilloscope

SKU : YXS1937 Brand :

Price : $ 147.83~160.27

100 +: $147.83~160.27500 +: $147.83~160.271000 +: $147.83~160.27

Style：

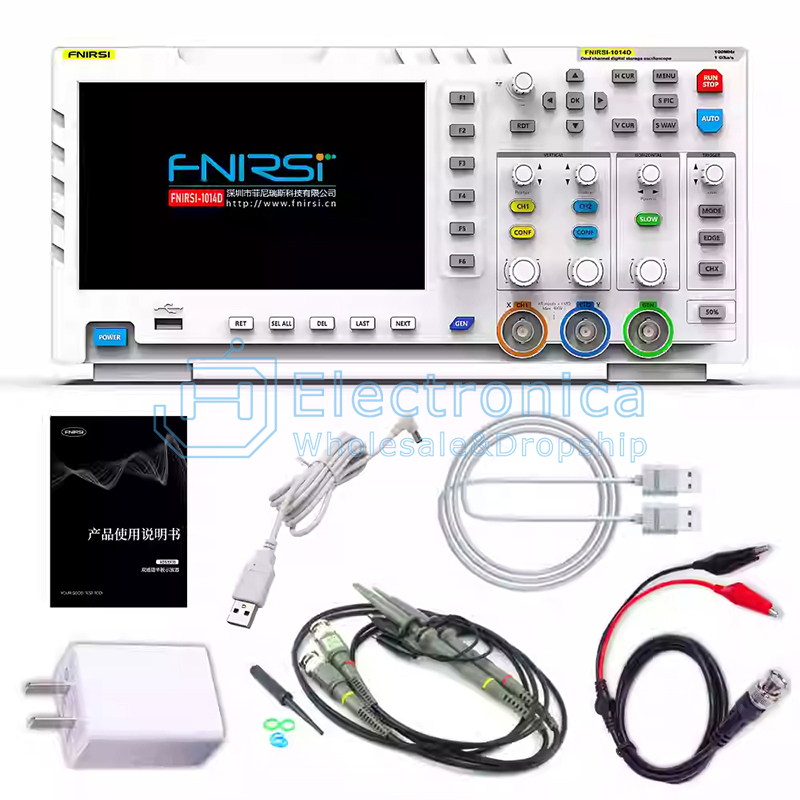

Standard Configuration

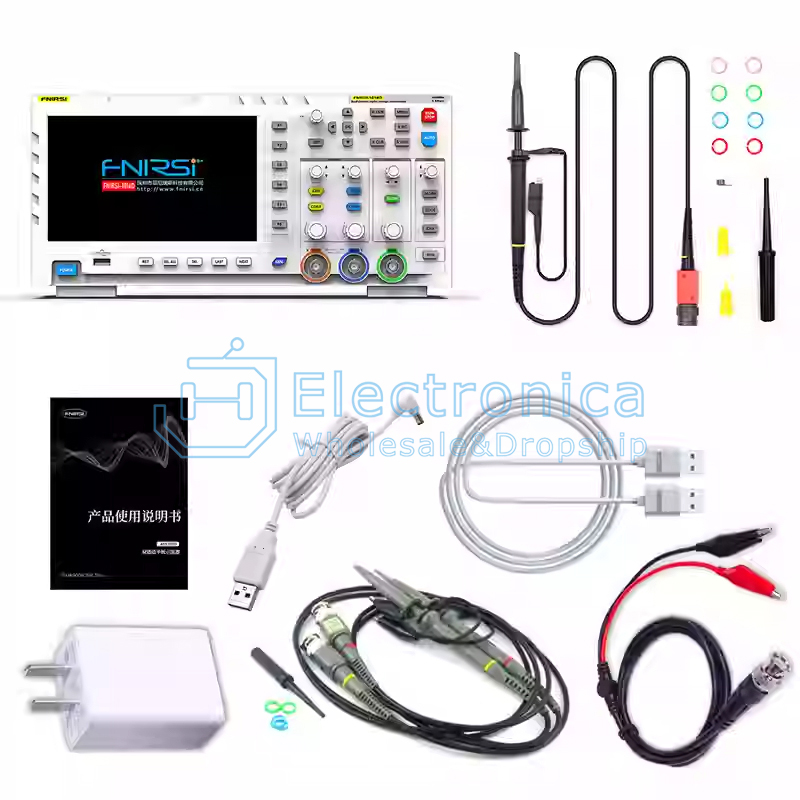

High Configuration
