Description

Max Power:4W
Max Switching Voltage:60VDC/VAC
High Pressure Resistance:60VDC/VAC
Max Switching Current:0.25A
Maximum Load Current:0.5A
Maximum Contact Resistance:115M
Minimum Insulation Resistance:2*10^7/2*10^9
Operation Time:0.25ms
Bounce Time:0.05ms
Response Frequency:3000Hz
Sensitivity Value:10~20AT(2-pin AT10-15)
Minimum Reset Sensitivity:5FT
Maximum Contact Capacitance:2.0PF
Electrical Life(Load):5*10^6(50mV,10mA)
Test Coil Number/Resistance:5000/600Ω

Package Type：
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,modle can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

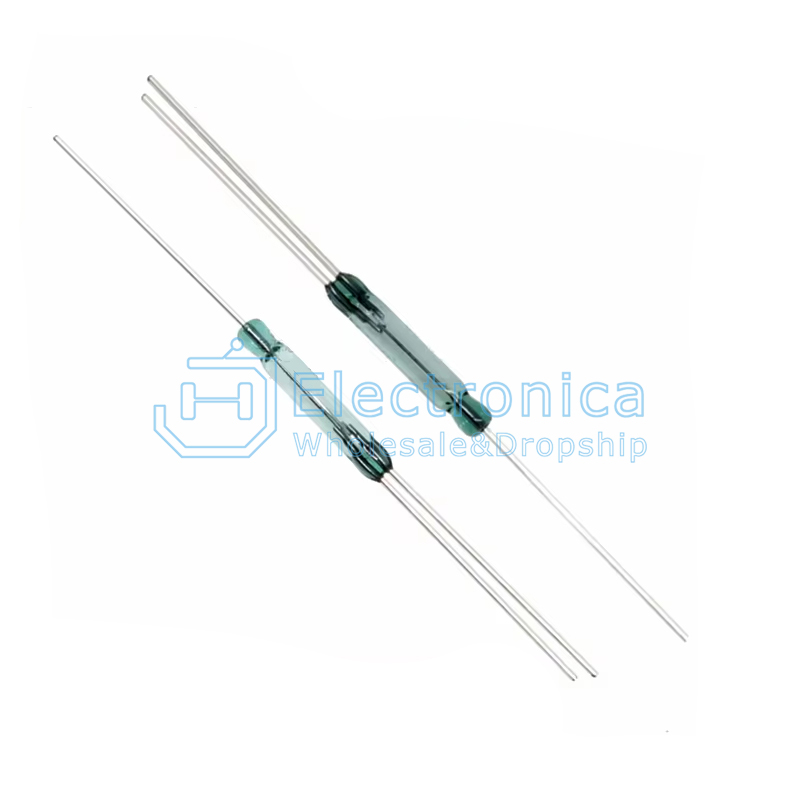

RI-90 2.5/2.54*14mm 2/3P Reed Tube

SKU : YXS1899 Brand :

Price : $ 0.29~0.63

100 +: $0.29~0.63500 +: $0.29~0.631000 +: $0.29~0.63
