Description

Rectification Mode:Synchronous Rectification
Input Voltage:7V~22V(5V Output) 11V-22V(9V Output)
Output Voltage:5V 9V
Output Current:3A
Conversion Efficiency:96%(Max)
Switching Frequency:340 kHz
Output Ripple:30mV(Max)
Load Adjustment Rate:±0.5%
Voltage Adjustment Rate:±2.5%
Operating Temperature:-40℃~85℃

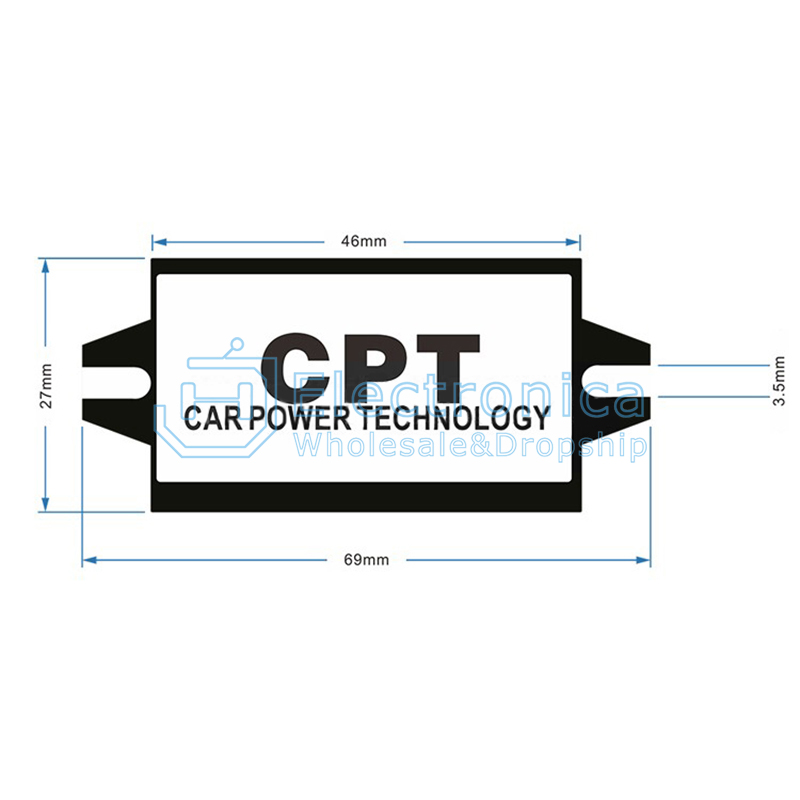

External Dimensions:46*26*14

Package Type：
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,modle can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

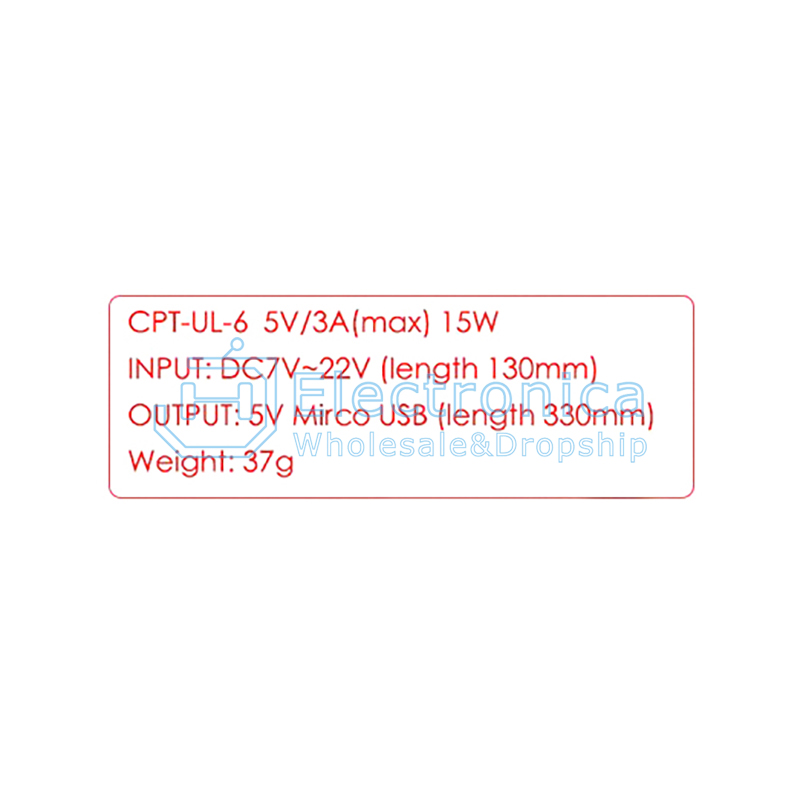

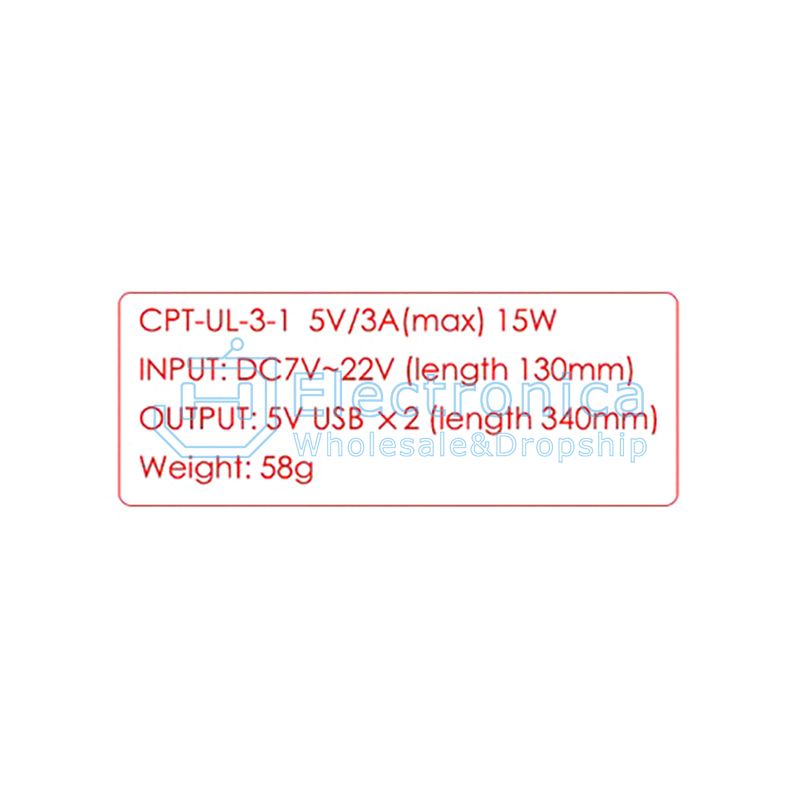

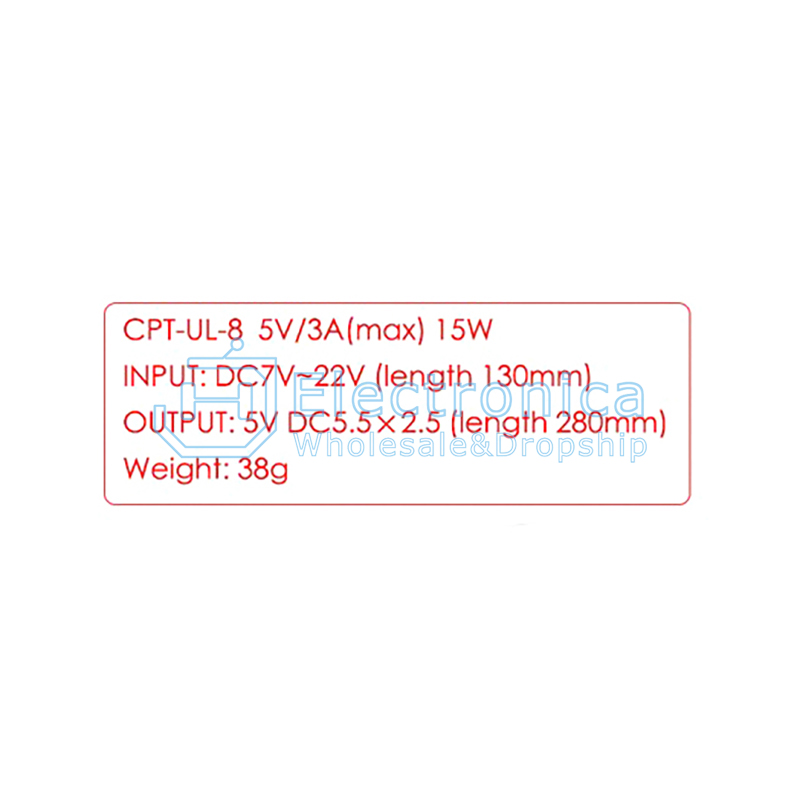

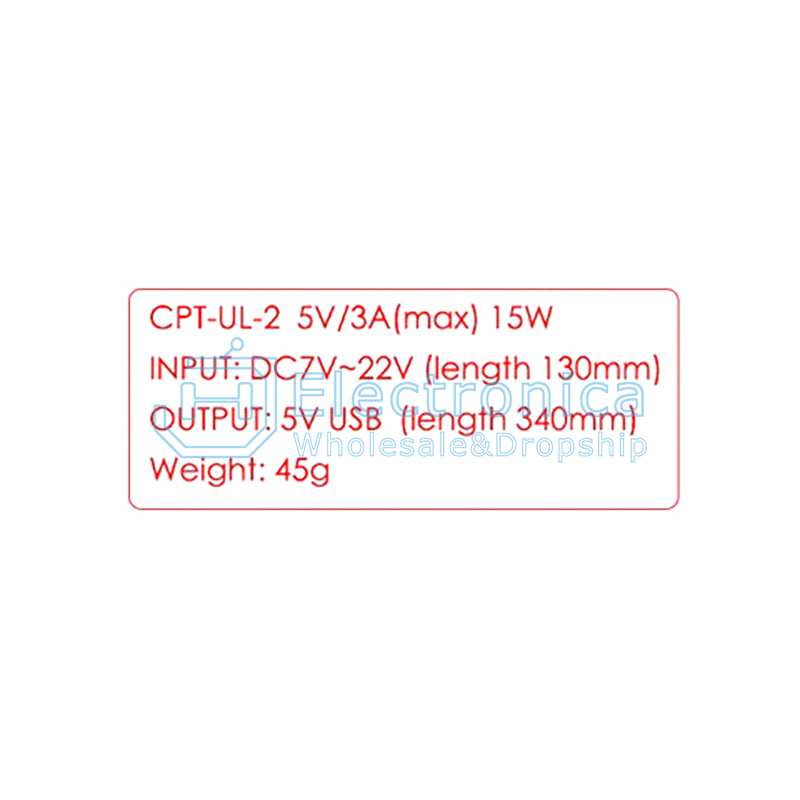

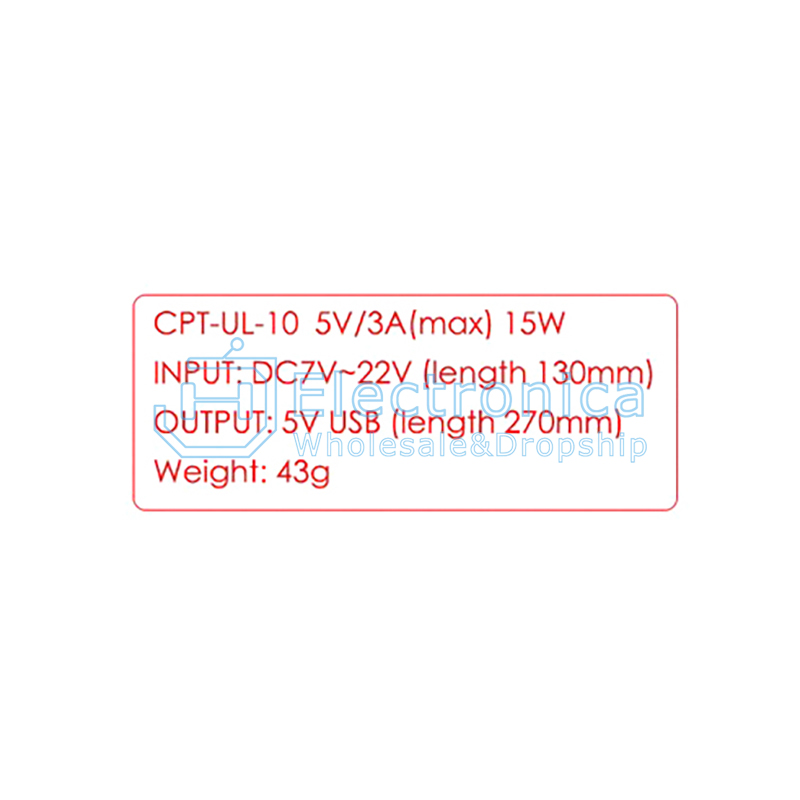

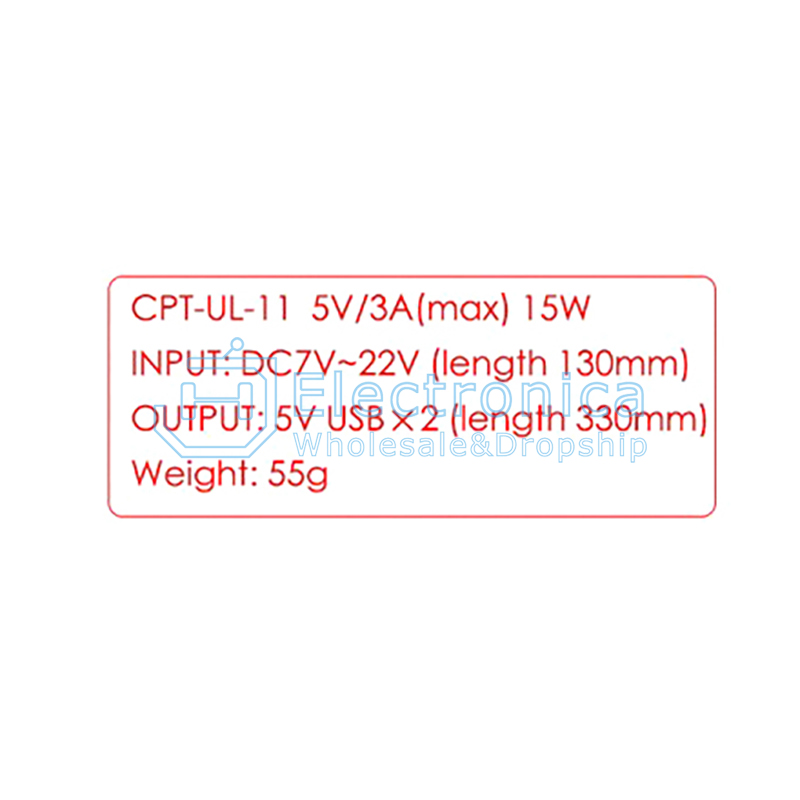

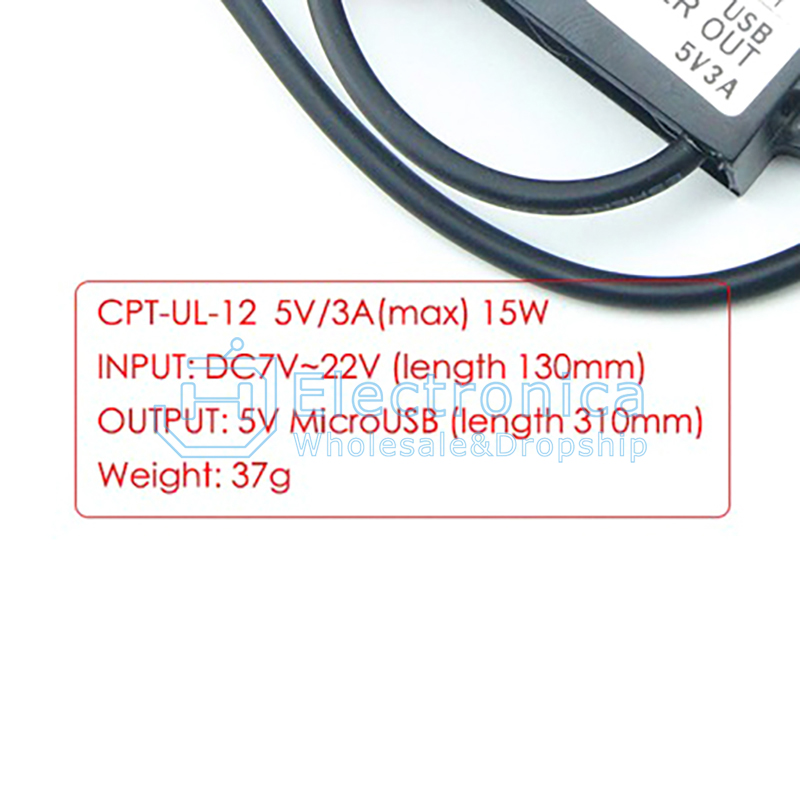

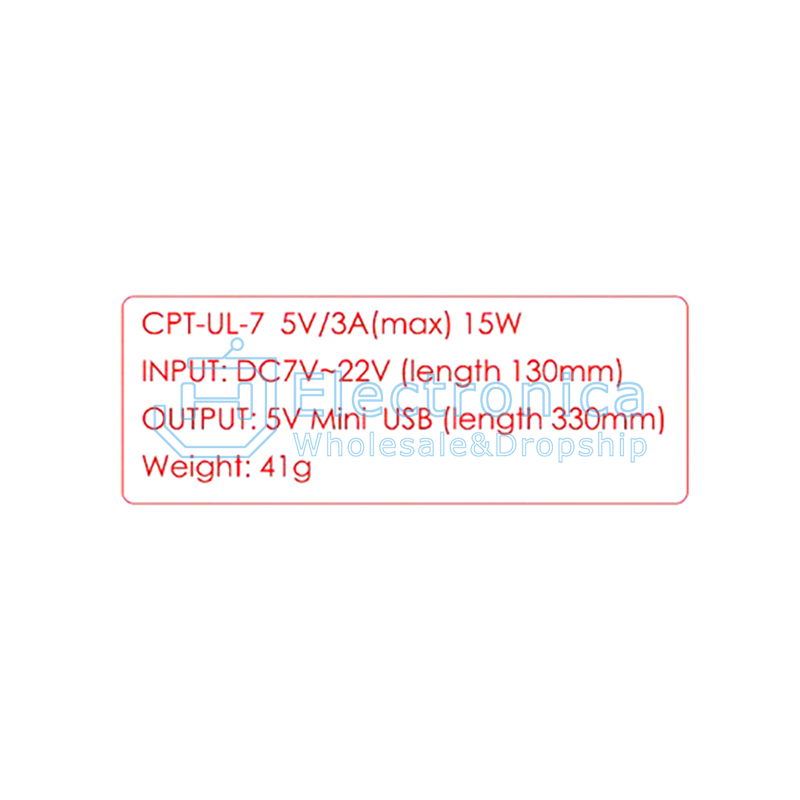

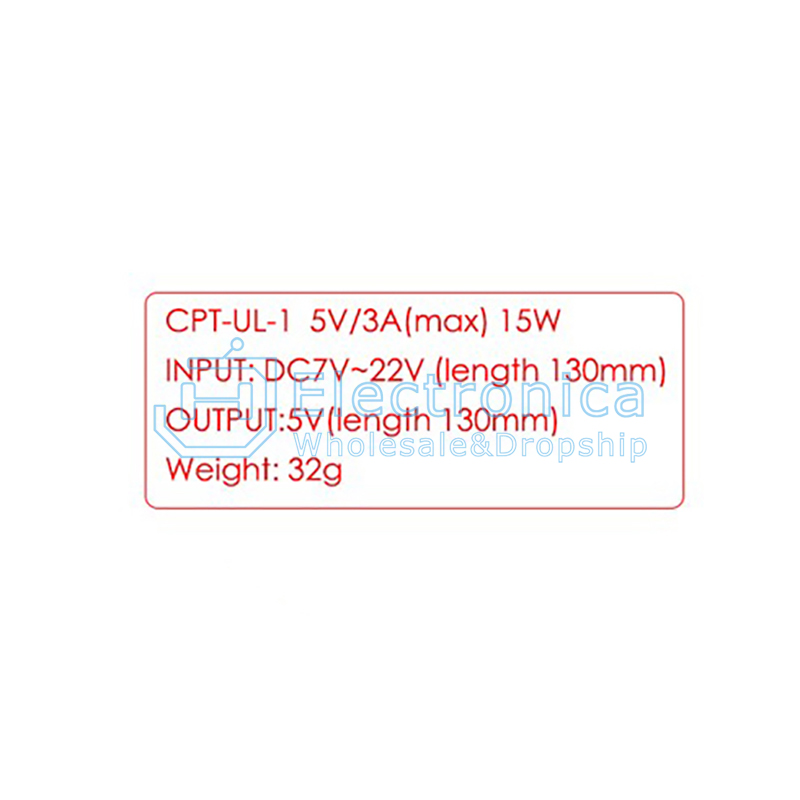

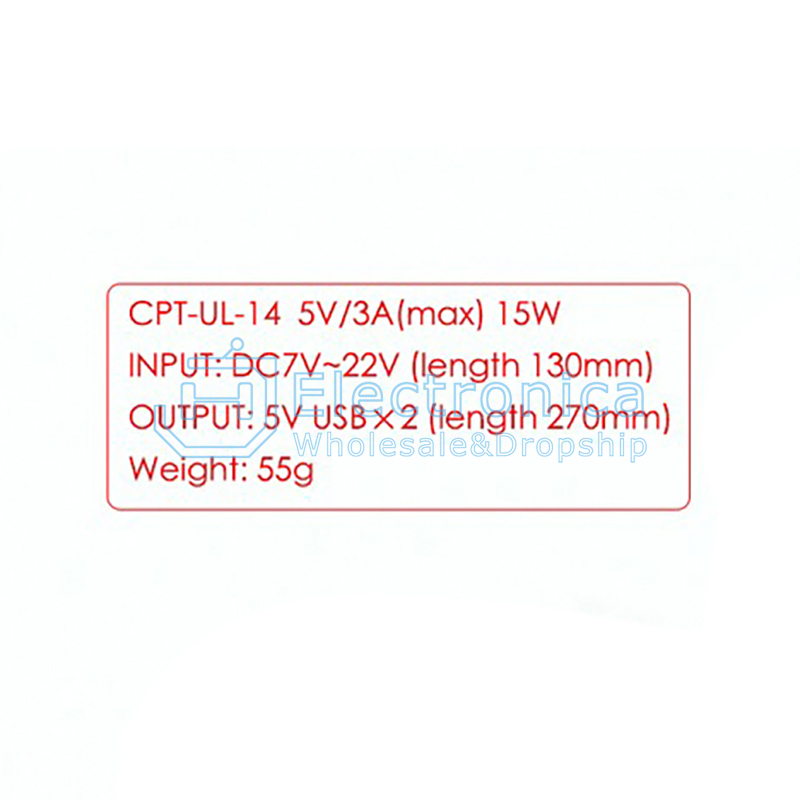

CPT-UL-1/2/3/4/5/6/7/8/9/10/11/12/14 15W Step-down Power Converter

SKU : YXS1904 Brand :

Price : $ 2.05

100 +: $2.05500 +: $2.051000 +: $2.05
