Description

Model: HX-3S-FL25A-A

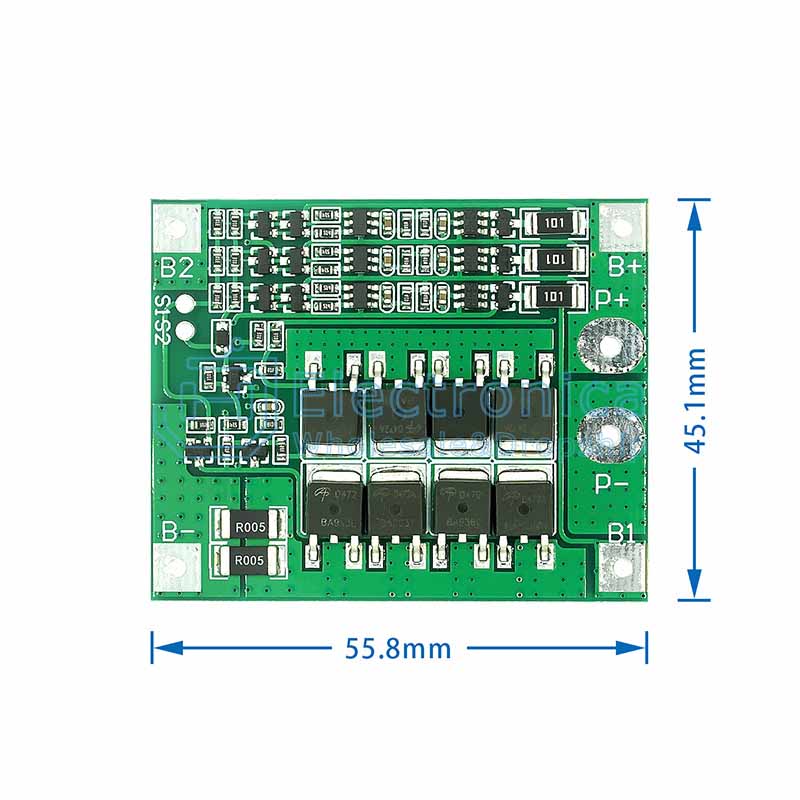

Size: about 56mm*45mm*4mm
Over voltage range: 4.25~4.35V ± 0.05V
Over discharge voltage range: 2.3~3.0V ± 0.05V
Maximum operating current: 0~25A
Maximum transient current: 34~40A
Quiescent current: less than 30uA
Internal resistance: less than 100Mohm
Working temperature: -40℃ ~ +50℃
Storage condition: -40℃ ~ +80℃
Effective life: more than30000h
Short circuit protection: Yes, delayed self recovery

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

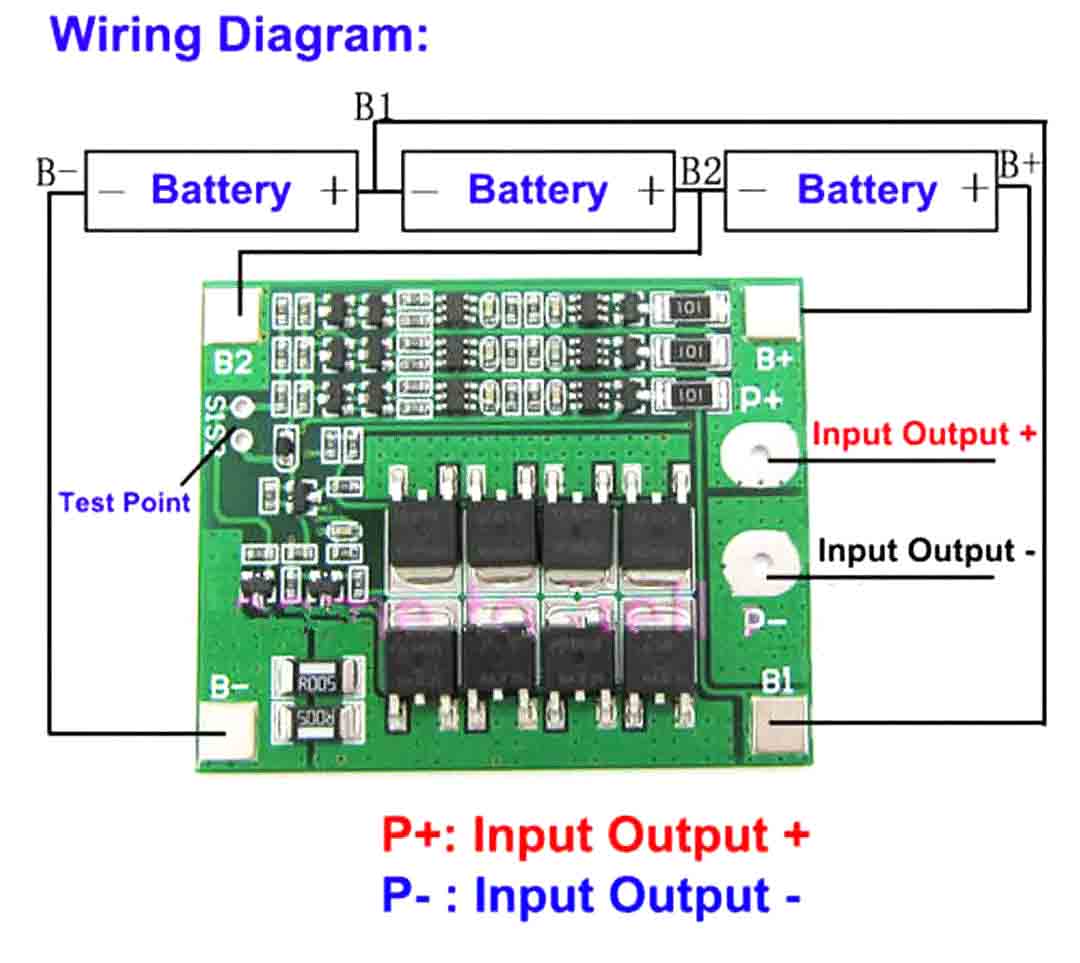

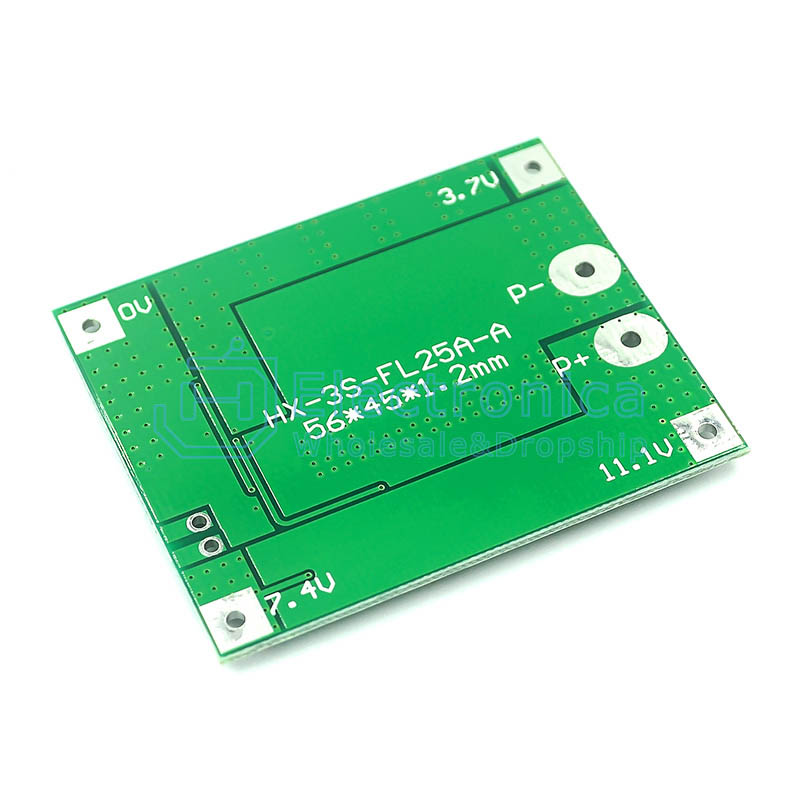

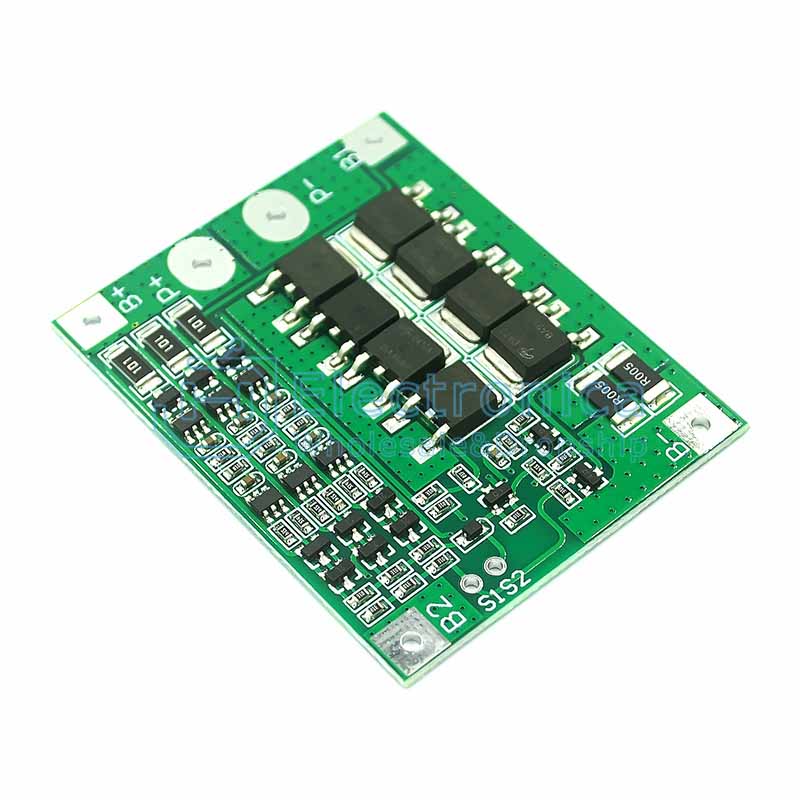

3S 25A 18650 Lithium Battery Protection Board

SKU : YXA262 Brand : JH Stock

Price : $ 0.54

100 +: $0.54500 +: $0.541000 +: $0.54
