Description

Size: approx.50*32*3mm
Lamp shift maximum discharge current: 15A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28 ± 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 ± 0.05V
Over discharge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 ± 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30 ± 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect negative open
Main circuit conduction resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (battery over discharge) ≤10uA
Temperature range: -30 / + 80 ℃

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

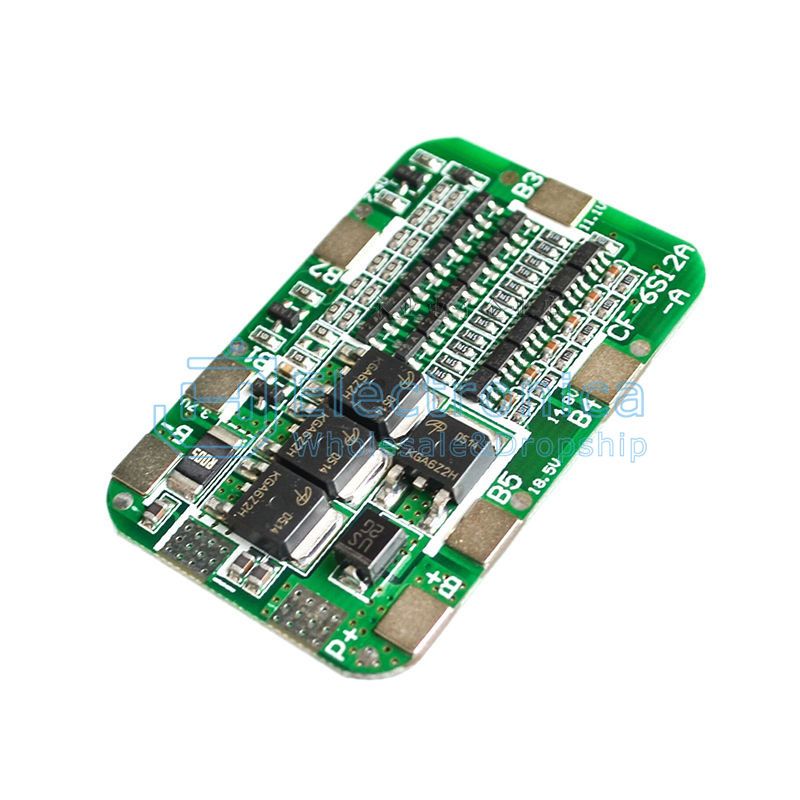

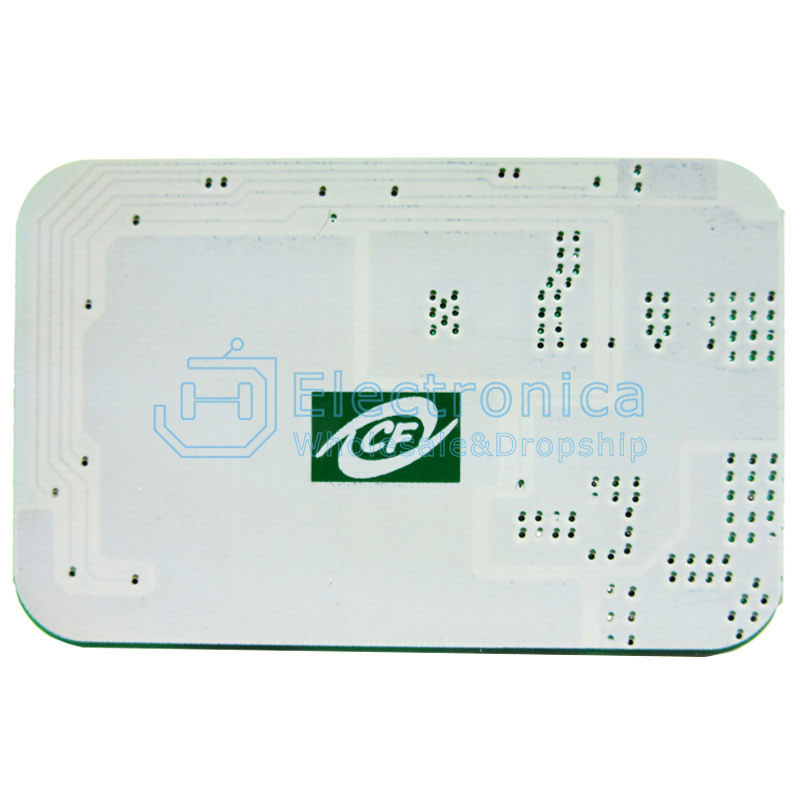

BMS 6S 22V 18650 Lithium Battery Protection Board

SKU : YXA252 Brand : JH Stock

Price : $ 0.62

100 +: $0.62500 +: $0.621000 +: $0.62

Quantity :

- +

ADD TO CART
