Description

1S model:QS-B401ANL-20A
2S model:QS-B402ANL-25A
Module size:23.6*11.28mm
Appearance size:23.6*11.3*3.4mm
Material:polymer
Technical parameters:
1S:
Single section overcharge protection voltage:4.25/min 4.35/max
Recovery voltage of single section overcharge protection:4.05/min 4.15/max
Single section over discharge protection voltage:2.30/min 2.50/max
Overcharge protection current:16V
Over discharge protection current:16V
2S:
Single section overcharge protection voltage:4.26/min 4.31/max
Recovery voltage of single section overcharge protection:4.03/min 4.13/max
Single section over discharge protection voltage: 2.82/min 2.98/max
Overcharge protection current:25V
Over discharge protection current:25V

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

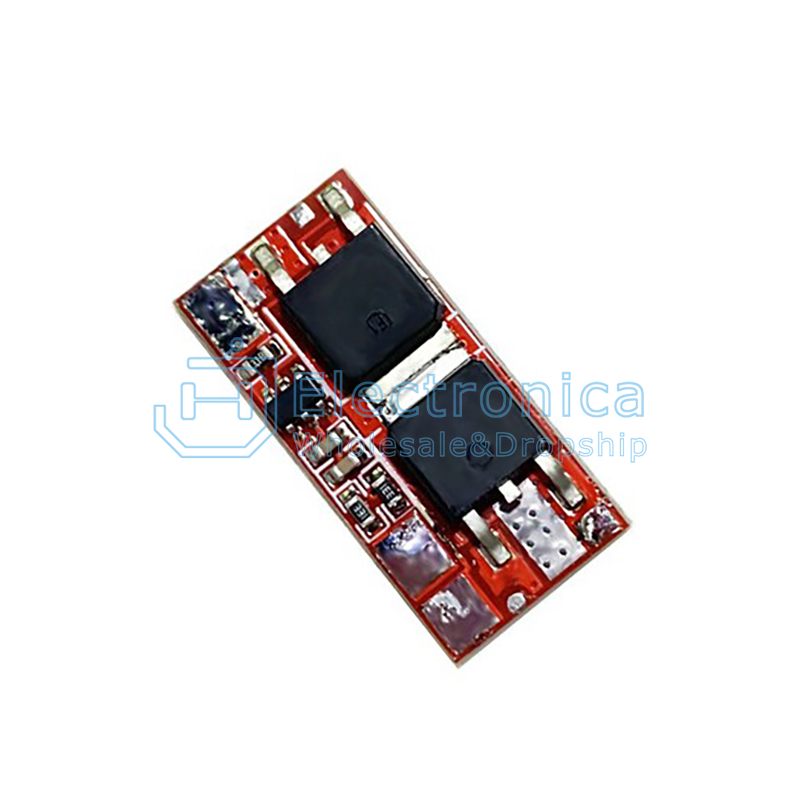

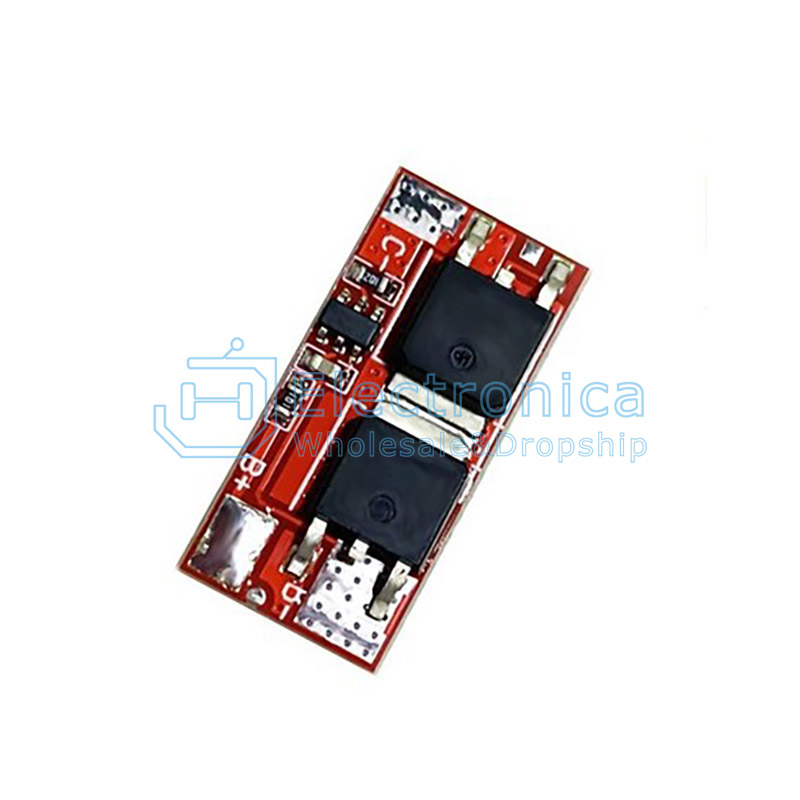

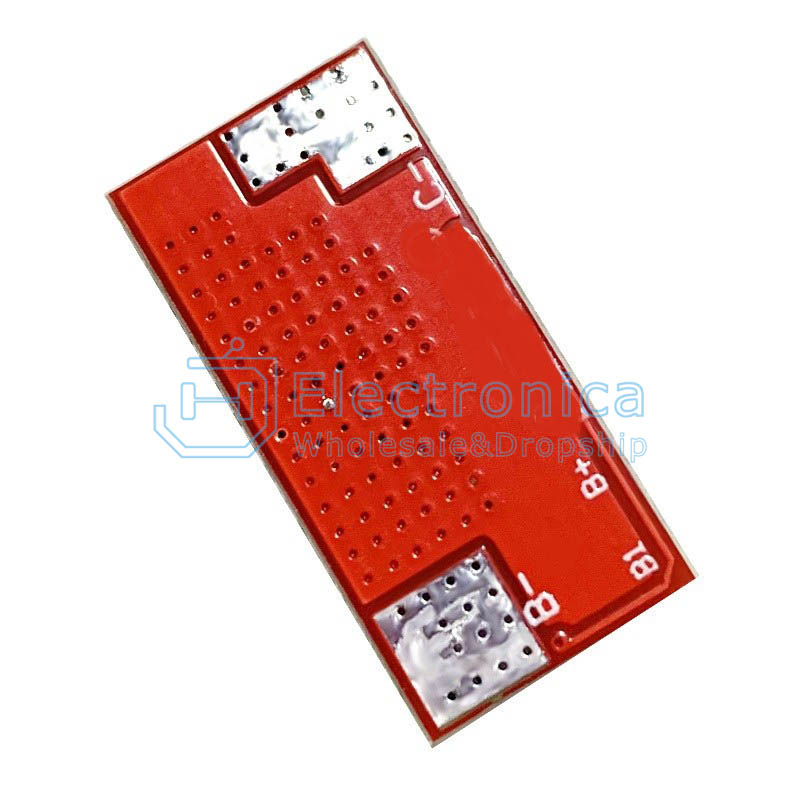

1/2S Polymer Lithium Battery Protection Board

SKU : YXC635 Brand : JH Stock

Price : $ 0.73~0.82

100 +: $0.73~0.82500 +: $0.73~0.821000 +: $0.73~0.82

Style：

1S (QS-B401ANL-20A)
2S (QS-B402ANL-25A)
