Description

The protection board is for 5 series Li-ion batteries, mainly used for electric power tools.
It uses special IC for 5S lithium batteries as processor to detect real-time voltage, charge and discharge current and ambient temperature of each battery.
Stable various protective functions for charging and discharging, such as overcharge protection, over-discharge protection and short circuit protection.
Low power consumption, the working current is about 25uA and quiescent current is about 6uA.
Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries.
Working voltage:18V
Charging current:1 to 3A
Discharge current:10A(adjustable)
Overdischarge protection current:35±10A
Protection board size:46*40*3.6mm(length, width and thickness)
Charging voltage:21 to 24V
Applicable batteries:lithium iron phosphate,lithium manganate,lithium cobalt oxide,ternary,etc
Applications:5 series 21V power tools,screwdrivers,charging hand drills,lithium batteries,special protection boards,etc

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

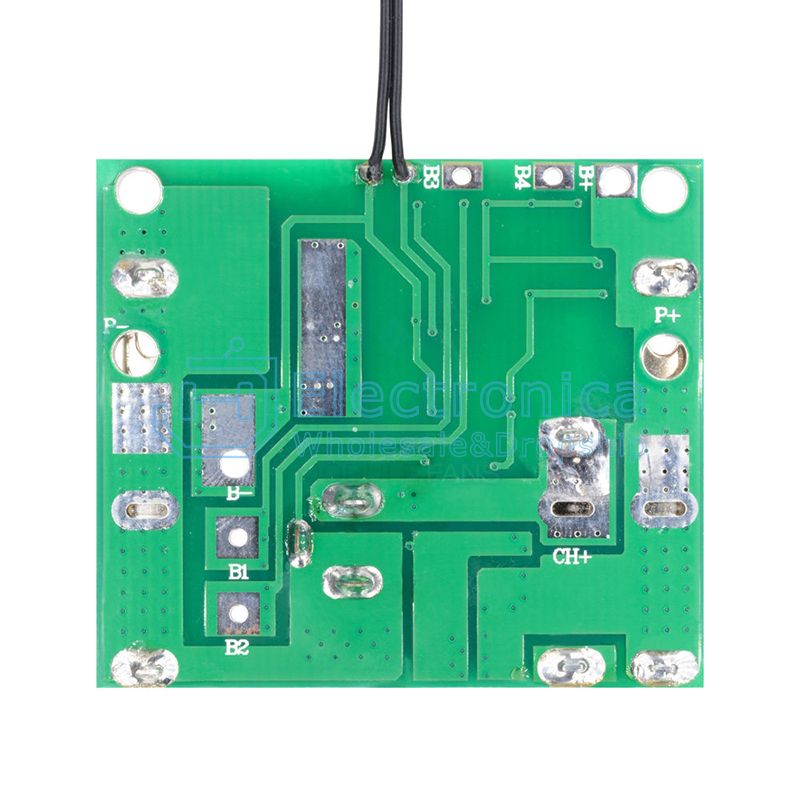

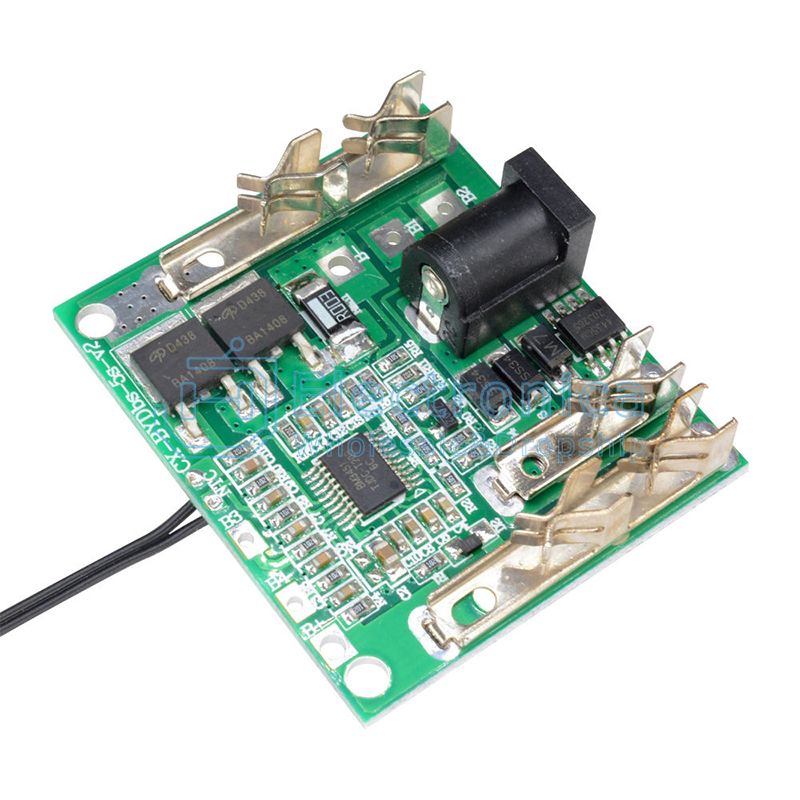

5S 18V 21V 20A Lithium Battery Charging Protection Board

SKU : YXB438 Brand : JH Sourcing

Price : $ 1.84

100 +: $1.84500 +: $1.841000 +: $1.84
