Description

Operating Specifications:
Weight: 171g
Working temperature: 0-40℃
Working humidity: ≤ 75% rh
Storage conditions: -20~60℃
Storage humidity: ≤ 80% rh
DIY supplies: Electrical
Working mode: Automatic/Manual ranging
Measurement inductance range: No measurement Temperature range: -20~1000C/-4F-1832F
Measuring capacitance range: 9.99nF/9.99nF/9.99nF/9.99uf/9.99uf/9.99mF
Measurement voltage range: 999.9mV/9.999V/99.99V/999.9V
Measurement current range: 999.9ua/99.9ua/999.9ma/10A
Measurement resistance range: 99.99/999.9/9.999K/9.999K/999.9K/9.999M/99.99M ohm
Frequency: 99.99Hz/999.9Hz/9.999kHz/9.999kHz/999.99kHz/5MHz
Display type: Digital display
Diode test: Yes
Continuity: Yes
Duty cycle: 1% -99%
Sampling rate: 3 times per second
Power supply: 1.5V AA*2

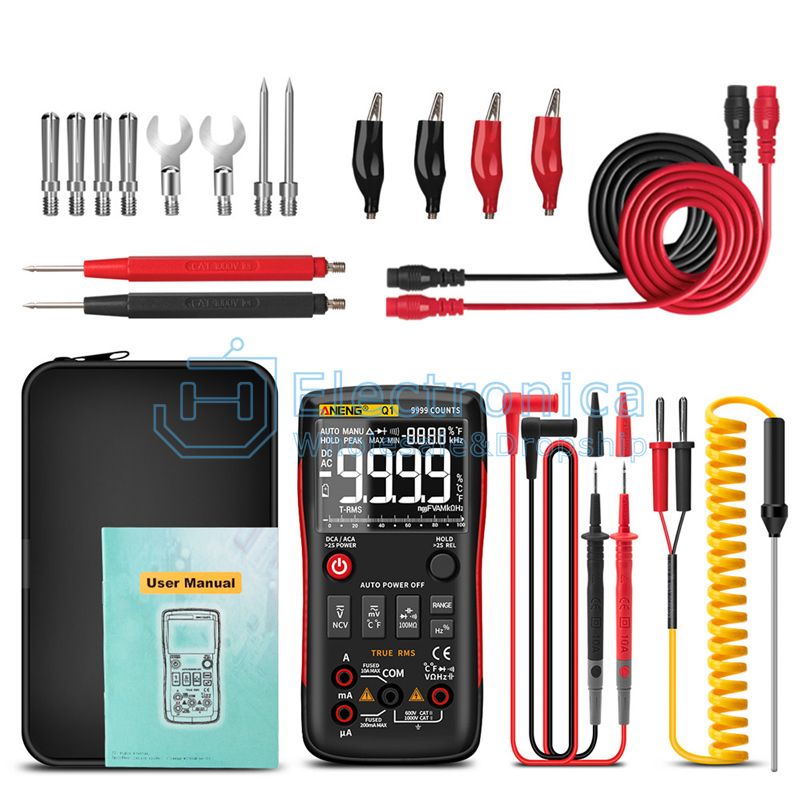

Packaging content: 1*Multimeter, 1*Probe, 1*Temperature Test Wire, 1*English Instruction Manual, 1*16PS Combination Wire, 1*Cloth Bag
Notes:
1. Shall not exceed the maximum value specified in the specification.
2. Do not input voltage in current mode, resistance mode, diode mode, continuity mode, or temperature mode.
3. Do not use this product if the battery or battery cover is not properly placed; 4. Before replacing the battery or fuse, please turn off the product and unplug the test lead from the testing point. 5. When measuring the current setting, the input voltage should not exceed 36VDC or 25VAC.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

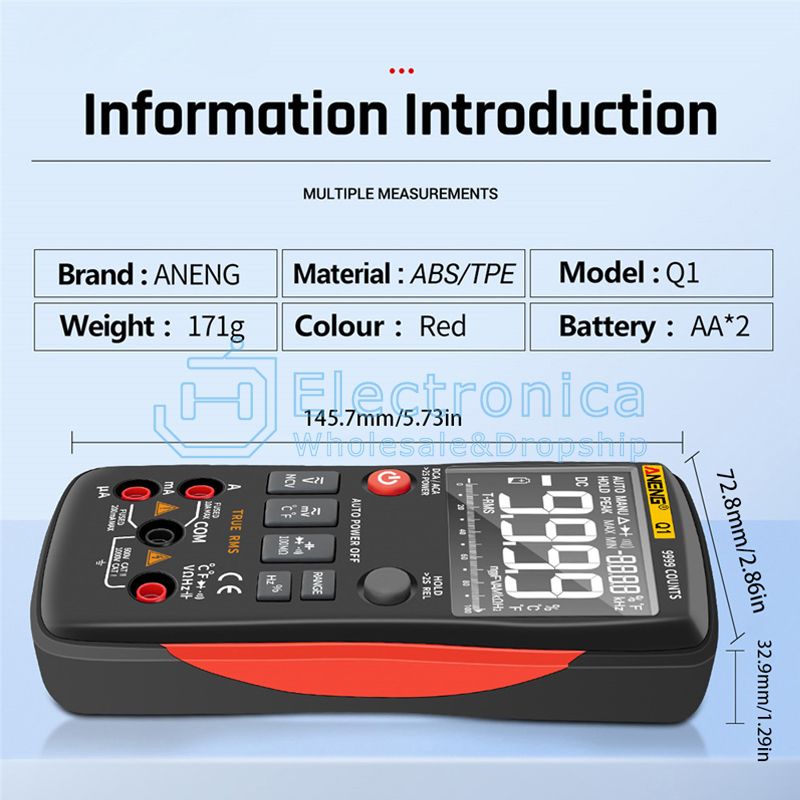

ANENG High Precision Intelligent Digital Multimeter

SKU : YXS1699 Brand :

Price : $ 25.48~27.20

100 +: $25.48~27.20500 +: $25.48~27.201000 +: $25.48~27.20

Style：

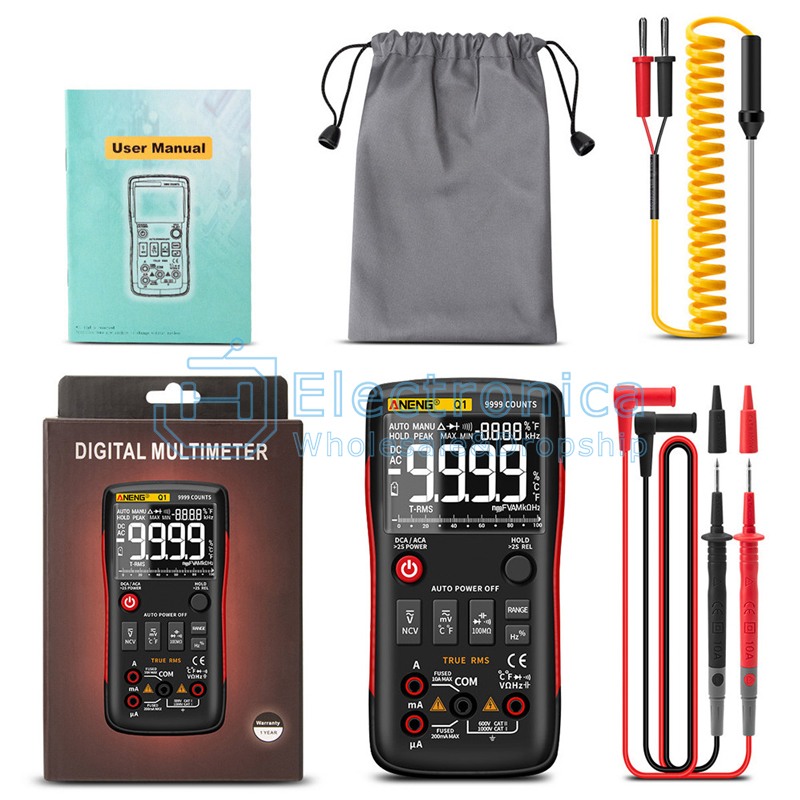

Red Standard Version without Battery
Yellow Standard Version without Battery

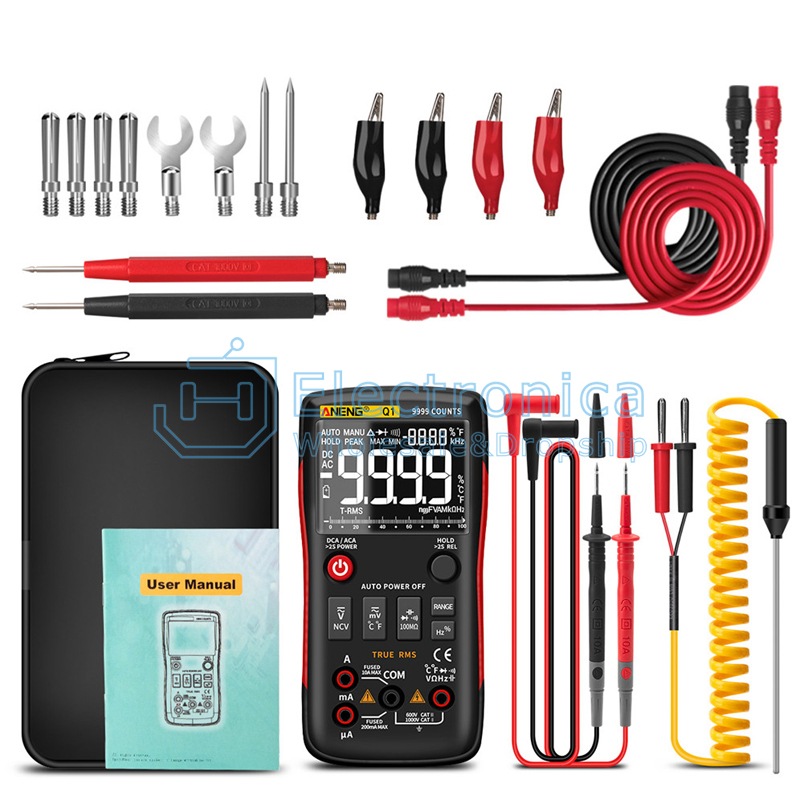

Red High Configuration Version without Battery

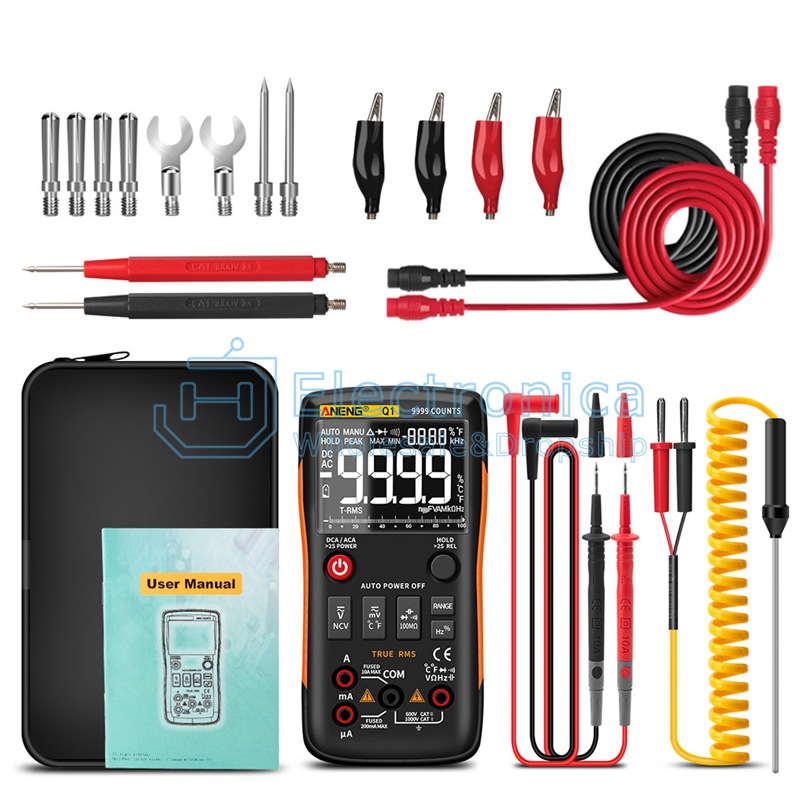

Yellow High Configuration Version without Battery
