Description

Product Parameter:
Extreme use: Continuous current 30A, instantaneous 35A, 40A for 10 seconds
Size: 32*24*7mm
Weight: 13g(without cable)/20g(with cable)
Voltage range: 4V-16V
Battery quantity: 4-12NIMH 2-3LIPO (BEC output not allowed for 4LIPO)
BEC output: Continuous 2A/instantaneous 3A
2LIPO 4-5 micro servo
3LIPO 3-4 Micro Servo
Product Feature:
1. Automatically select 2-3LIPO, with protection voltages of 6V/9V respectively
2. Automatically select NIMH, with a protection voltage of 0.8V for each section
3. Safe start, prohibit starting if the throttle position is incorrect
4. Temperature protection, shutdown at a surface temperature of 110 degrees Celsius
5. Loss of control protection, shutdown after 1 second of no signal
Performance Description:
The upper limit of the rotational speed is as high as 300000 rpm for 2-pole internal rotation, 50000 rpm for 12 pole external rotation, and 42000 rpm for 14 pole external rotation. 8KHZPWM control, using speed control curve
Automatic throttle adaptation, suitable for more remote control devices
Using BEC and MCU to separate power supply for more stable operation

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

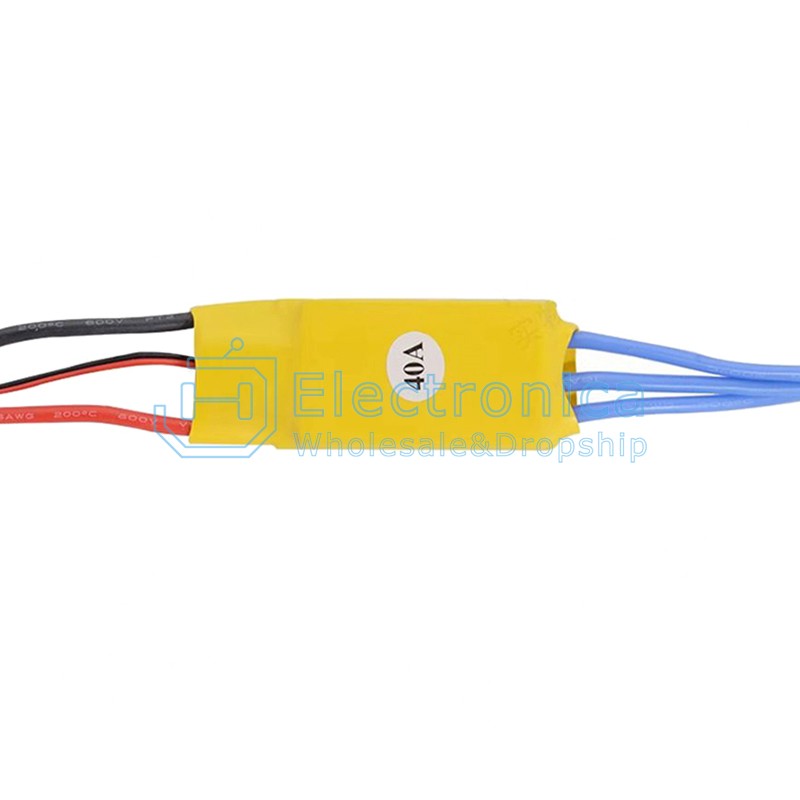

HW30A/40A Brushless Electronic Speed Controller

SKU : YXS1707 Brand :

Price : $ 2.58~4.05

100 +: $2.58~4.05500 +: $2.58~4.051000 +: $2.58~4.05
