Description

Product Parameters:
Product model:DY-AP3001
Working voltage:DC 8-24V
Working mode:Class D (PWM modulation)
Number of channels:Mono
Signal input:default single ended (can be changed to differential) input
Input impedance:1KΩ
Output load:4-8Ω
Adapted horn (30W~300W):4 ohms(8-16V power supply),8 ohms(8-24V power supply)
Precautions:
1. The recommended power supply voltage is 8-24V DC. If it exceeds 26V, the chip may burn out
2. When connected to a 4 ohm horn, the power supply should not exceed 16V, and when connected to an 8 ohm horn, the power supply should not exceed 24V
3. The recommended power supply current is 2A or above
4. The positive and negative poles of the power supply cannot be reversed, and the reverse connected chip is burnt out; This module is only suitable for single power supply and cannot be connected to a negative power supply
5. Ensure that the input audio source signal is between 0.5V and 1.5V
6. The horn cable should not be too long, ensuring that it is suitable within 1 meter
7. Pay attention to static electricity protection. Before touching the power amplifier board, it is necessary to release static electricity from your hands to avoid static electricity from breaking down the power amplifier chip. Digital power amplifiers are sensitive to static electricity
8. It is recommended to use a horn with a rated power of 30W or above to avoid heating and burning the horn

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

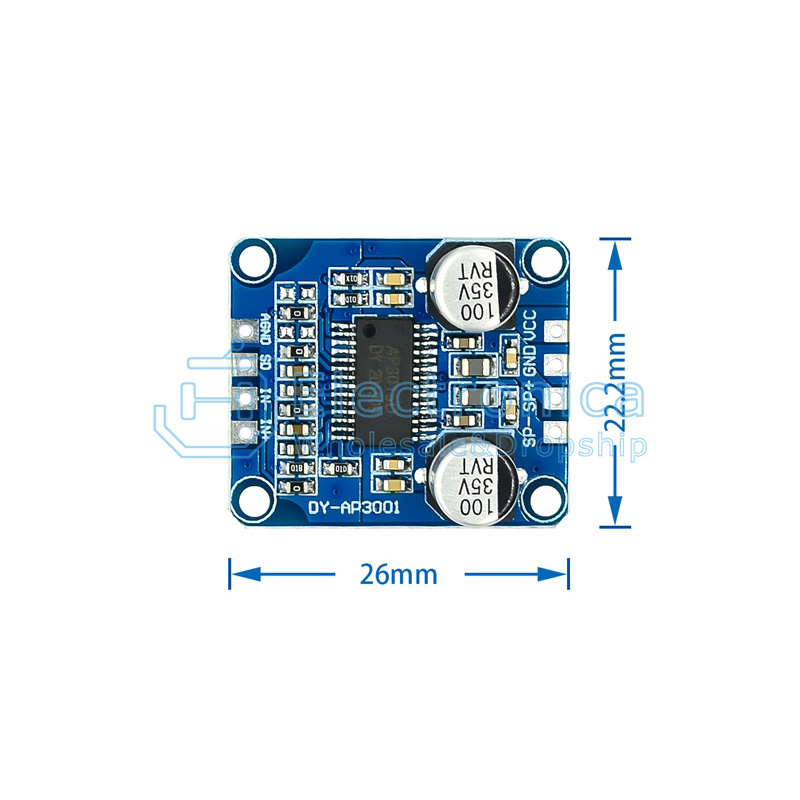

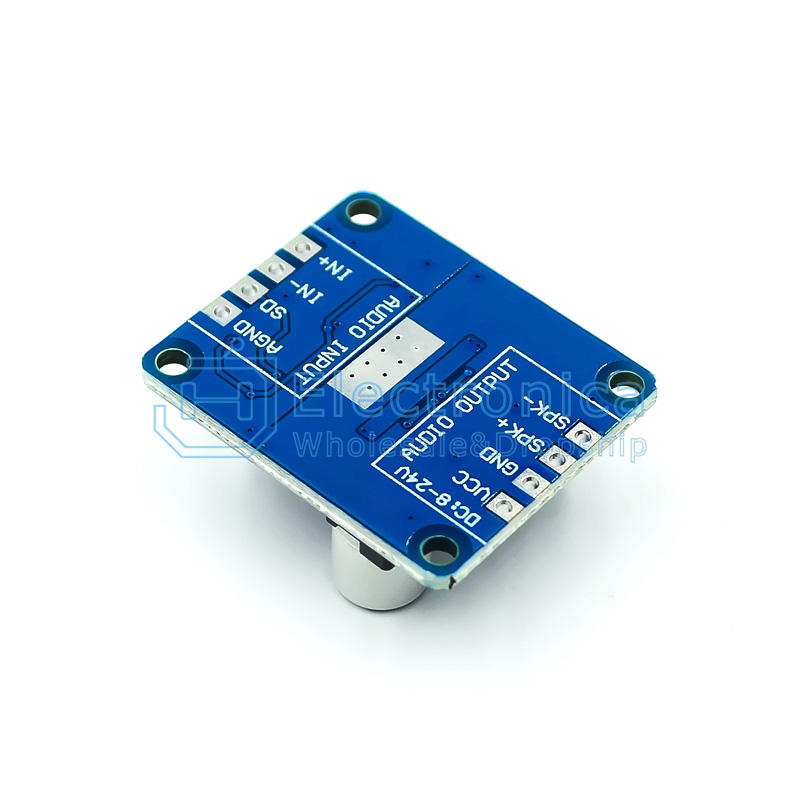

30W Digital Power Amplifier Module

SKU : YXS1617 Brand :

Price : $ 1.08

100 +: $1.08500 +: $1.081000 +: $1.08

Quantity :

- +

ADD TO CART
