Description

Power supply: DC12-48V
Maximum current 20A, Short-time power 1000W
Long working power 500-800W
- Tested 53V power supply when working properly
Inside diameter of the coil: 40mm
Height of the coil: 50mm
24V input with no load current of 3A
48V input with no load current of 6A

Note：
1.The kit contains a full set of driving circuit elements and brass.
2.Buyers need to bring their own power and cooling unit.

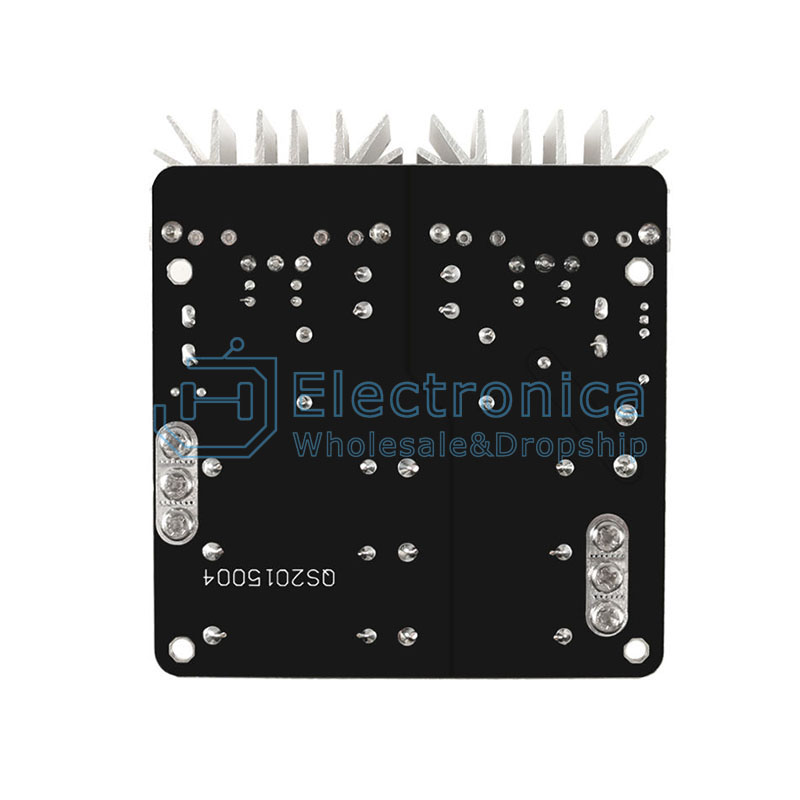

3.The circuit board using double-sided fiberglass board,mainly copper traces are used to widen use the entire back surface of the resonant circuit common continuous work,please add a fan to blow down from above to the resonance capacitors and other components cool.
4.The use of switching power supply Please note that due to high power are generally slow start function,which just opened hine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V,because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components. So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.
5.The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume(if the heating cylinder, then heating coil diameter less than the diameter of 1/3),or it may be due to overload or burn out the power supply to the circuit.Although this circuit can tolerate 20-30A input current moment, but do not exceed 15A when safe work,you can easily add an ammeter between the power supply and heating driver board but always monitor the current overload.

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

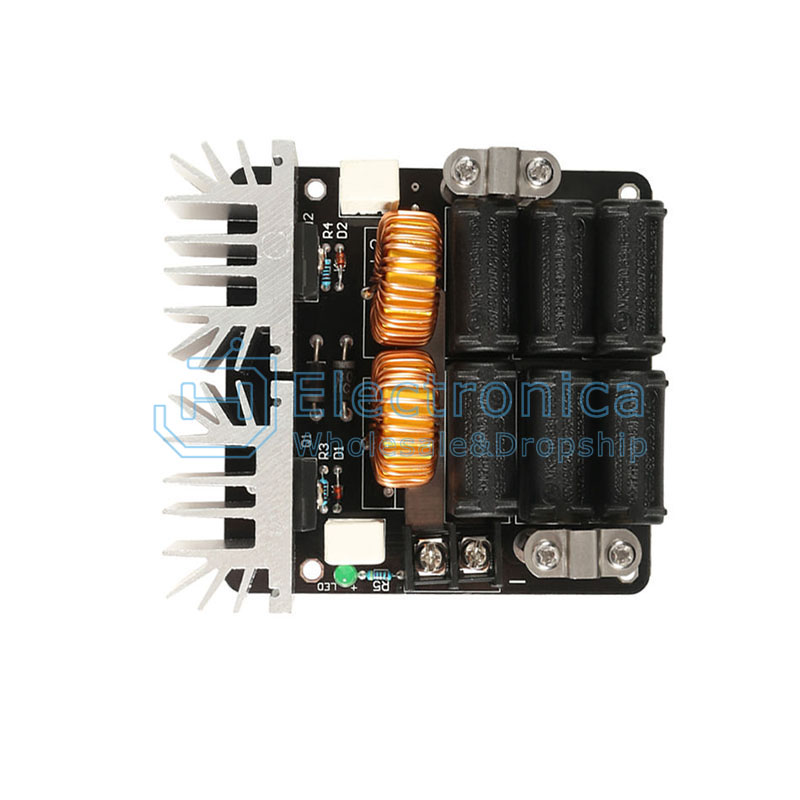

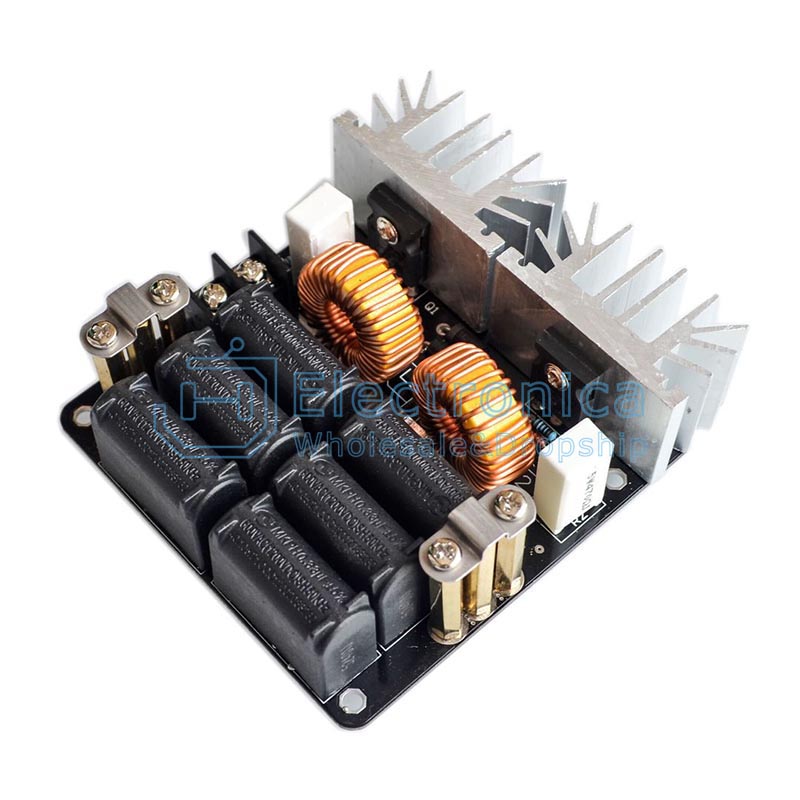

20A 1000W ZVS High Frequency Induction Heater

SKU : YXK437 Brand : JH Stock

Price : $ 13.23

100 +: $13.23500 +: $13.231000 +: $13.23
