Description

Input Voltage:DC 3.3V~5V

Input current up:50mA
Operating current:>1mA
Output maximum current:50mA(the input current must be 15-20mA)
The output level of the single-chip microcomputer does isolation when driving the motor and other inductive devices,anti-interference,and protects some circuits of the single-chip microcomputer
The output level of the single-chip microcomputer is low,and the driving voltage of the driven module is high for level matching
Used as high voltage detection
Amplify the current

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

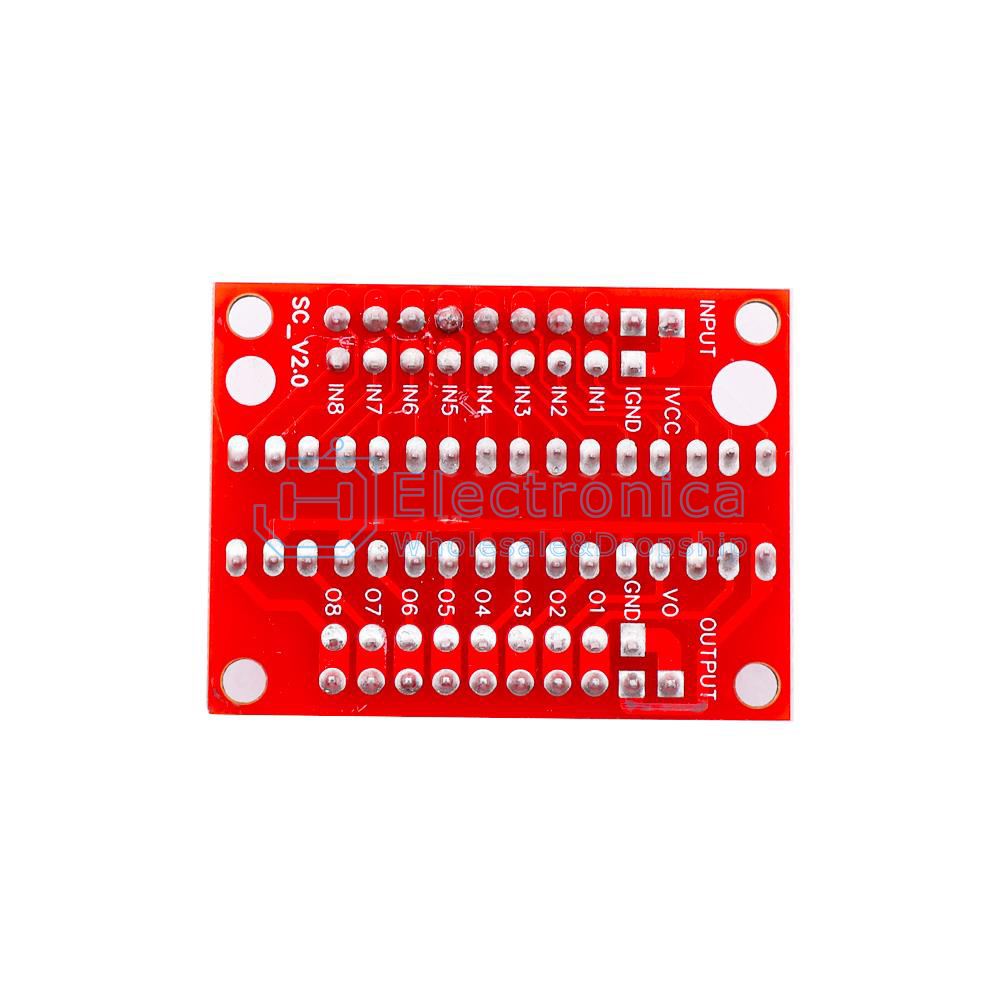

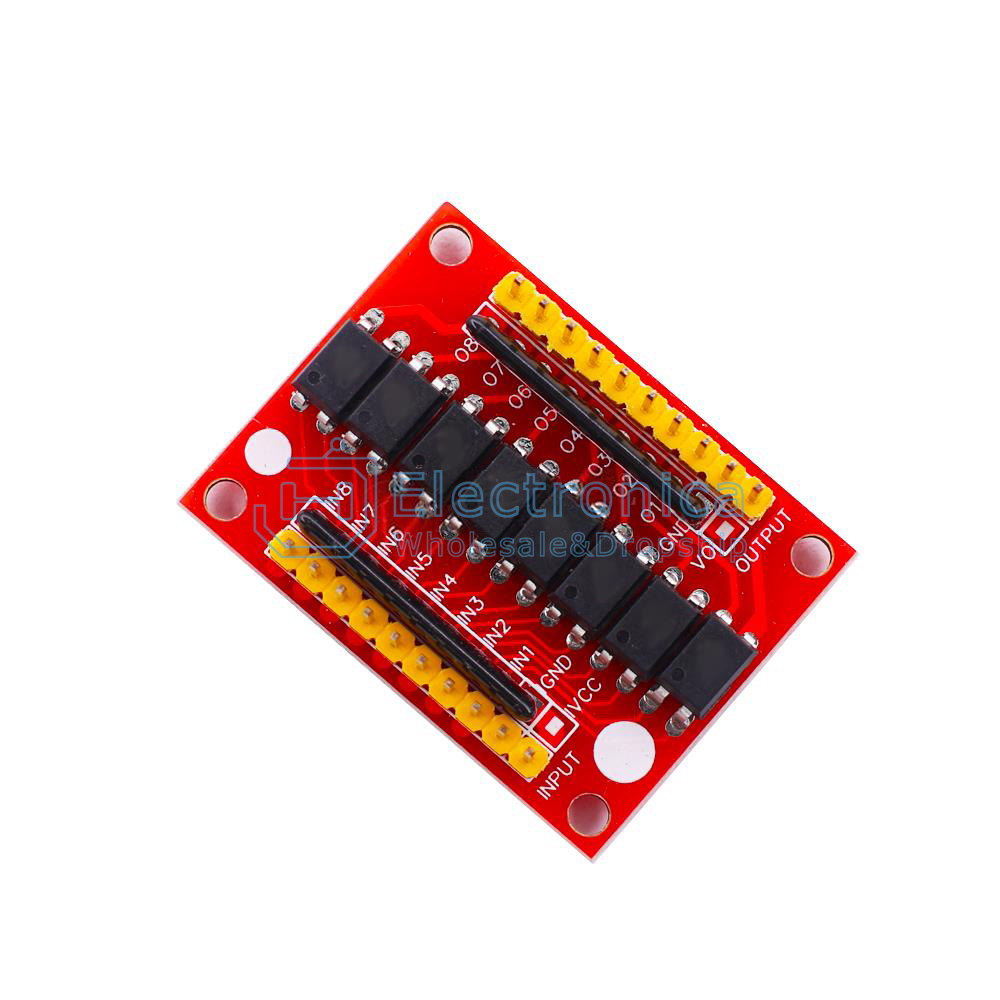

8-Way Optocoupler Isolation Board

SKU : YXS1390 Brand :

Price : $ 3.04

100 +: $3.04500 +: $3.041000 +: $3.04

Style：

Quantity :

- +

ADD TO CART
