Description

1. The module is connected according to the definition, the supply voltage is 7-36V (if the output is to 10V, the supply voltage must be greater than 12V)
2. After power on, the D2 light should be bright, otherwise please check the line connection. Board with reverse connection protection, reverse connection not burning.
3. When the current input is minimum (0mA or 4mA), adjust the ZERO potentiometer, so that the output of VOUT is minimum (0.0V or other voltage)
4. When the current input is the maximum (20mA), adjust the SPAN potentiometer, so that the VOUT output is the maximum value (3.3V or 5V or 10V, when the input is 4-20mA, the minimum output can be 2.5V).

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

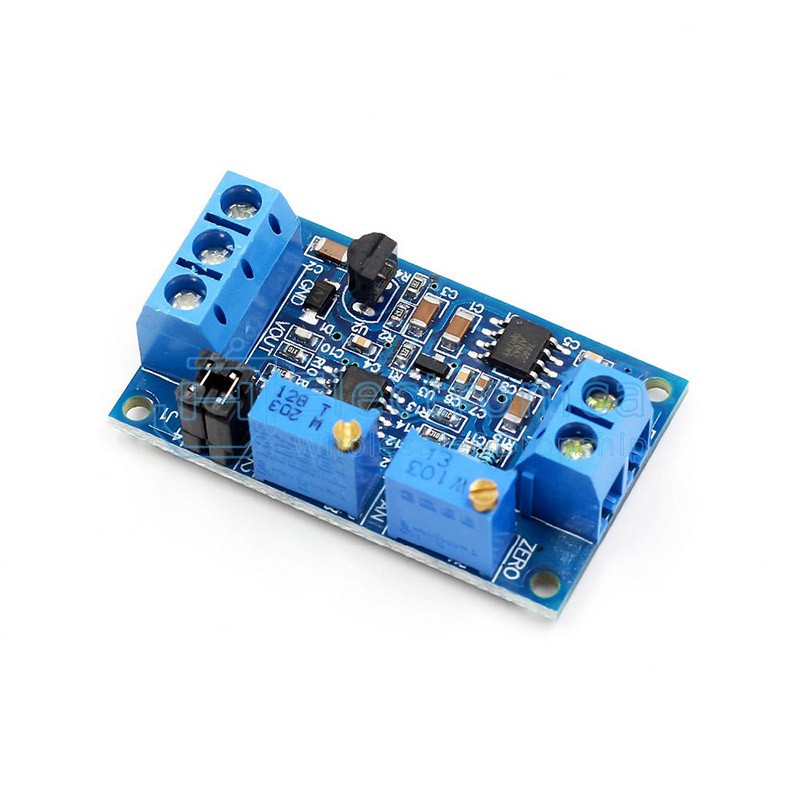

0/4-20mA to 0-3.3V 5V 10V Voltage Transmitter

SKU : YXA238 Brand : JH Stock

Price : $ 0.58

100 +: $0.58500 +: $0.581000 +: $0.58
