Description

Output power:50mW
Audio frequency range:50Hz-18KHz
Transmit Frequency:87.0MHz-108.0MHz for campus broadcasting off,76.0MHz-108.0MHz for campus broadcasting on.
Frequency Adjustment Step:0.1MHz/time(short press on the button),1.0MHz/time(long press on the button)
Modulation mode:Standard FM frequency modulation
Equivalent noise:≥30dB
Supply voltage:DC 3.0V-5.0V
Operating current:35mA
Transmitting antenna:75cm rod antenna
Transmitting distance:FM transmitter module connected to the 75cm standard rod antenna,radio with Dickson PL-660,open field coverage radius of 100 meters.(Note: Transmitting distance is for reference only, due to the use of different environments vary slightly)
Product Features
1.Using advanced digital audio signal processing technology(DSP) and FM phase-locked loop modulation technology(PLL).
2.LCD display is more intuitive and accurate.
3.Power down automatically memorize the volume and frequency information before power failure.
4.Automatic switching of multiple audio inputs.
5.Adopt high-precision chip quartz crystal to stabilize the frequency.
6.Support serial port command control.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

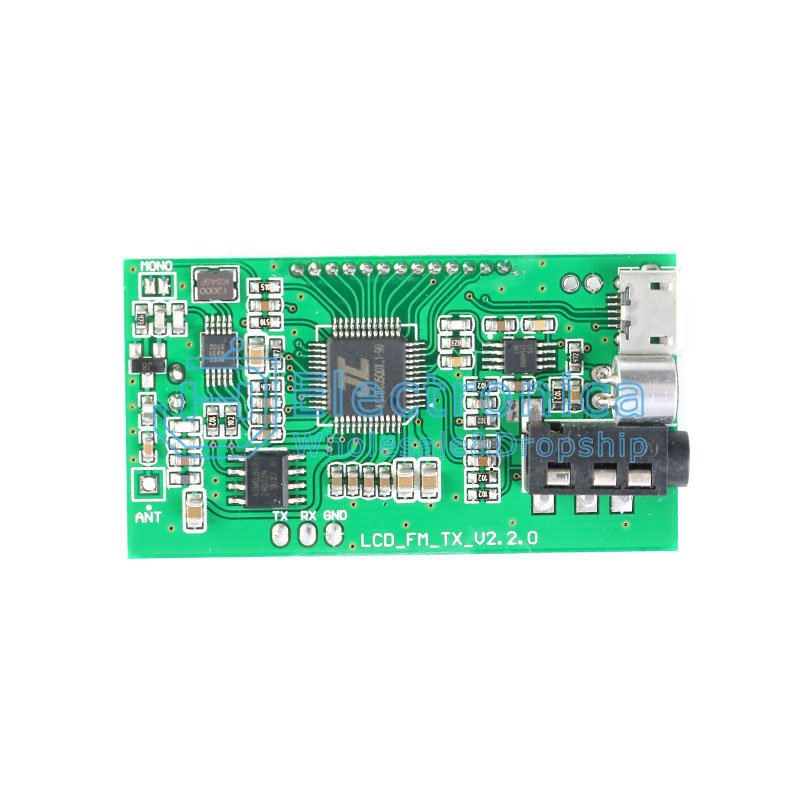

FM Stereo Digital Transmitter Module

SKU : YXS896 Brand :

Price : $ 3.31

100 +: $3.31500 +: $3.311000 +: $3.31
