Description

Input voltage:5.3-32V(limit 35V,4V can be input for step-down,but voltage and current measurement is inaccurate when the input is lower than 5.3V)
Output voltage:1.2-32V(must ensure that the input voltage is higher than the output voltage,the small voltage difference between the two is 0.8V)
Output current:it can work stably at 8A for a long time,and can reach 12A under enhanced heat dissipation
Output power:natural heat dissipation 120W(within 8A),enhanced heat dissipation 160W
Voltage display:resolution 0.05V,range 0-32V
Current display:resolution 0.01A,range 0-12A
Conversion efficiency:about 96%
Working current:about 25mA
Soft start:yes(very high power band load module may fail when starting)
Input reverse polarity protection:yes
Output anti-backfill:none
Short circuit protection:yes
Size:82*52*32mm
Weight:80g

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

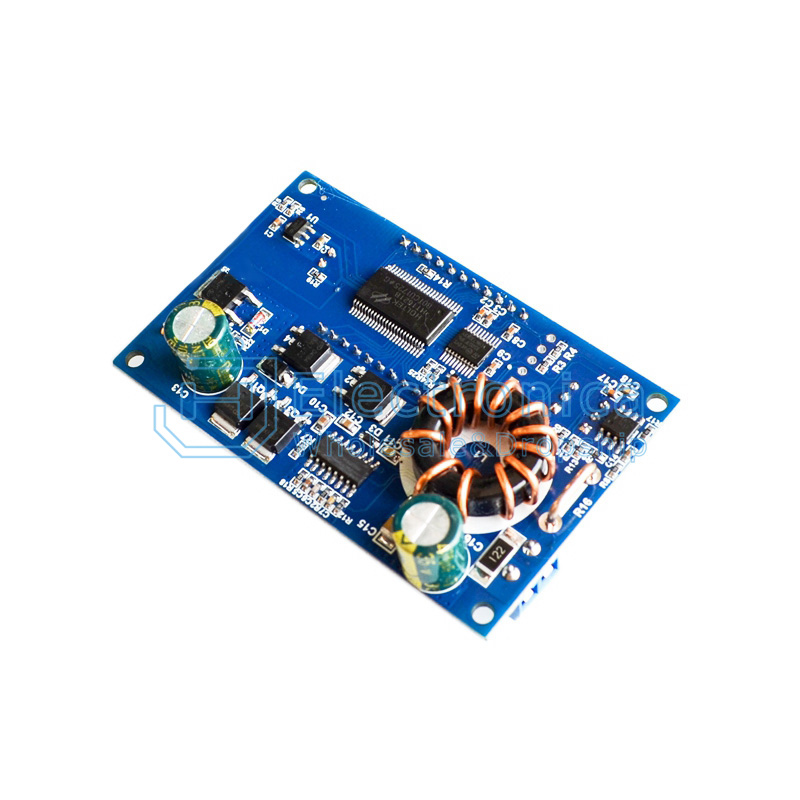

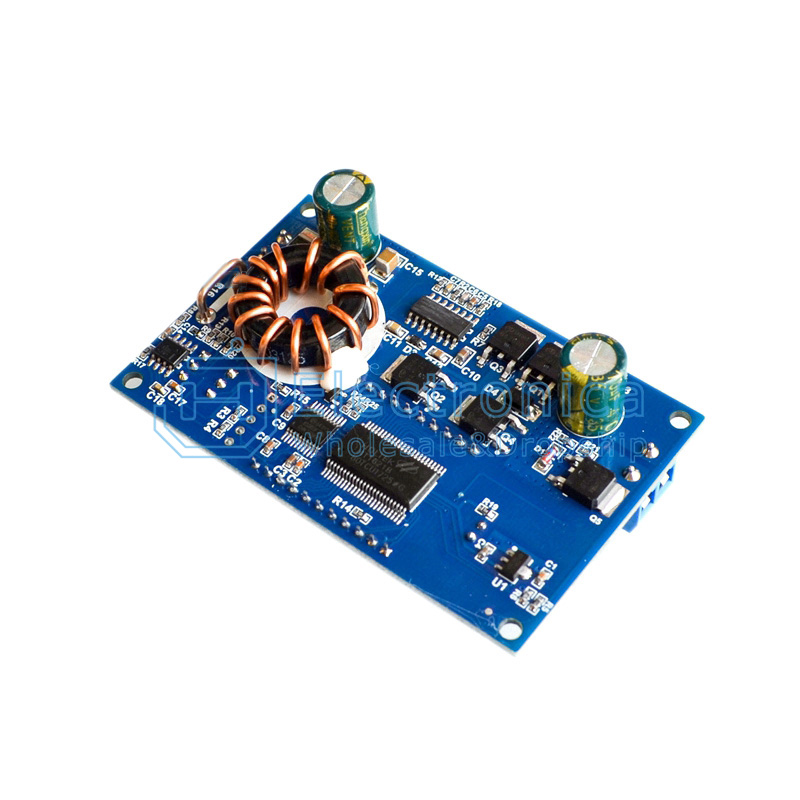

12A Adjustable Step Down Power Supply Module

SKU : YXS1555 Brand :

Price : $ 7.00

100 +: $7.00500 +: $7.001000 +: $7.00
