Description

Product Features:
1.Input/output can be inserted into the terminal,reserved holes for welding wire hole use.
2.Fixed hole straight through the 3.2mm.
3.Gglobal input voltage:85-264V AC or 110-370V DC.
4.Low output ripple noise,dual output,high accuracy of the control path output voltage.
5.Input and output high isolation.
6.Over-current protection,short circuit protection and temperature protection.
7.Output built-in dual LCp-type filter,without external circuit.
AC Input:85-264VAC
DC Input:110-370VDC
Frequency range:47-63Hz
Input Current:1/115VAC,0.5/230VAC

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

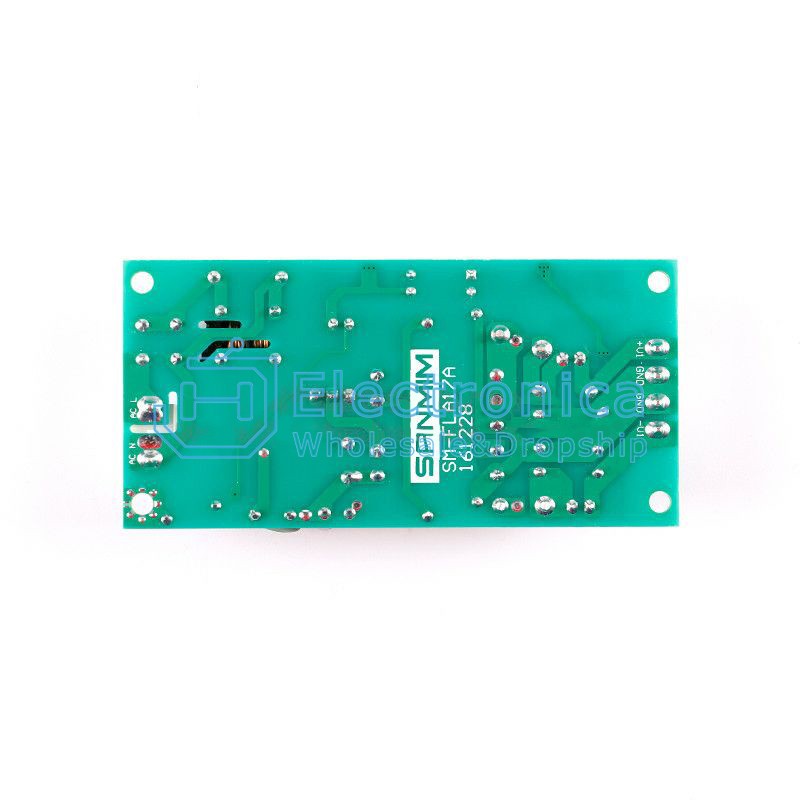

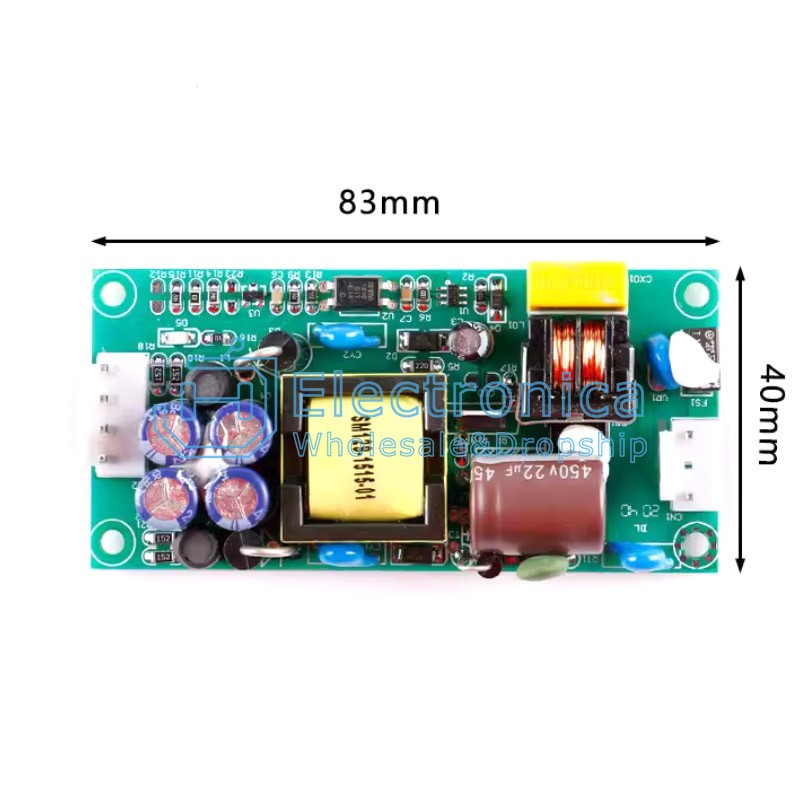

SM-FLA17A(05V)17W Dual Switching Power Supply Module

SKU : YXS830 Brand :

Price : $ 3.50

100 +: $3.50500 +: $3.501000 +: $3.50
