Description

Working voltage: 6-30V
Static current: 20mA
Working current: 50mA
Service life: >100000 times
Working temperature: -40~85℃
Size: 6.2*3.8*1.7cm
Output capacity: capable of controlling devices up to 30V DC 5A or up to 220V AC 5A
Equipped with optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters for permanent memory after power outage
The relay output is a passive contact that is not energized and controls the opening and closing of a circuit
Features:
1. Wide voltage power supply (6-30V) supports micro USB 5.0V power supply, making it very convenient to use
2. The interface is clear and simple, powerful, and easy to understand, almost meeting all your needs
3. It has a one button emergency stop function (STOP key) with reverse connection protection, and reverse connection does not burn
4. Added a sleep mode, which automatically turns off the display after enabling it without any operation for 5 minutes, Wake up with any button
5. Different OP, CL, and LOP parameters can be set, which are independent of each other and saved separately
6. All set parameters are automatically saved after power down

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

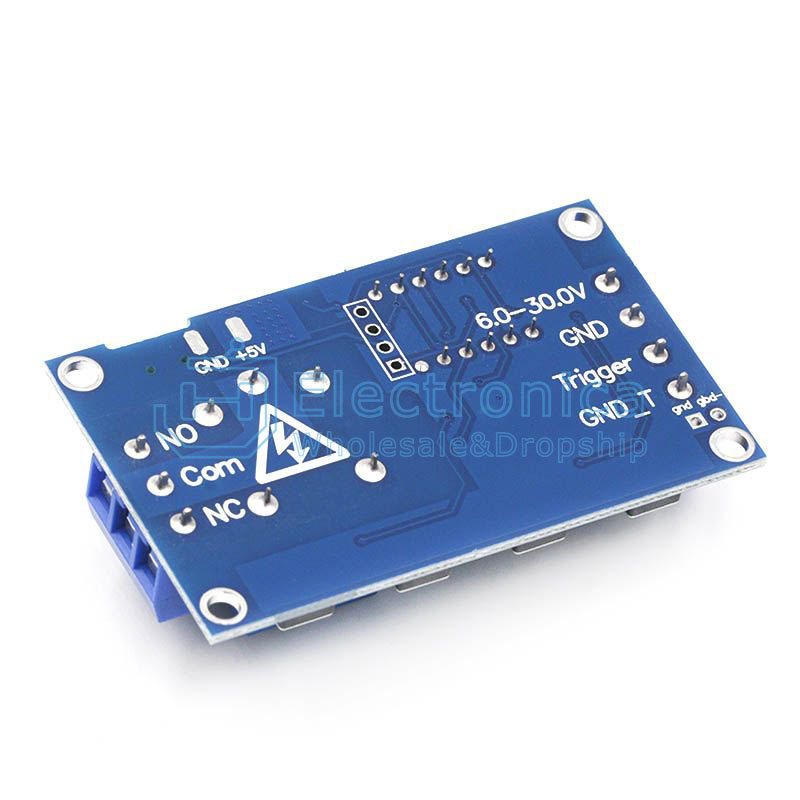

1 Channel Delay Relay Module

SKU : YXS279 Brand : JH Sourcing

Price : $ 0.66~0.94

100 +: $0.66~0.94500 +: $0.66~0.941000 +: $0.66~0.94

Style：

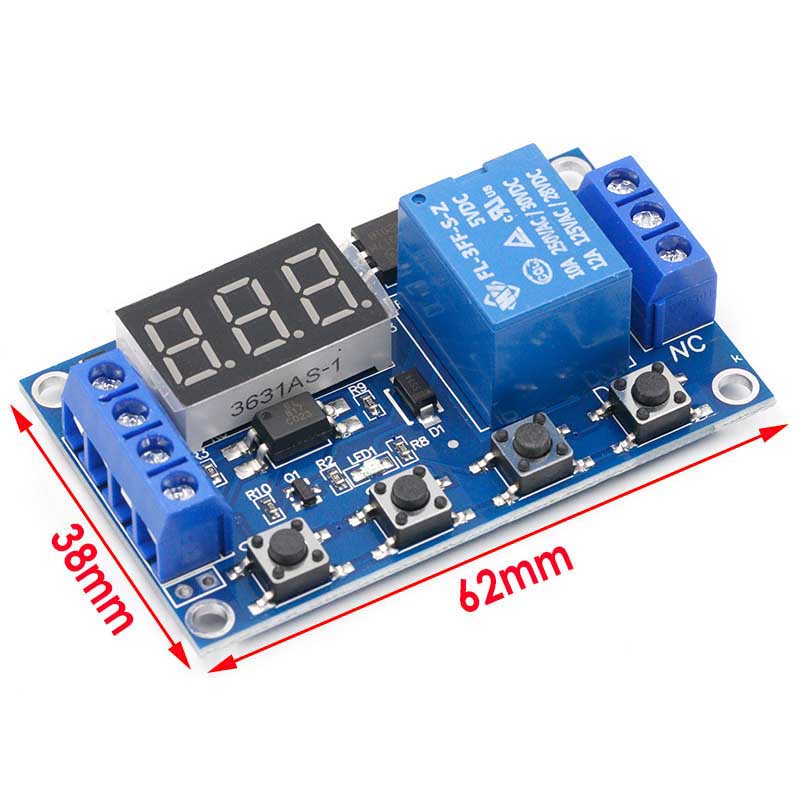

Blue

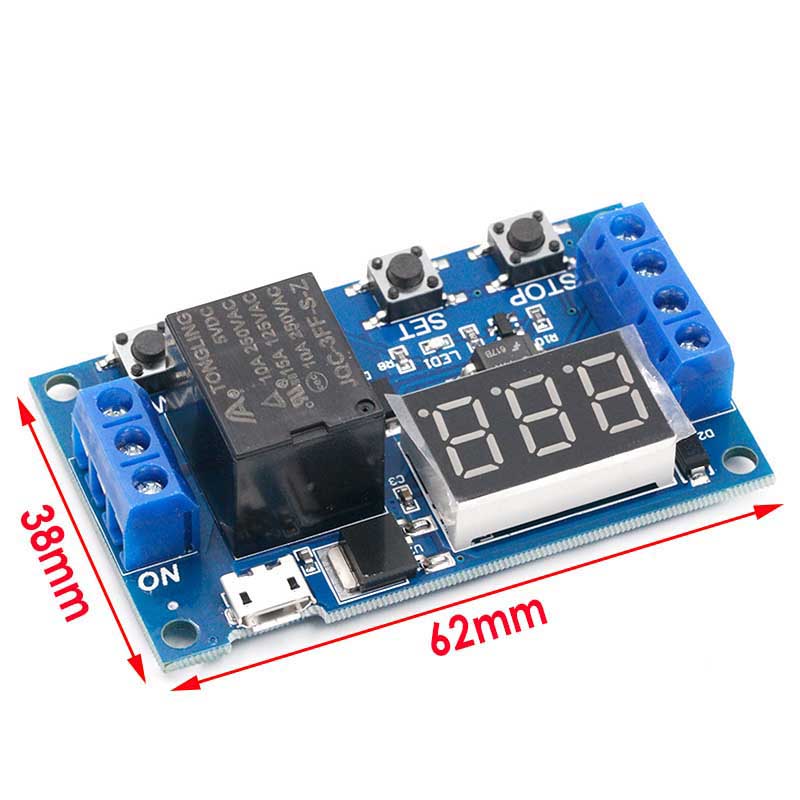

Black
TYPE-C interface
