Description

Power supply voltage: DC4.5-6V (micro USB connector)

Operating Current: less than 70mA
Termination voltage range: 0.5-11.0V
Supported by current: 3.000A 0.001A
Discharge voltage:1.00V-15.00V,resolution 0.01V
Support current:<3.000A,resolution 0.001A
Current measurement error:less than 1.2%+-0.002A

Board size: 50mmX37mm

Single board weight:28g (including copper columns)
Weight of two 5W ceramic resistors:9g
50W resistor weight:27g (including wires)
Battery capacity range:9999Ah (1Ah=1000mAh) When the value is large, it is switched through decimal point shift. When it is below 10Ah, it is displayed as X.XXX. When reaching 10Ah or above,will be displayed XX.XX, And so on

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

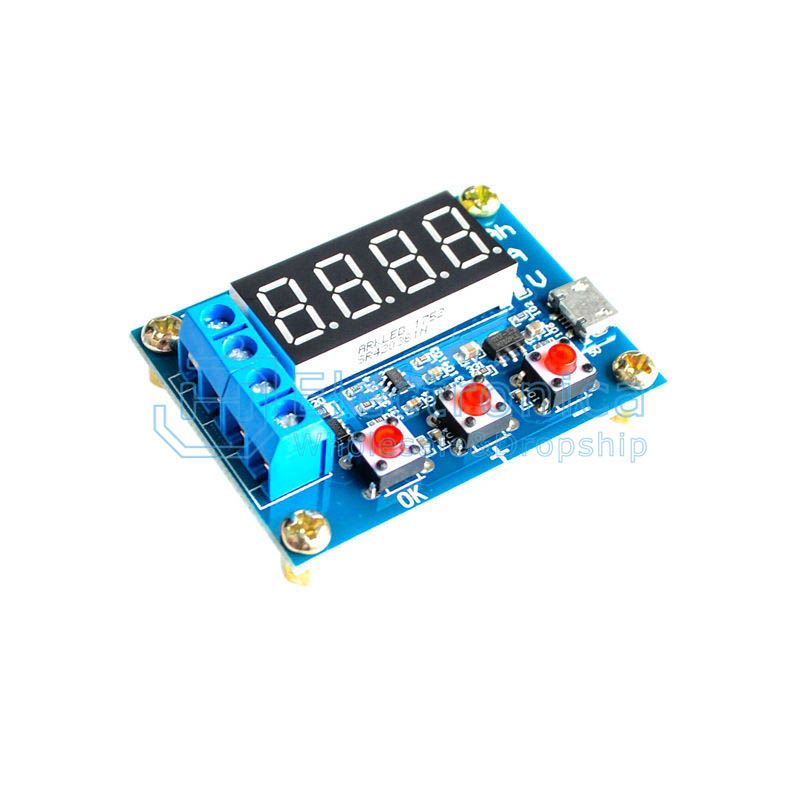

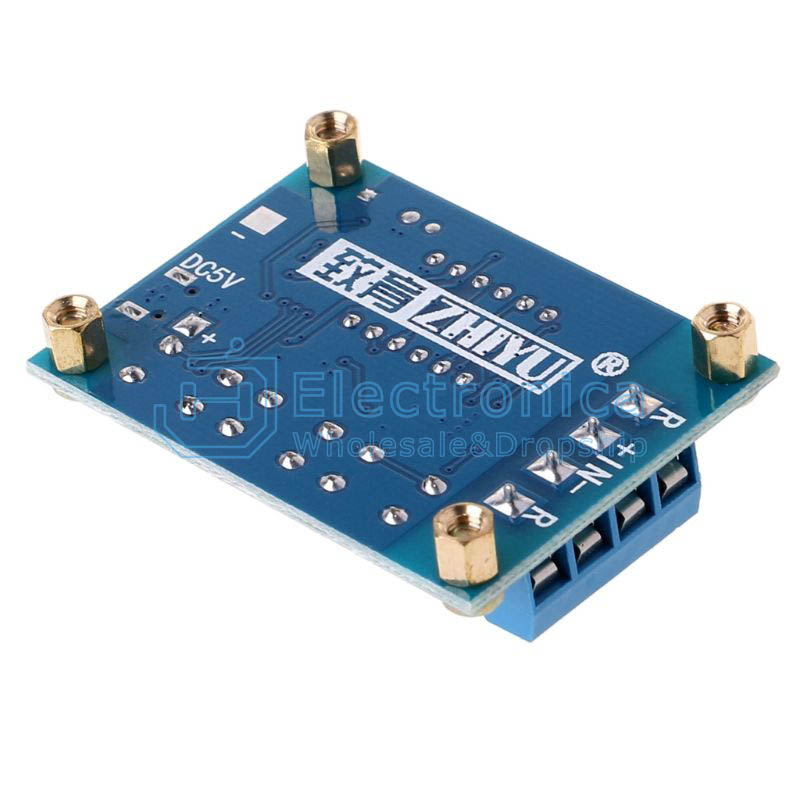

ZB2L3 Lithium Battery Capacity Tester

SKU : YXA456 Brand : JH Stock

Price : $ 3.00~4.49

100 +: $3.00~4.49500 +: $3.00~4.491000 +: $3.00~4.49
