Description

Size:25*17*5mm
Input voltage:5-18V DC power supply(actual 5-12V is appropriate)
Charging status:full and no-load blue light,red during charging

1. Dual / single 8.4V / 4.2V lithium battery charging

2. Built-in power MOSFET, switch mode, low device heat, simple external
3. Programmable charge current, 0.1-2A
4. Programmable precharge current, 10%-100%
5. No need for an external anti-sinking schottky diode
6. Wide operating voltage up to 18V
7. Red and green LED charge status indication
8. Chip temperature protection, over-current protection, under-voltage protection
9. Battery temperature protection, reverse battery shutdown, short circuit protection
10. Switching frequency 400KHz, availabel inductance 20uH and above
11. PWR_ 0N-power, battery-powered switching control
12. Less than 1% charge voltage control accuracy

Absolute maximum rating:
1. Static input supply voltage (vin): 20V
2. BAT: -8.4V~20V
3. BAT short circuit duration: continuous
4. Maximum junction temperature: 120℃
5. Working environment temperature range: -40℃~85℃
6. Storage temperature range: -65℃~125℃
7. Pin temperature (welding time 10 seconds): 260'℃

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

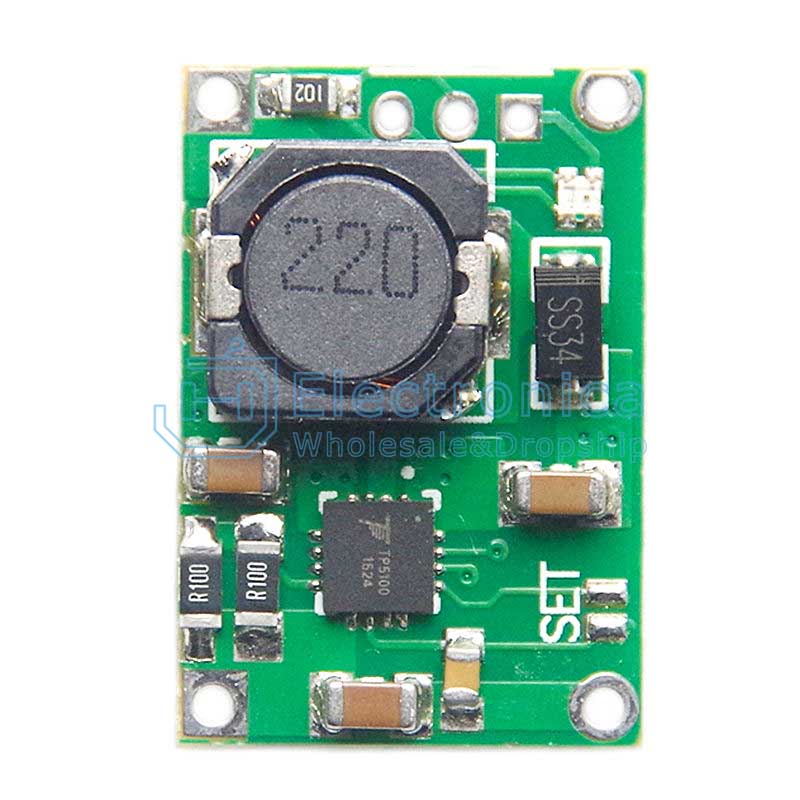

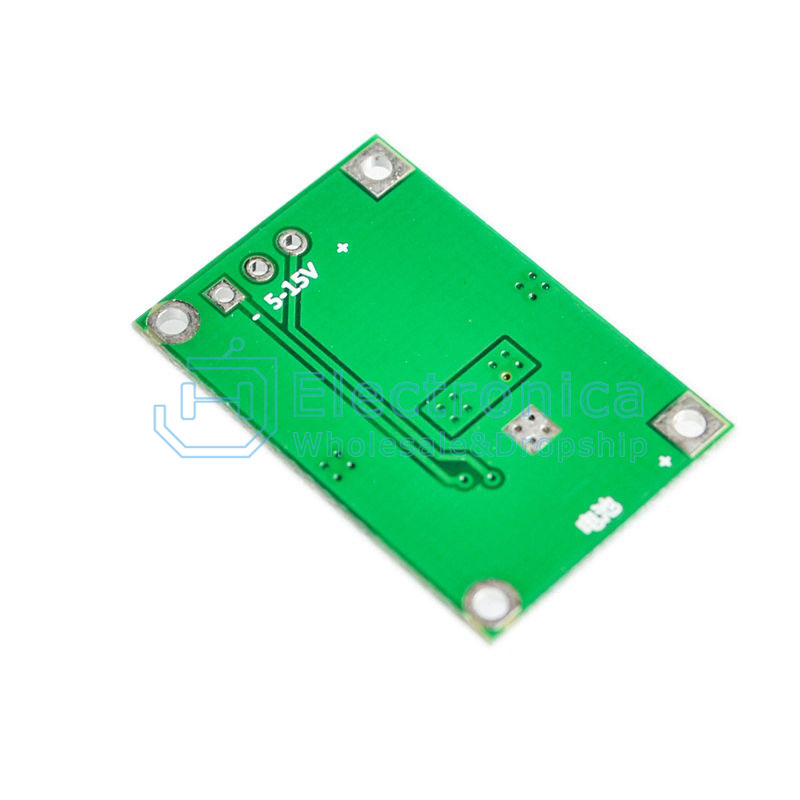

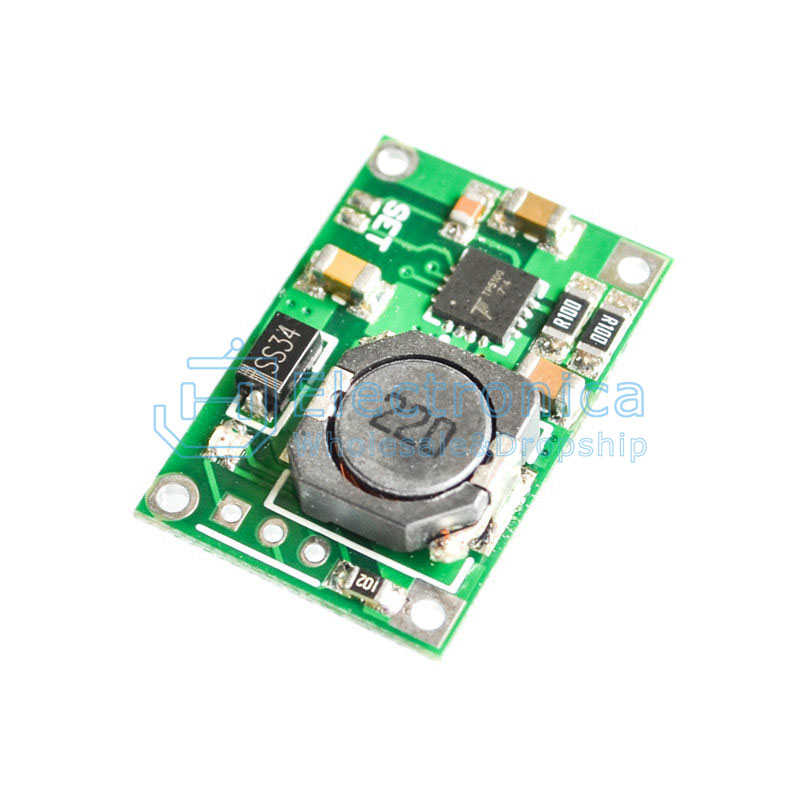

TP5100 4.2V 8.4V 2A Lithium Battery Charging Board

SKU : YXA254 Brand : JH Stock

Price : $ 0.36

100 +: $0.36500 +: $0.361000 +: $0.36

Quantity :

- +

ADD TO CART
