Description
Input voltage:DC 6V-60V
Output voltage:same to input
Control precision:0.1V
Power consumption:<1.5W
Load current:30A(Max)
Work mode:charge and discharge mode
Appropriate types:Lead-acid battery,Lithium battery
Work temperature:-25℃~80℃
Work humidity:5%~90%RH

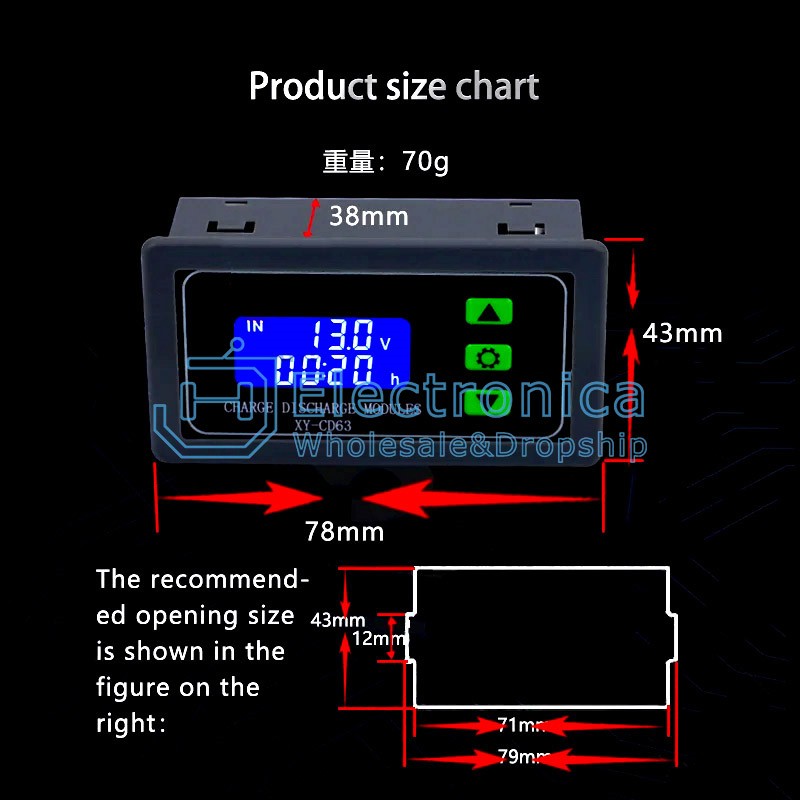

Module size:79*43mm
Weight:
CD63 with shell:70g
CD63L:51g
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
CD63/CD63L 30A Battery Charging Control Module
SKU : YXS1142 Brand :
style:

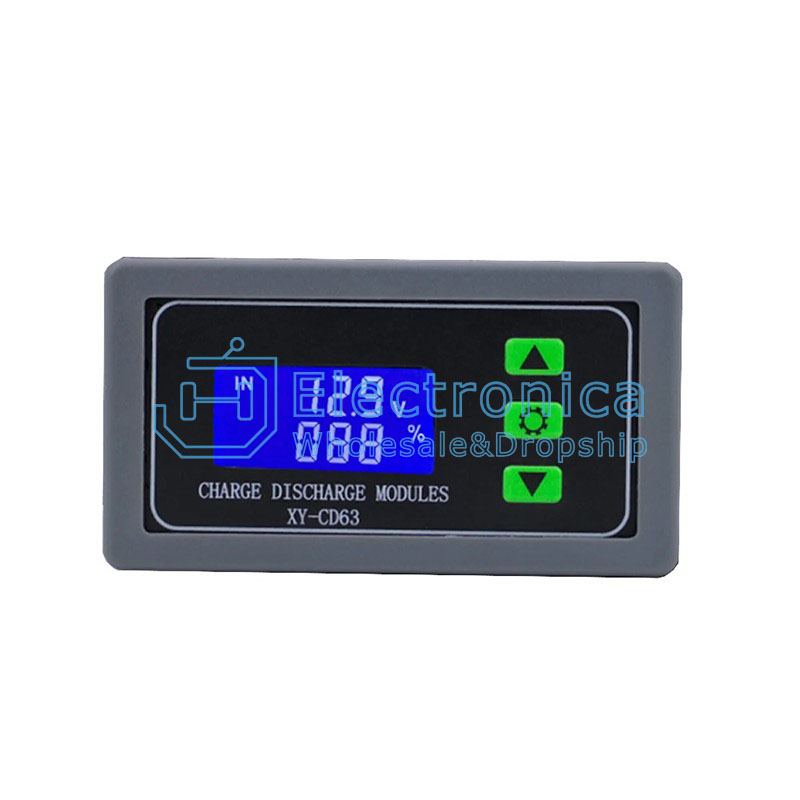

CD63 with shell

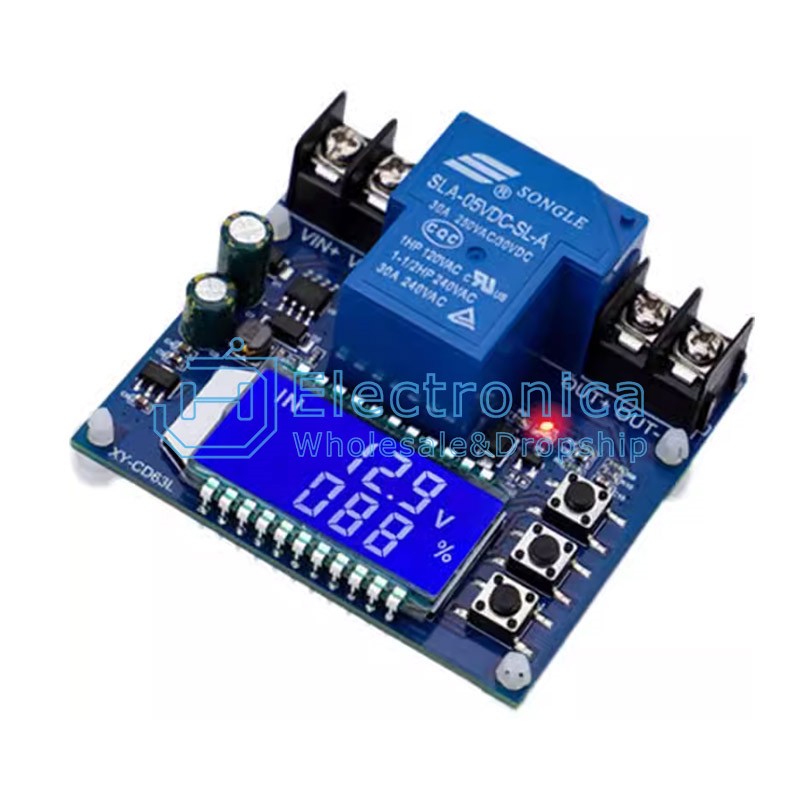

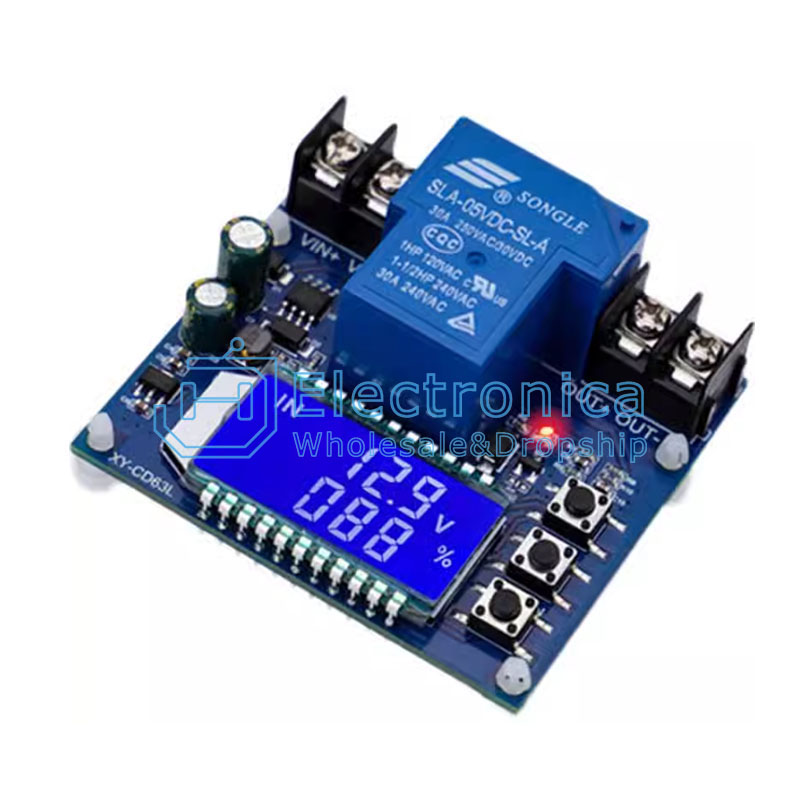

CD63L without shell
