Description

Charging mode:
By setting the upper limit voltage UP and lower limit voltage dn; When the battery voltage is ≤ the lower limit voltage dn, the relay conducts and the charger begins to charge the battery; When the battery voltage is ≥ the upper limit voltage UP, the relay will disconnect and complete an automatic charging; The relay is conducting and IN flashes, indicating that it is in charging and discharging mode OUT
By setting the upper limit voltage UP and lower limit voltage dn; When the battery voltage is ≥ the upper limit voltage UP, the relay conducts and begins to discharge; When the battery voltage is ≤ the lower limit voltage dn, the relay will disconnect and complete an automatic discharge function; The relay is conducting and OUT flashes, indicating that it is discharging
Function Description:
1. Calculation of voltage percentage: Battery voltage/(upper limit voltage - lower limit voltage)
2. Key functions:
UP button: Short press to switch display% and time, long press for 5 seconds to switch modes, charging mode: IN, discharging mode: OUT
SET button: Short press to view the current set parameters; Long press the SET button to enter the parameter setting interface, set UP: voltage upper limit, dn: voltage lower limit, OP: conduction time, dOP: delayed conduction time (0-999 seconds), and FOP: forced conduction time (0-10 seconds) in discharge mode
Down button: Short press to turn off/on the relay enable (emergency stop function). After turning off, the LCD will display OFF and the relay will disconnect

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

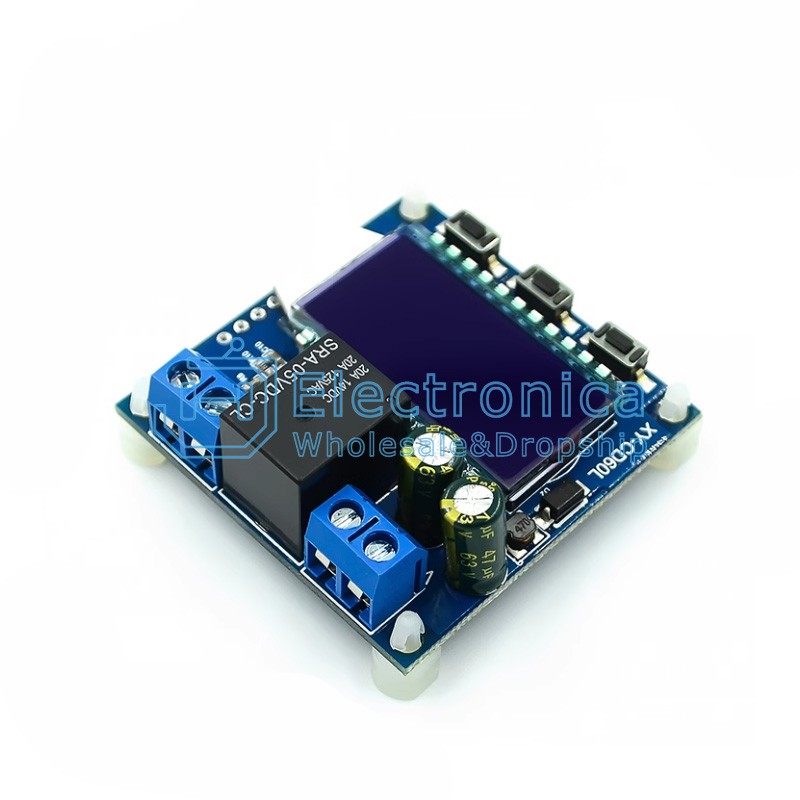

XY-CD60L,Battery Charging Control Module

SKU : YXC1397 Brand :

Price : $ 3.17

100 +: $3.17500 +: $3.171000 +: $3.17
