Description

Kit Parameters:
Supply voltage:DC9V
Board size:80*60mm

Function Description:
This infrared reversing radar has the characteristics of simple circuit structure, low cost, and stable circuit operation, and is widely used in various ranging situations. The circuit uses infrared emission tubes and infrared receiver tubes as the core components of the sensor circuit, including NE555 and operational amplifier LM324. The NE555 forms a multi resonant oscillation circuit to emit infrared wave signals, while the LM324 is mainly used to amplify the infrared received signal and form a voltage comparator circuit. The LED is used to indicate the range of reversing distance

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

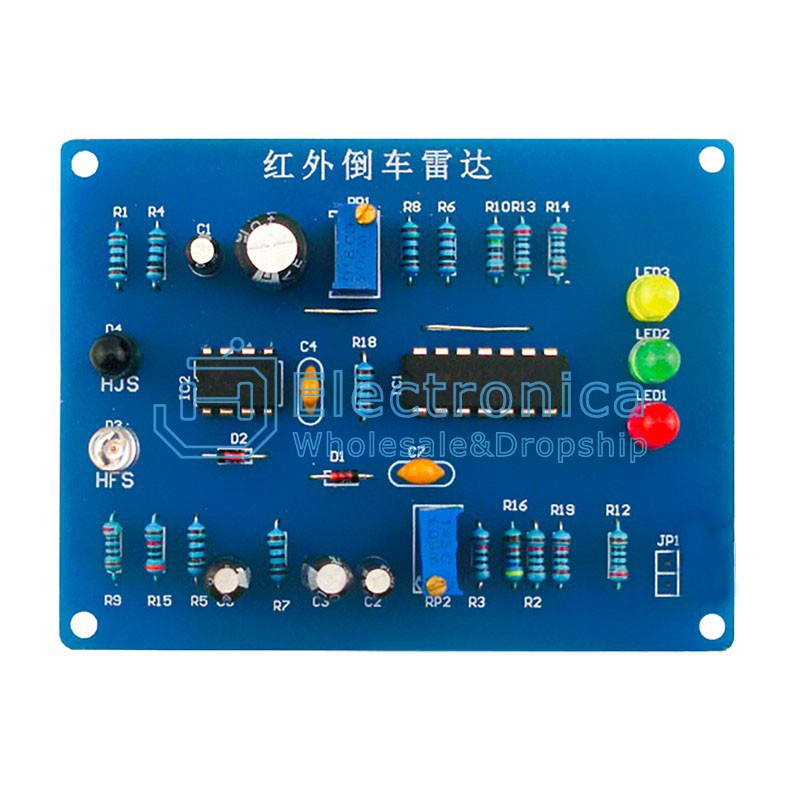

Infrared Reverse Radar Kit

SKU : YXS1243 Brand :

Price : $ 0.32~1.02

100 +: $0.32~1.02500 +: $0.32~1.021000 +: $0.32~1.02

Style：

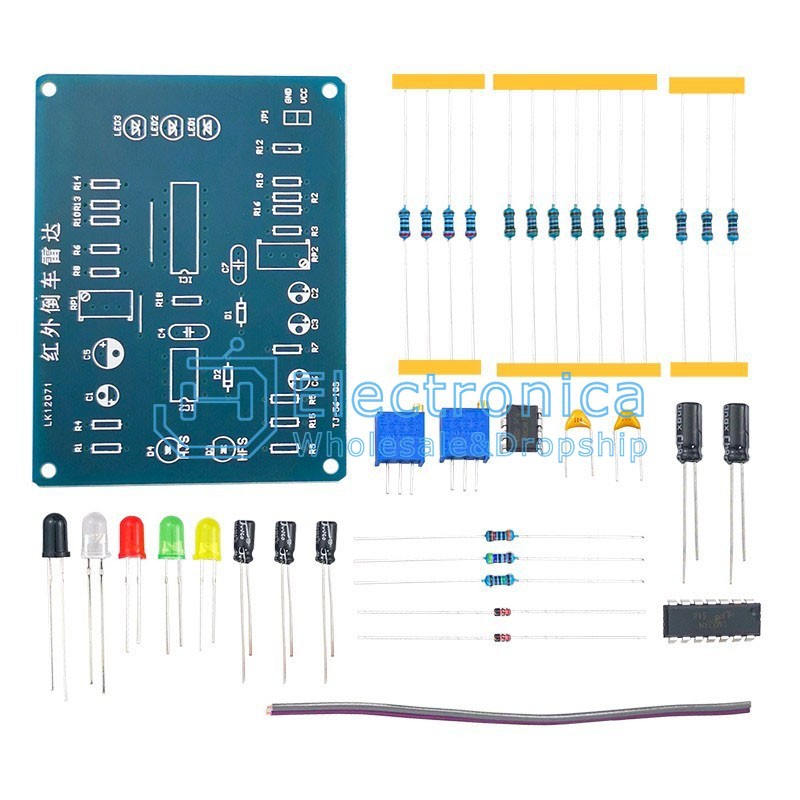

Kit

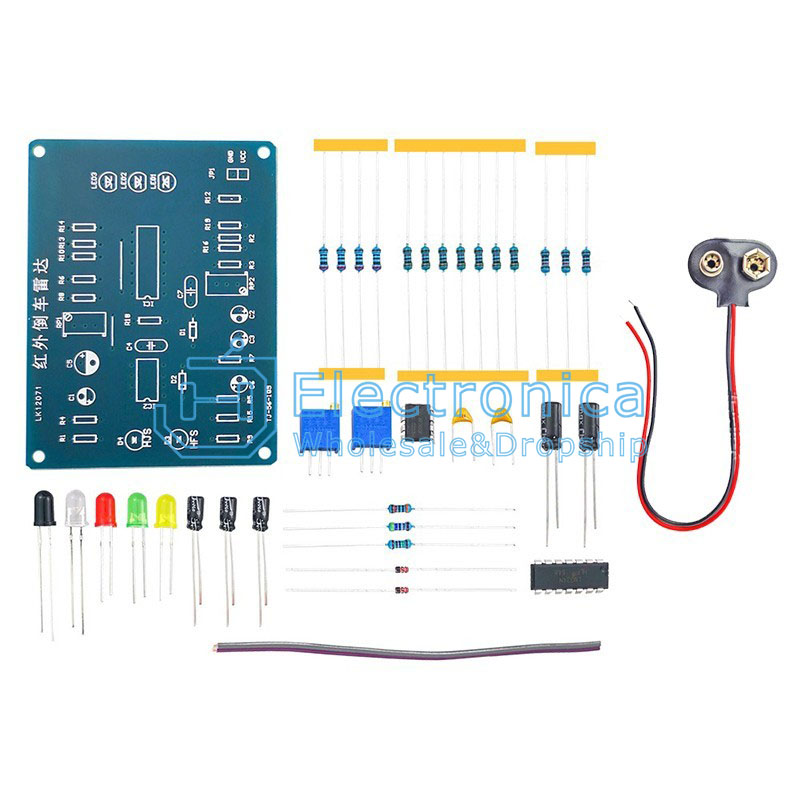

Kit+9V battery buckle

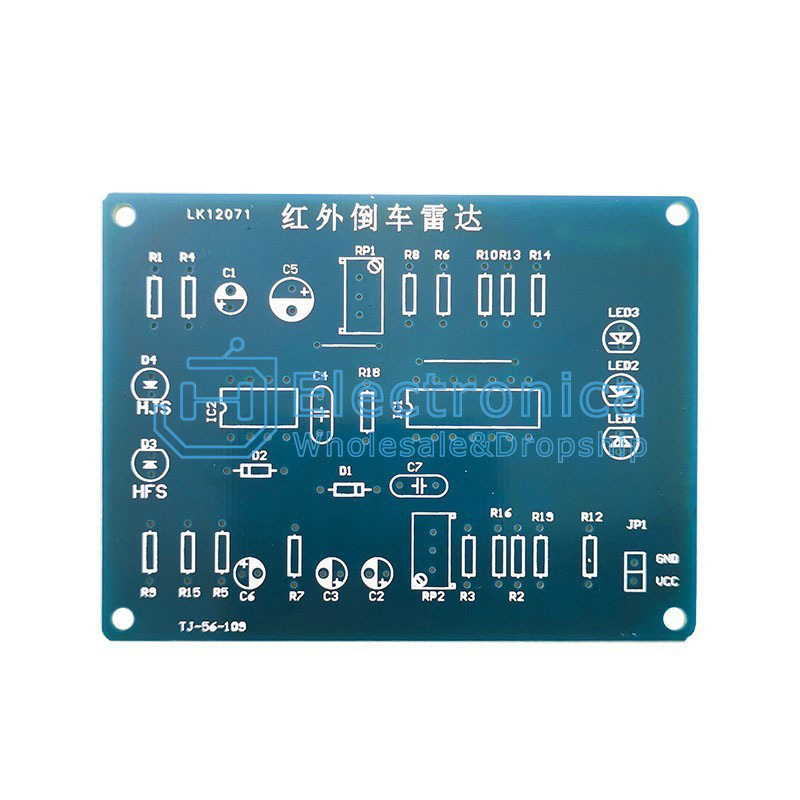

PCB board(without components)

Quantity :

- +

ADD TO CART
