Description

Working voltage:DC 9V
Case size:88*88*26mm
Circuit size:81*81mm
Resistance measurement resolution:0.1Ω
Resistance measurement:50Ω
Capacitance measuring range:25pF-100mF
Inductance measuring range:0.01MH-20H
Testing time:about 2s
Features:
1.One-button measurement operation will automatically turn off the power supply after a delay.the turn-off current is only 20 nA,supporting battery operation.
2.Automatically detect NPN and PNP bipolar transistor,N,P channel MOSFET,JFET field effect transistor,diode,double diode,thyristor,resistance,capacitance,inductance.Automatically detect pin definitions.
3.Measure the current amplification factor (B) and the conduction voltage (UF) of the bipolar transistor.Darlington transistor can be identified by high threshold voltage and high current amplification factor.
4.It can detect the protection diode inside the bipolar transistor and MOSFET and display it on the screen.
5.Measure the threshold voltage and gate capacitance of MOSFET.
6.It supports the measurement of two resistances, and the potentiometer can also measure.If the potentiometer is adjusted to one end of it,the tester cannot distinguish between the middle and two ends of the pins.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

M8 Transistor Tester Kit

SKU : YXC1196 Brand :

Price : $ 10.24~13.66

100 +: $10.24~13.66500 +: $10.24~13.661000 +: $10.24~13.66

Style：

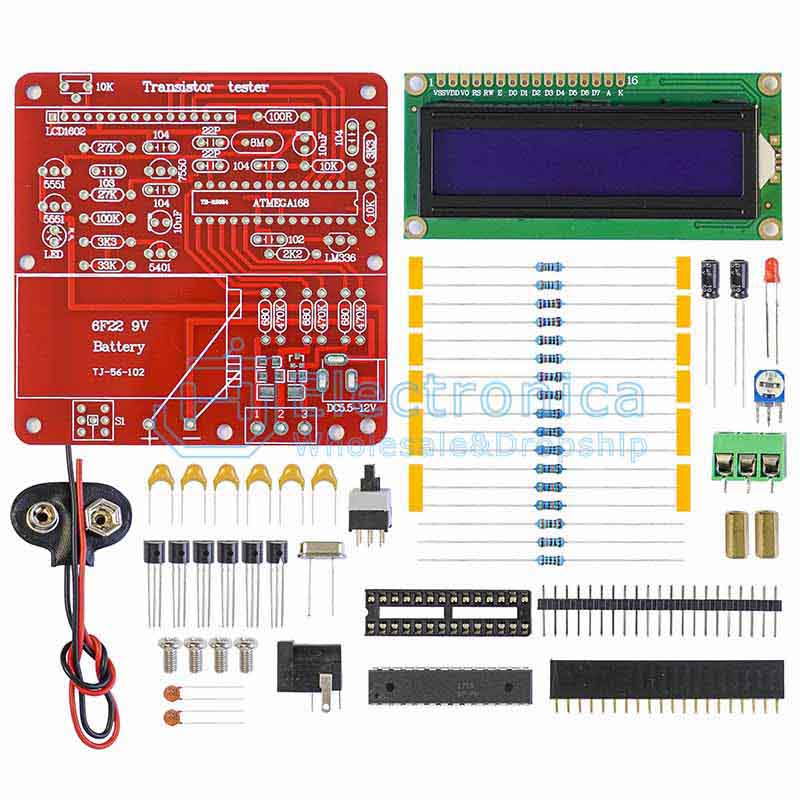

Kit

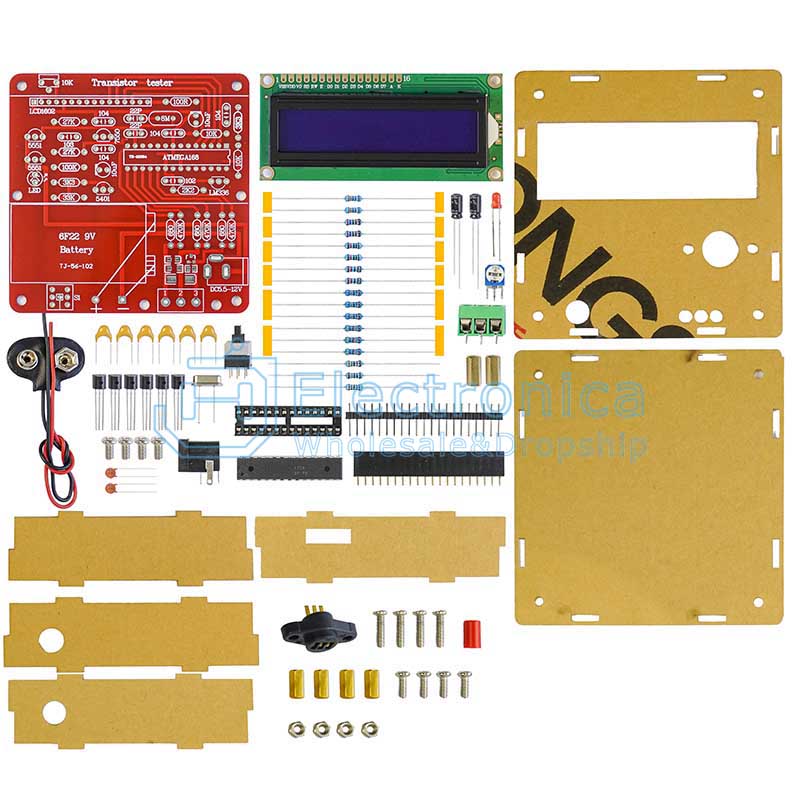

Kit+acrylic case

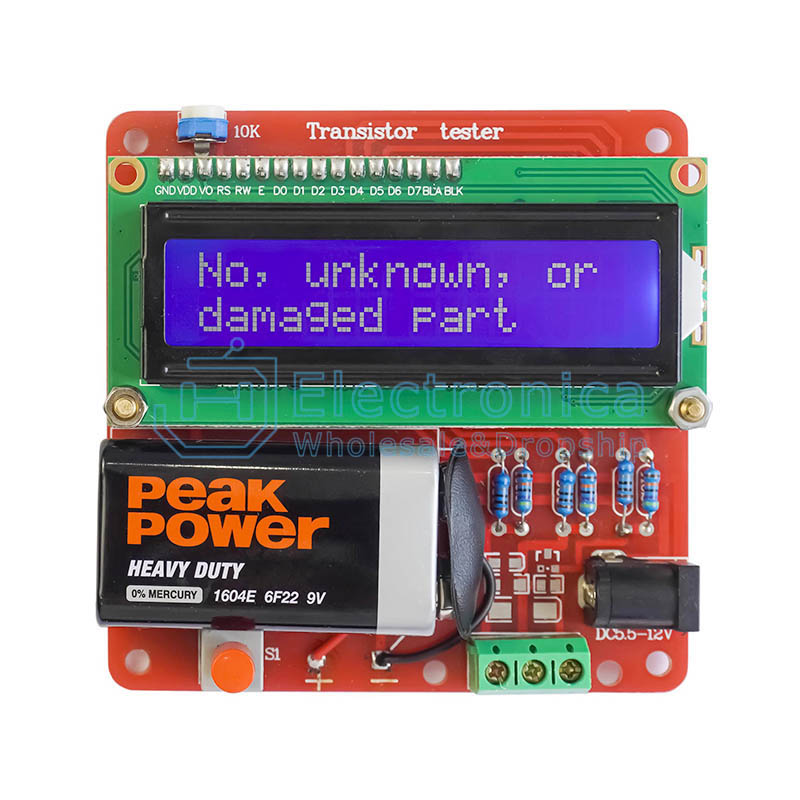

Assembly without case
