Description

Power Supply: 8-24V
Type: XY-AP15H
Precautions for use:
1. Use the power amplifier board as far away as possible from the WIFI signal (router)
2. The recommended power supply voltage is DC 8~24V, if it exceeds 26V, the chip will be burnt.
3. When connected to a 4Ω speaker, the power supply does not exceed 12V, and when connected to an 8-ohm speaker, the power supply does not exceed 24V.
4. The power supply current is recommended to be above 2A.
5. The working power of the module exceeds 20W*2, and a heat sink is required
6. The speaker cable should not be too long, and ensure that it is suitable within 1 meter
7. Pay attention to static electricity protection. Before touching the power amplifier board, you need to release the static electricity on your hands to avoid static electricity from breaking down the chip. The Bluetooth chip is more sensitive to static electricity.
8. It is recommended to adapt the speaker with a rated power of 30W and above to avoid the speaker from heating and burning

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

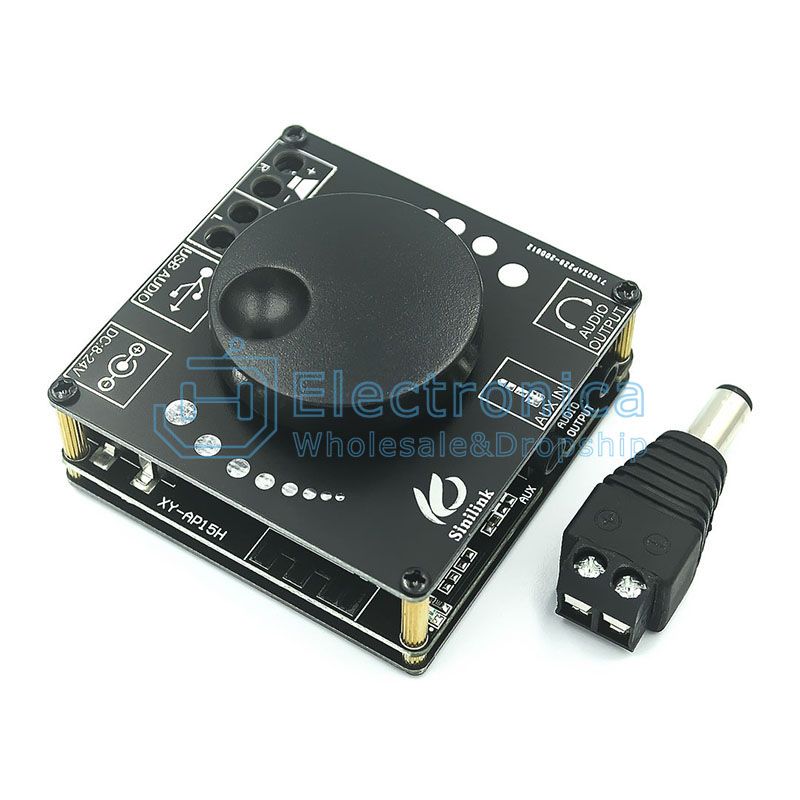

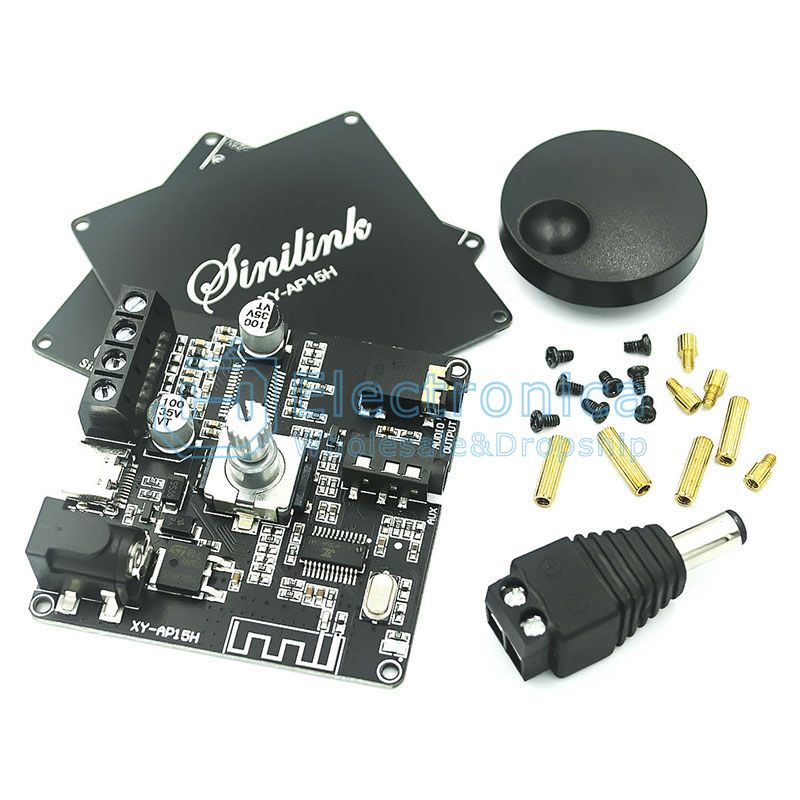

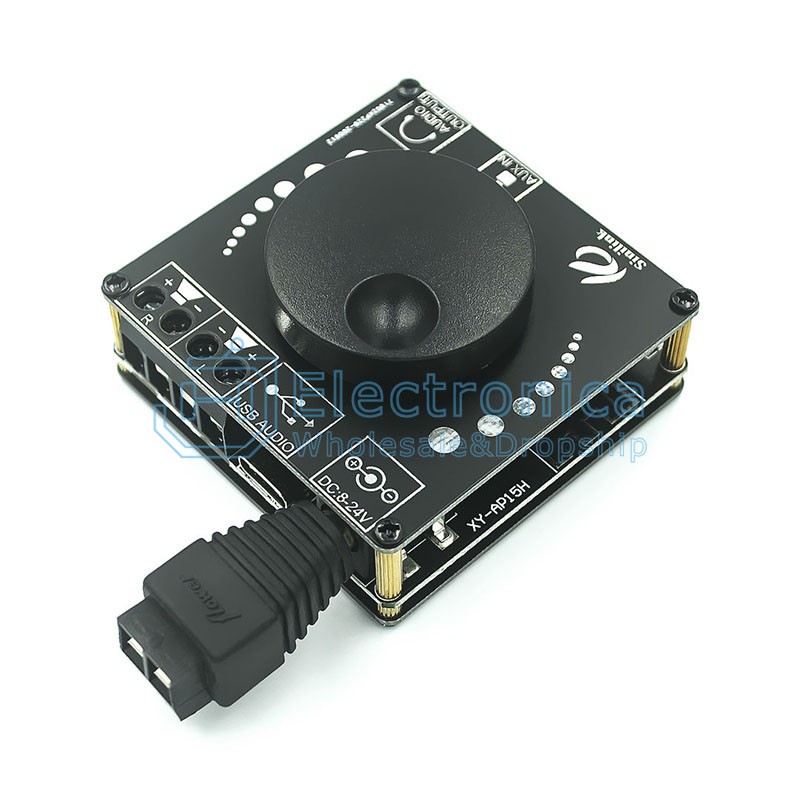

XY-AP15H 10W/15W/20W Stereo Bluetooth Power Amplifier Board

SKU : YXC324 Brand : JH Stock

Price : $ 3.56

100 +: $3.56500 +: $3.561000 +: $3.56
