Description

The MAX4466 is a micropower operational amplifier, optimized for use as a microphone preamplifier. They provide an ideal combination of optimized gain bandwidth products and supply current, as well as low voltage operation in an ultra-small package. The MAX4466 has gain stability, requiring only 24μA of supply current to provide a 200kHz gain bandwidth. After decompression, a small stable gain of +5V/V can be achieved and 600kHz gain bandwidth product is provided. In addition, these amplifiers also have rail-to-rail output, high AVOL, and excellent power supply rejection and common mode rejection ratio, suitable for working in noisy environments. It is widely used in cellular phones, digital repeaters, earphones, hearing aids, microphone preamplifiers, portable computers, and voice recognition systems.
Features and advantages:
Power supply voltage: + 2.4V to + 5.5V (can be directly connected to the main board of the development board such as STM/ARDUNIO/Raspberry Pi)
Power rejection ratio: 112dB
Common mode rejection ratio: 126dB
AVOL: 125dB (RL = 100kΩ) rail-to-rail output
Quiescent power supply current: <24μA
Gain bandwidth: 600kHz
Size: 20.8MM*13.8MM*7.5MM

Application:
1. A cell phone
2. Digital repeater
3. Headphones
4. Hearing aids
5. Microphone preamplifier
6. Portable Computer
7. Voice recognition system

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

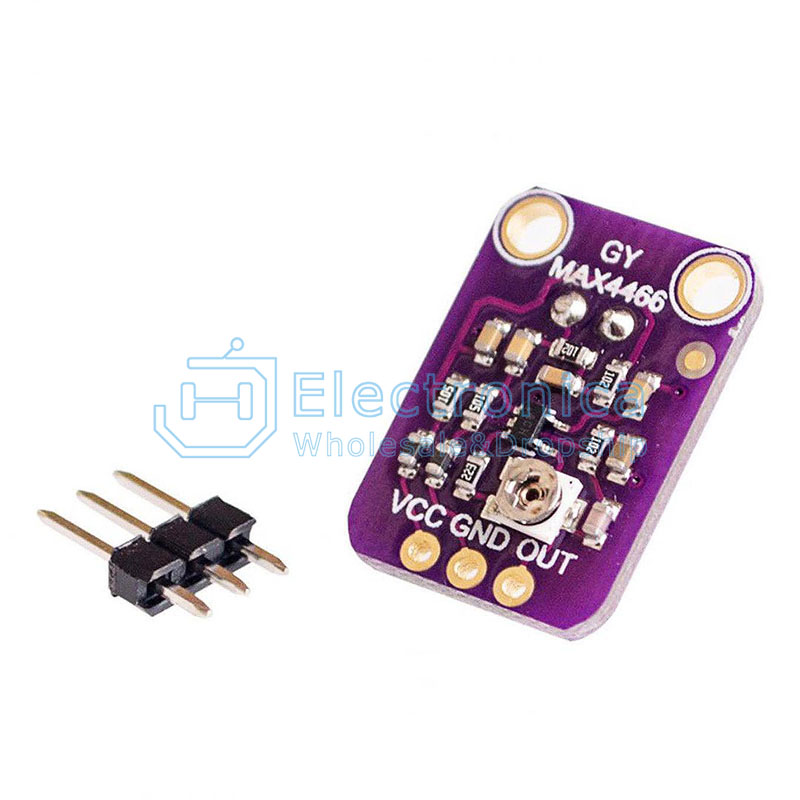

GY-MAX4466 Electret Microphone Amplifier Module

SKU : YXB222 Brand : JH Stock

Price : $ 0.59

100 +: $0.59500 +: $0.591000 +: $0.59
