Description

PCB Size:80*60*1.6mm

There are 9 categories of matching welding patch components, a total of 110 pieces, and the corresponding test points are set:
① Resistor class -- package is 0805 (20 pieces, all in series, the total resistance is R1)
② Resistor class -- the package is 0603 (34 pieces, all in series, the total resistance is R2)
③ Resistance class -- package is 0402 (10 pieces, all in series, total resistance is R3)
④ Resistance exclusion class -- the package is 0603 (6 pieces, all in series, with test points)
⑤ Capacitor class -- the package is 0805 (20 pieces, all in series, the total capacity is C1)
⑥ Diode class -- 3216 (10 PCS, all in series, test point for DA)
Triode -- SOT-23 (6 PCS, with test point)
⑧ Integrated chip class -- packaged in SO-14 (2 PCS, with test point)
⑨ Integrated chip class -- LQFP44 (2 PCS, with test point)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

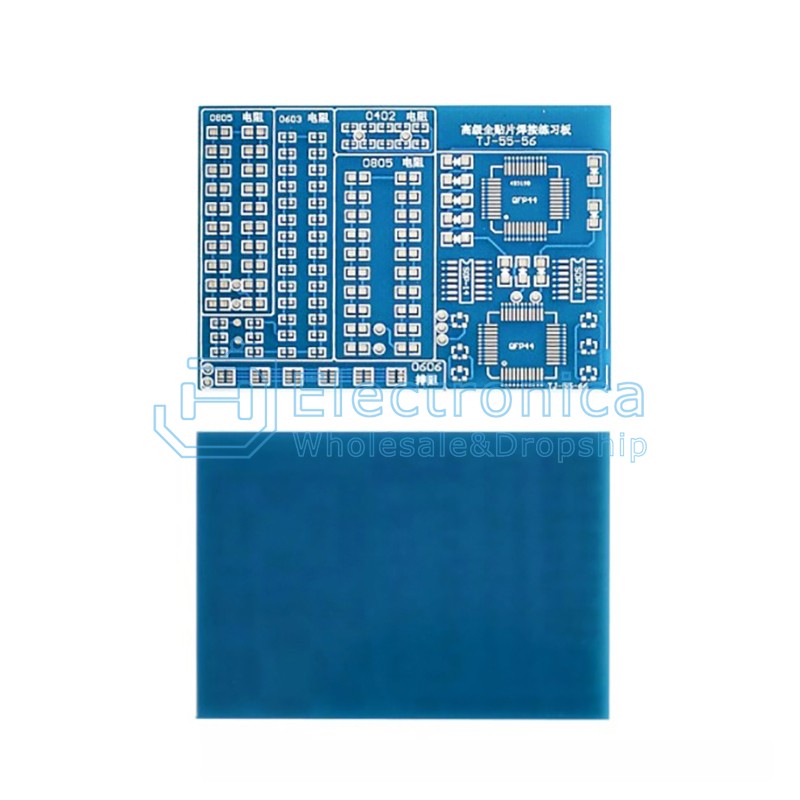

SMT SMD Component Welding Practice Board DIY Kit

SKU : YXA672 Brand : JH Stock

Price : $ 0.58

100 +: $0.58500 +: $0.581000 +: $0.58

Quantity :

- +

ADD TO CART
