Description

Working voltage:DC 5-12V
Size:66mm*54mm
Thickness:1.6mm
SMD elements:149 pcs
Welding joints:444pcs
Welding time:about 90min
Board material:FR-4 tin plating,international standard plate,blue solder mask,pads are all tinned,high-strength fireproof and anti-drop material,can be repeatedly disassembled.
Work temperature:-40℃~85℃
Work humidity:5%~95%RH

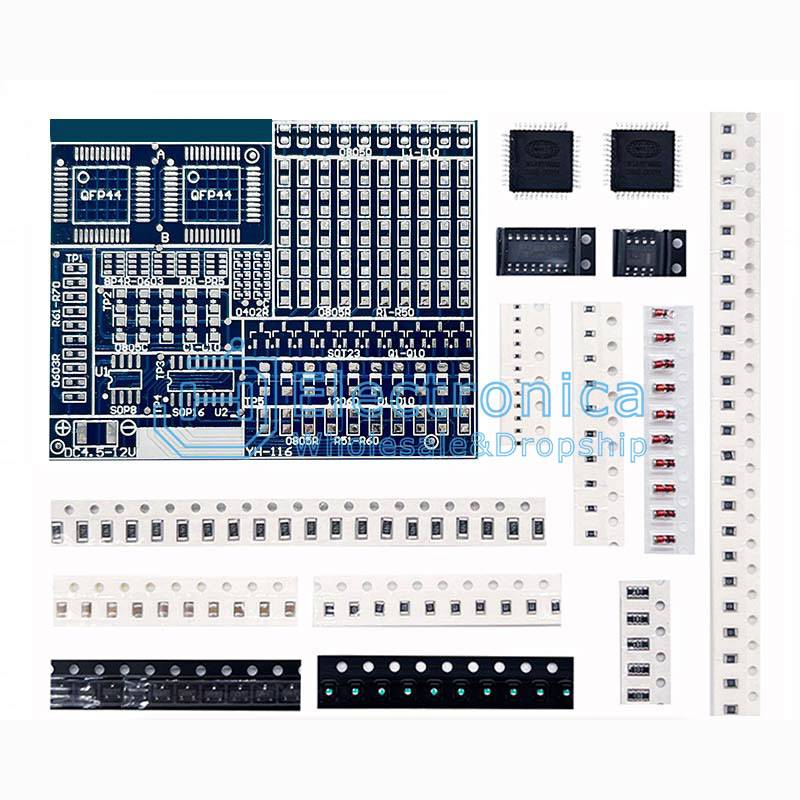

Component list:
1.Resistor class-package is 0805*50pcs
2.Resistor-package is 0603*10pcs
3.LED class-package is 0805*10pcs
4.Exclusion class-package is 0603*5pcs
5.Capacitor class-package is 0805*10pcs
6.Diode class-package is 1206*10pcs
7.Triode class-package is SOT-23*10pcs
8.Integrated chip class-package is SOP-8,SOP-16*2pcs
9.Resistor or capacitor class-package is 0402*10pcs
10.Integrated chip class-package is LQFP44*2pcs

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

SMD Welding Practice Board with Test Points

SKU : YXS811 Brand :

Price : $ 0.31~3.91

100 +: $0.31~3.91500 +: $0.31~3.911000 +: $0.31~3.91

style：

PCB board
Kit(component+PCB board)
Kit+3*AA battery case

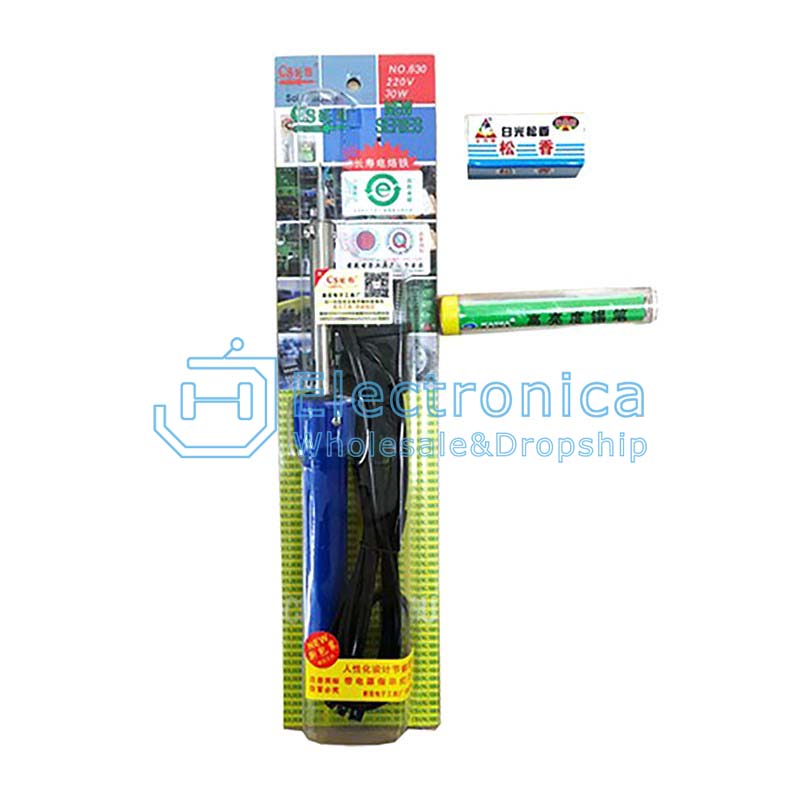

Welding tools
Welding tools with soldering iron rack
