Description

Rated Voltage: 3V~12VDC
Motor Diameter: 27mm / 1.06in
Pump Head Diameter: 44mm / 1.73in
Length: 60mm / 2.36in
Inlet/Outlet Diameter: 4mm / 0.15in
Max. Lift Head: 1.5M / 4.9ft

Features:
The rotating direction can be changed so the inlet and outlet are interchangeable.
The input voltage is from 3V to 12V DC, terminal with red dot is the positive electrode.
5V 2A power supply such as battery holder or computer USB is recommended for long time work.
The pump uses high quality RS-360SH motor and the maximum lift head can be up to 1.5 meter.
Widely used for aquarium, fish tanks, bonsai, rockery, water cooling system for laptop or many experiments.

Note:
1, Please do not connect it to 7.5V or higher voltage for a long time.
2, Single dry cell battery, mobile phone charger and other chargers can NOT be used as a power supply.
3, All power supply with a actual current less than 1.5A or actual voltage more than 12V can NOT be used otherwise the pump will not work or might burn out.
4, The pump is not a submersible pump, it can not be put in water.
5, No-load test time should not be too long.
6, Impurities in water should not be suck into the pump, so please make sure water is clean.
7, If pump is stuck, open the front cover and clean.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

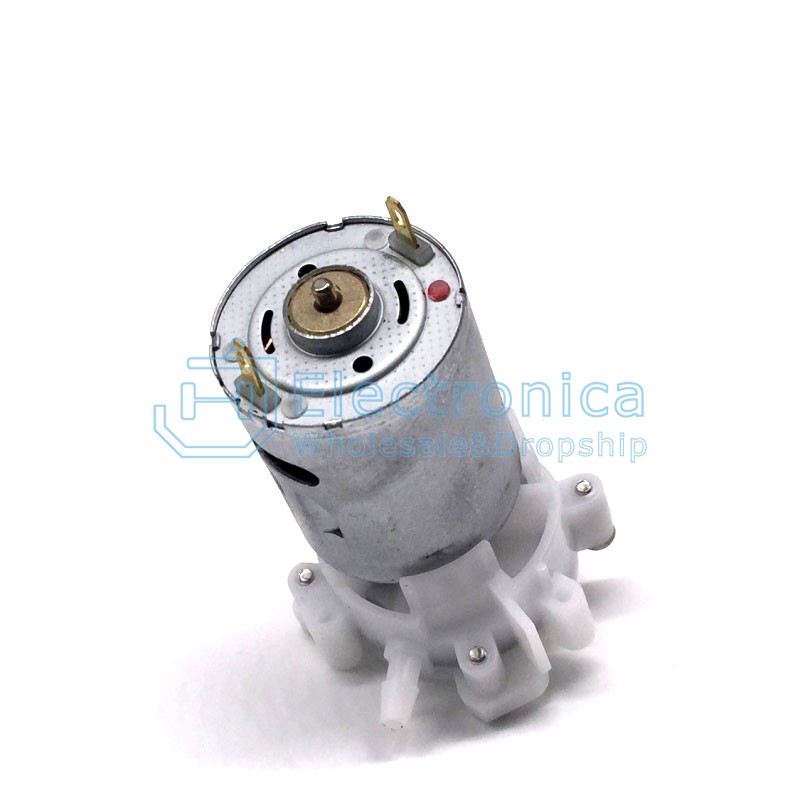

RS-360SH DC 3-12V Micro Gear Water Pump

SKU : YXM074 Brand : JH Sourcing

Price : $ 1.66

100 +: $1.66500 +: $1.661000 +: $1.66
