Description

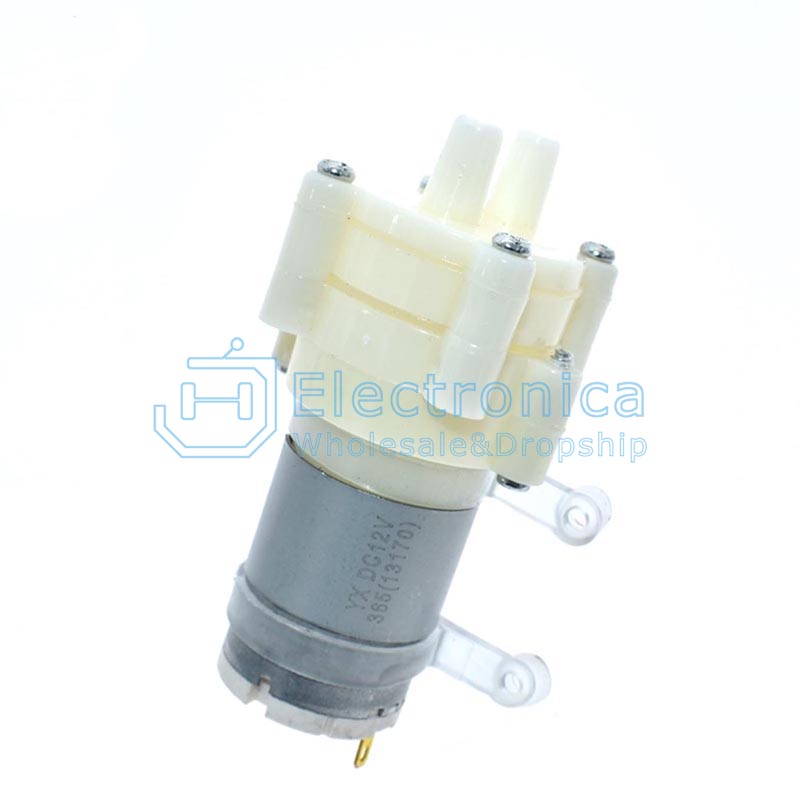

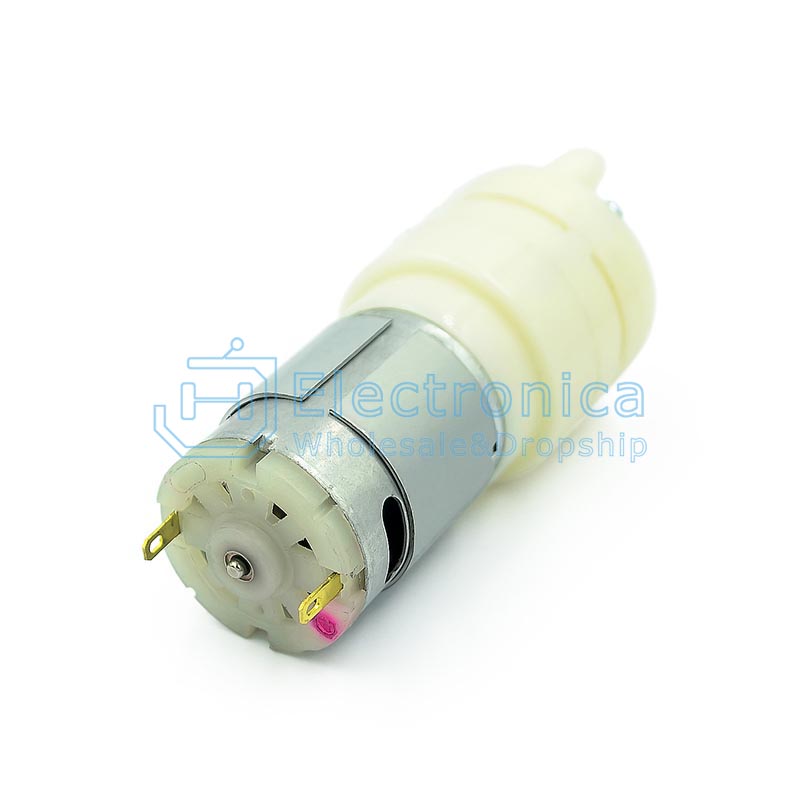

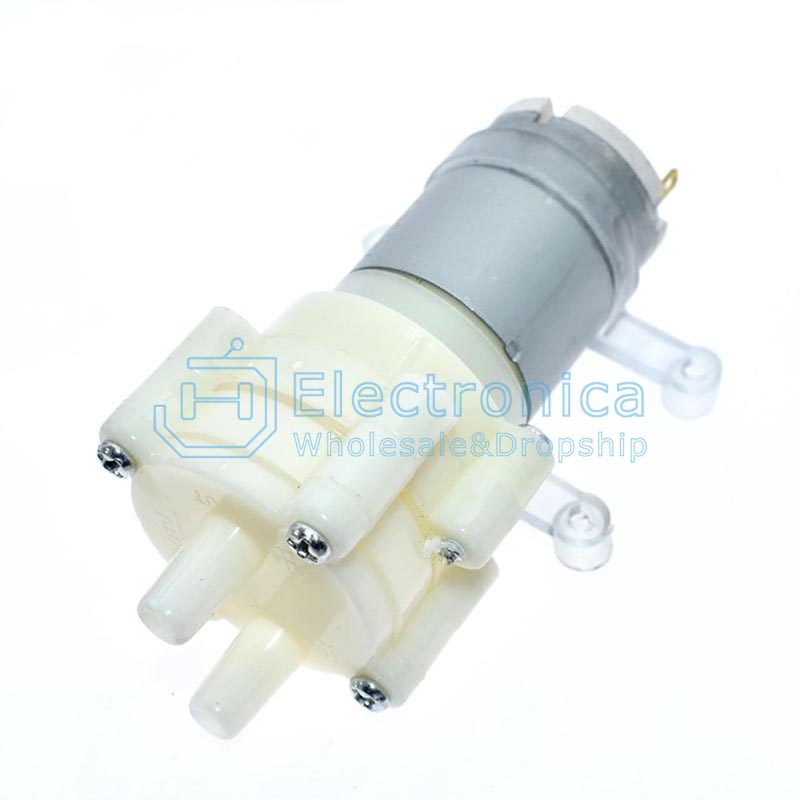

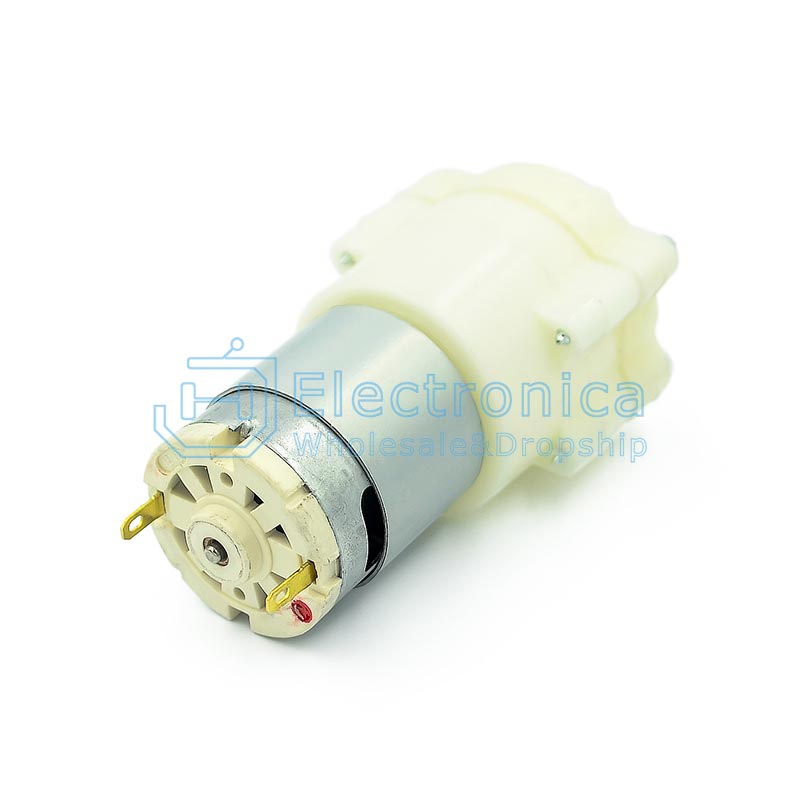

Product model: 365 DC miniature diaphragm pump
The main parameters:
Operating voltage: DC 12V
No load current: 0.23
Load: 450 ma
Maximum flow: 2-3 liters/minute
The highest lift: 1-2.5 meters
Outlet pressure: 1-2.5 kg
Normal working time: 2-3 years.
Maximum suction: 2 meters
Inlet and outlet diameter: outside diameter 8mm
Motor length: 32MM
Motor diameter: 28MM
Pump length: 36MM
Total length: 69MM
Pump diameter: 40MM*35MM
Product model: 365 DC miniature diaphragm pump
The main parameters:
Working voltage: 12V
Load: ≤450 MA
RMP: 3000土10%
Power: 4W-7W
Size: 88*34.7*51 MM

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

365 /385 DC Pumping Motor 12V

SKU : YXA361 Brand : JH Stock

Price : $ 0.92~1.14

100 +: $0.92~1.14500 +: $0.92~1.141000 +: $0.92~1.14

style：

Quantity :

- +

ADD TO CART
