Description

Power: 14.5W
Model: JT500
Voltage: DC12V
Current: 1.2A
Unloaded current: Within 0.2A
Max Water Head: 5M / 16.4ft
Max Flow Rate: 600L/H
Starting Voltage: 3V
Waterproofing Grade: IP68
Operating Humidity: 45%- 90%RH
Liquid Temperature: -20~60℃
Max Unpitched Sound: 50dB PUMP Shell
Material: ABS
Motor Magnet: Ferrite magnets
Size: 105.9 mm X 33.3 mm X 38.33 mm

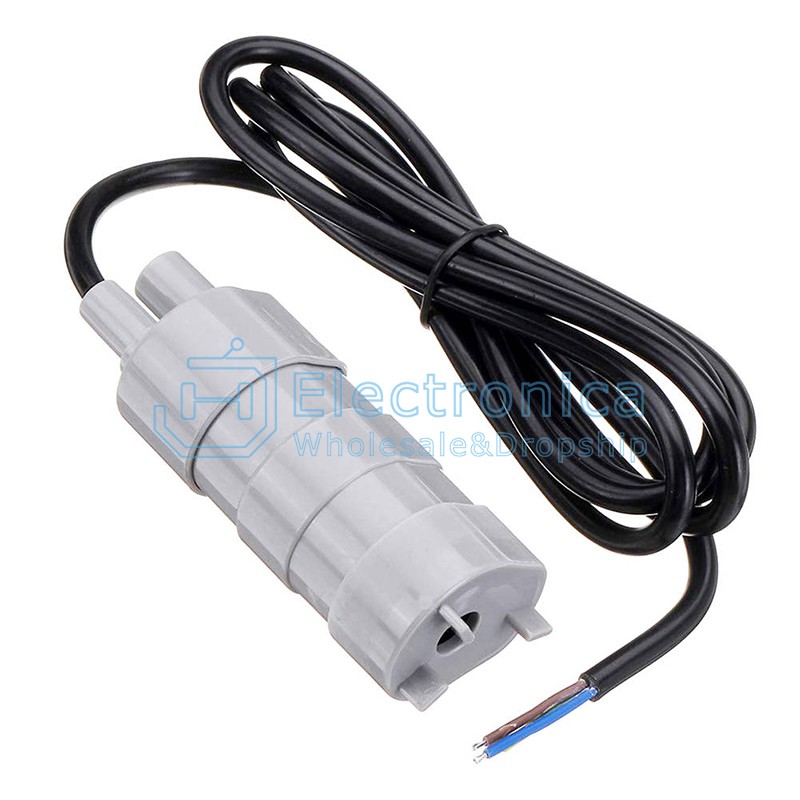

Length of bare wire: 1.5 m

Features:
1.Can be connected to the car power supply,12V battery can work,easy to move
2.This pump is a submersible pump,not a self-priming pump and pump land.The water temperature should not exceed 40℃
3.Low noise,10cm less than 35dB
4.Connect the power supply pay attention to the negative and positive,otherwise the head flow is affected,connect to the positive electrode brown system,the blue wire is connected to the anode,the yellow wire does not need to be connected
Note: Please do not work continuously for 24 hours

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

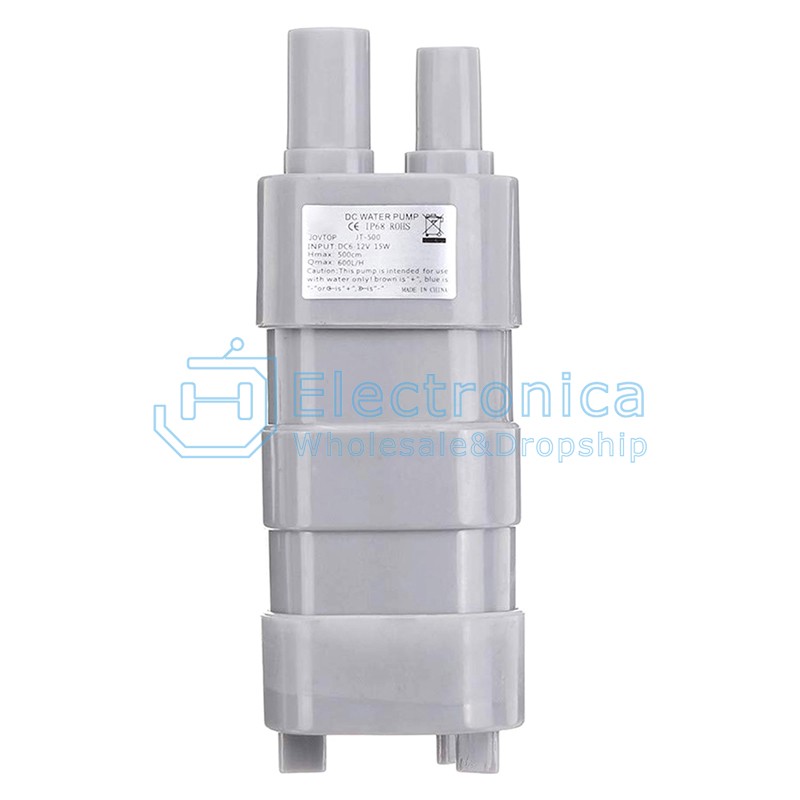

JT500 DC12V 5M 600L/H Water Pump

SKU : YXB629 Brand : JH Sourcing

Price : $ 5.58

100 +: $5.58500 +: $5.581000 +: $5.58
