Description

Reduction ratio 1:5.18
Modle: 17HS15-1684S-PG5 Motor
Type: Bipolar Stepper
Angle Step: 1.8 ° (W / O Gearbox)
Holding Torque: 42 Ncm
Rated Current / Phase: 1.6 to
Phase Resistance: 1.6 ohms.
Recommended voltage: 12 - 24 V
Inductance: 3.0 MH ± 20% (1 kHz)
Gear type: Planetary
gear Gear ratio (exact Gear Ratio): 57/11
Efficiency: 92%
Gunner at no load: <= 1 °
Max .Torque: 1.2 Nm (170oz-in allowable) Allowable torque
Torque: 2.5 Nm (354oz-in)
Maximum load axial axis: 8 N Maximum load radial
axis: 35 N
Wiring:
Red: B-
Blue: B +
Green: A-
Black: a +

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

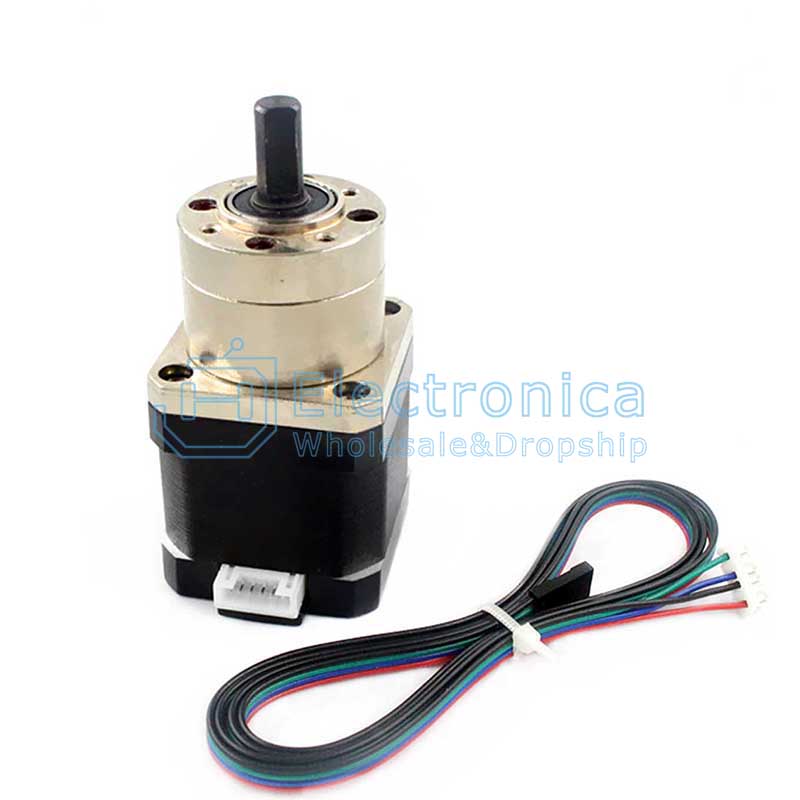

NEMA17 42 Planetary Gear Reduction Motor

SKU : YXD185 Brand : JH Sourcing

Price : $ 15.81

100 +: $15.81500 +: $15.811000 +: $15.81

Quantity :

- +

ADD TO CART
