Description

Wiring Mode:

Red:motor power supply+(the switch can control the forward and reverse rotation of the motor)
Black:encoder power supply-(the positive and negative poles should not be mistaken 3.3-5V)
Yellow:signal feedback(11 signals when the motor rotates for one circle)
Green:signal feedback(11 signals when the motor rotates for one circle )
Blue:encoder power supply+(the positive and negative poles should not be mistaken 3.3-5V)
White:motor power supply-(the switch can control the forward and reverse rotation of the motor)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

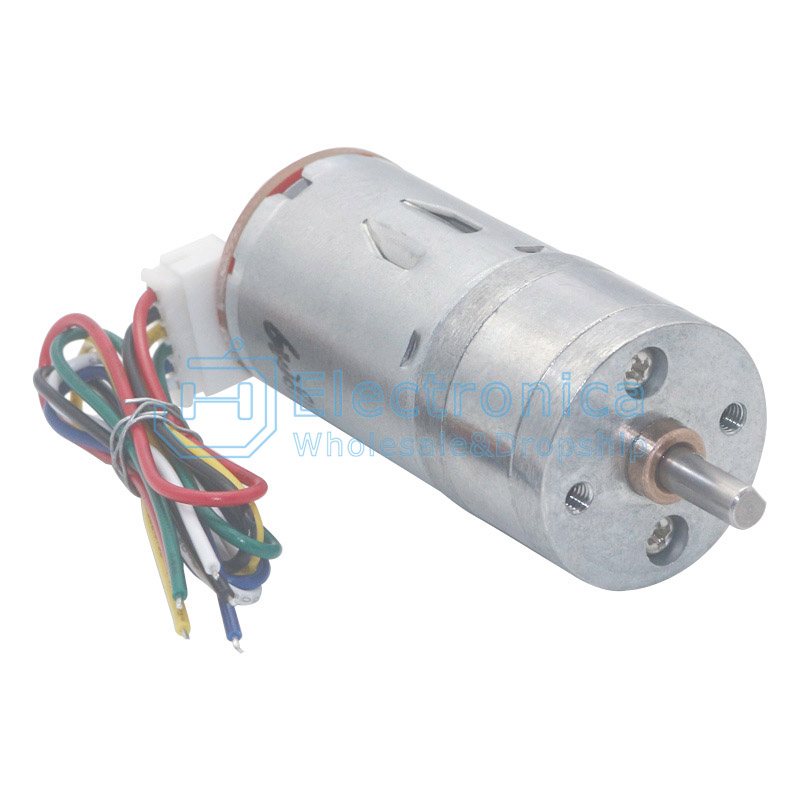

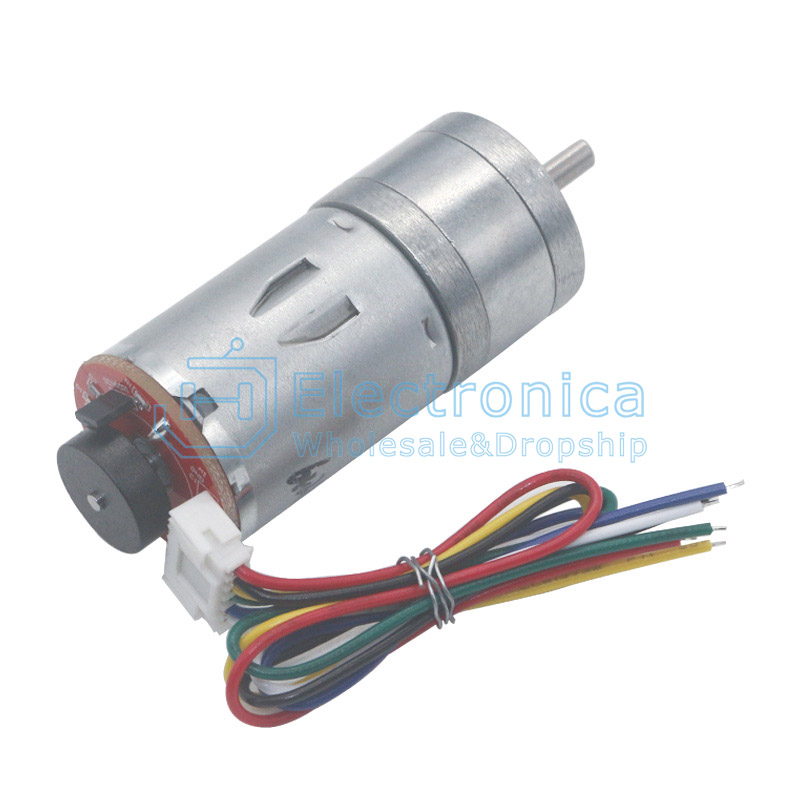

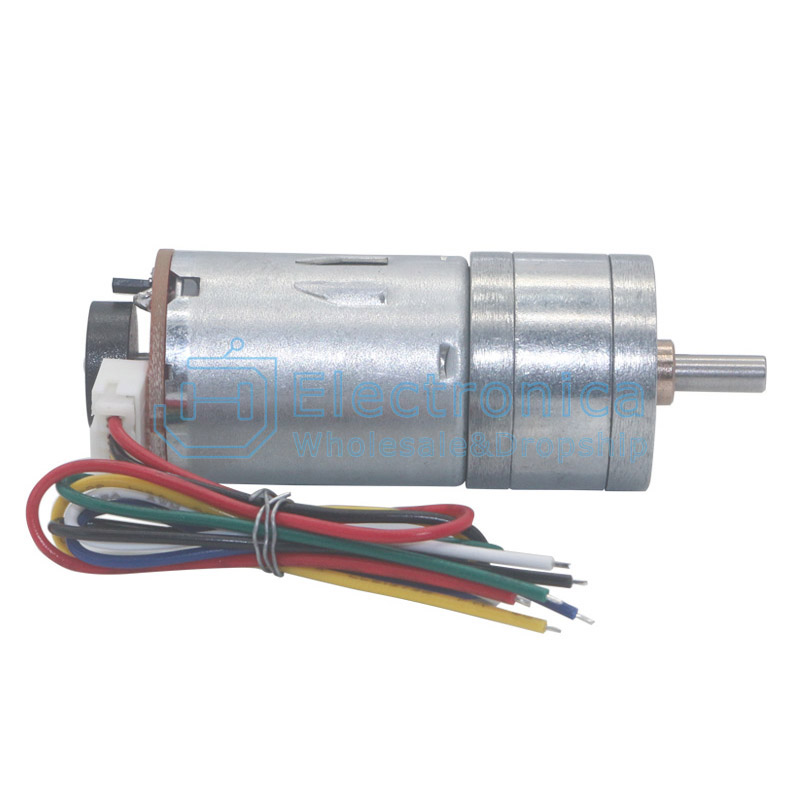

25GA-370 DC Gear Motor with Encoder

SKU : YXC1469 Brand :

Price : $ 4.10~4.35

100 +: $4.10~4.35500 +: $4.10~4.351000 +: $4.10~4.35
