Description

Rated voltage: 12V
Speed parameters:
Ordinary model: no load speed 130 RPM (plus or minus 5%), load 7 kg (per cm), 70 rpm, locked rotor torque 20 kg

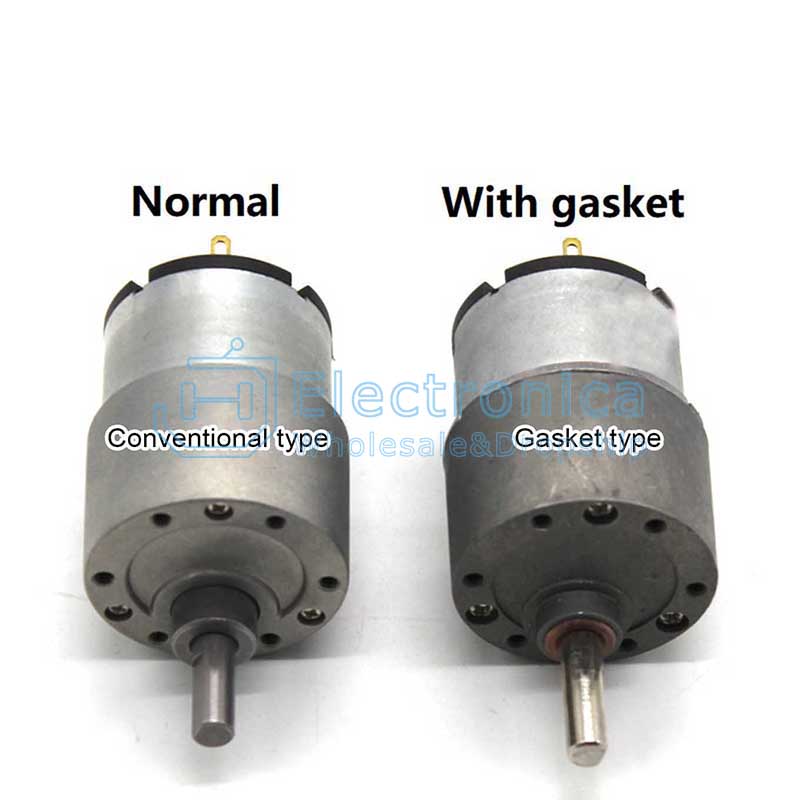

Gasket type: 6-7 rpm at 12V; 13 rpm at 24 V
Torque: 2.5kg
Reduction ratio: 1:86
Motor diameter: 32.8mm
Motor length: 22mm
Fixed aperture: 3mm (M3 screw)
Reducer diameter: 37mm
Reducer length: ordinary type: 24mm; Gasket size: 25mm
Step height: Ordinary: 6mm; Gasket: 4.5mm
Shaft length: Ordinary: 15mm; Gasket size: 19mm
Motor shaft diameter: 6mm, D-type shaft (pin edge 0.65mm)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

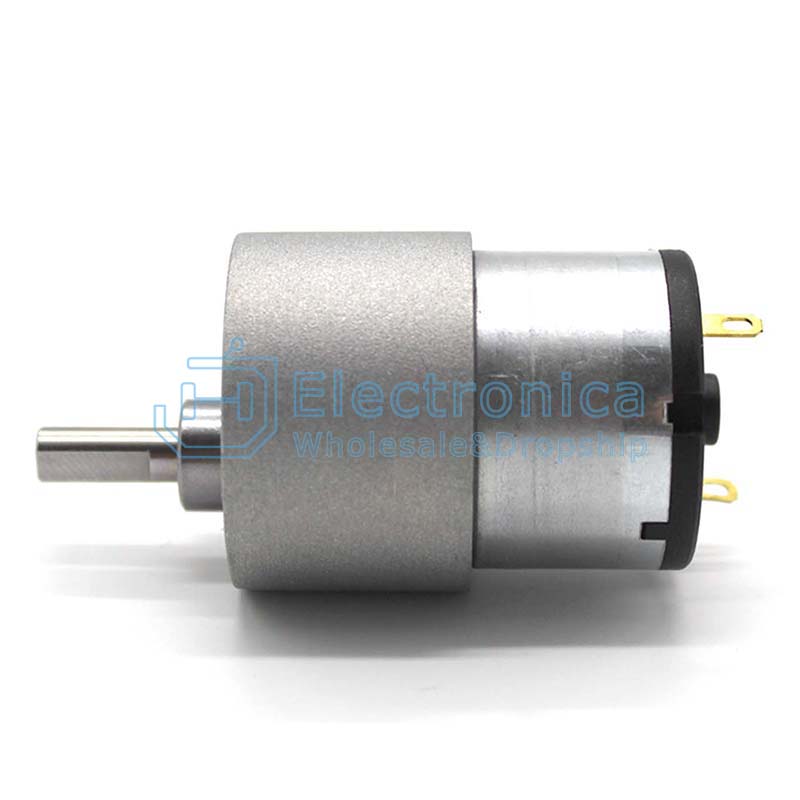

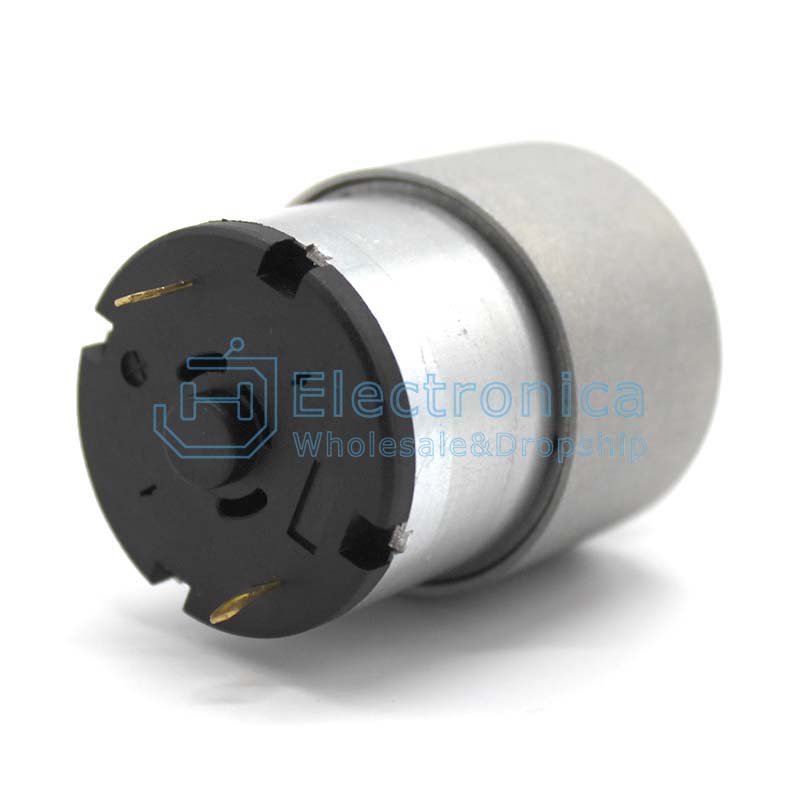

12V 37 Reduction Geared Motor

SKU : YXJ245 Brand : JH Sourcing

Price : $ 2.73~4.22

100 +: $2.73~4.22500 +: $2.73~4.221000 +: $2.73~4.22

style：

Quantity :

- +

ADD TO CART
