Description

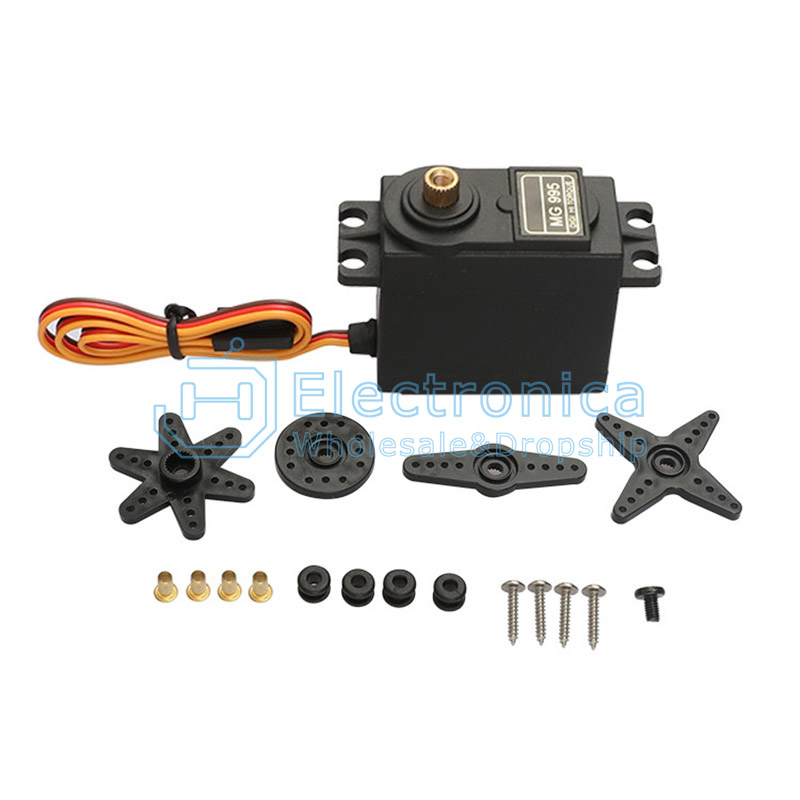

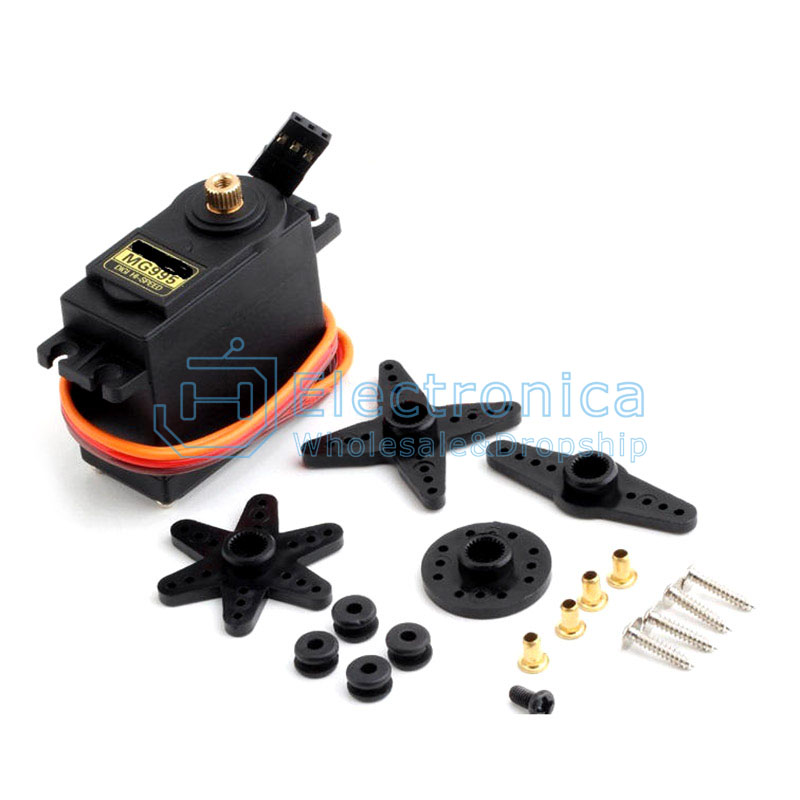

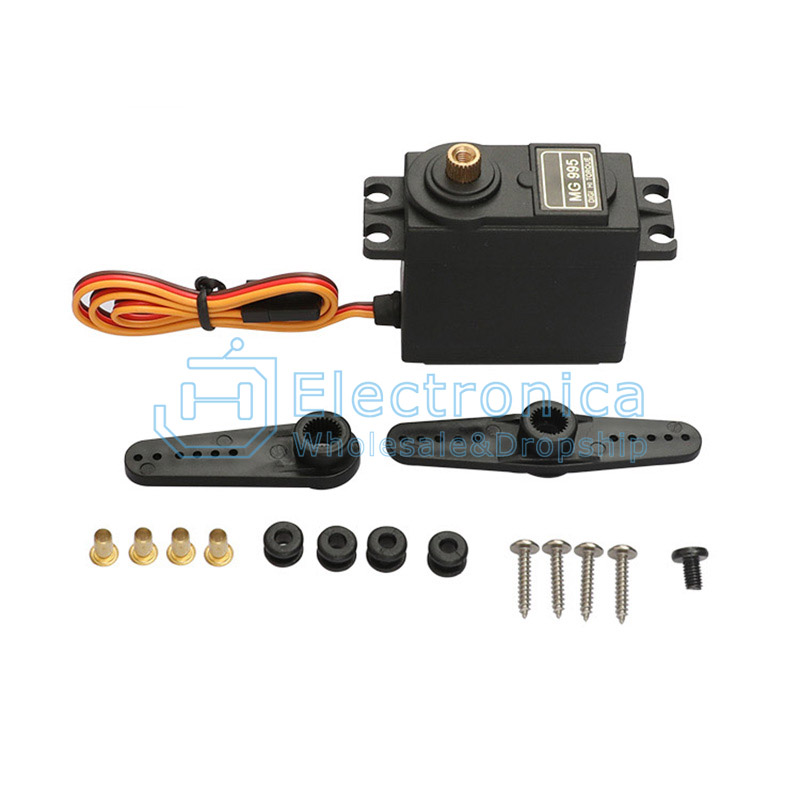

MG995：
Dimension : 40mm x 19mm x 43mm
Color: Black
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts

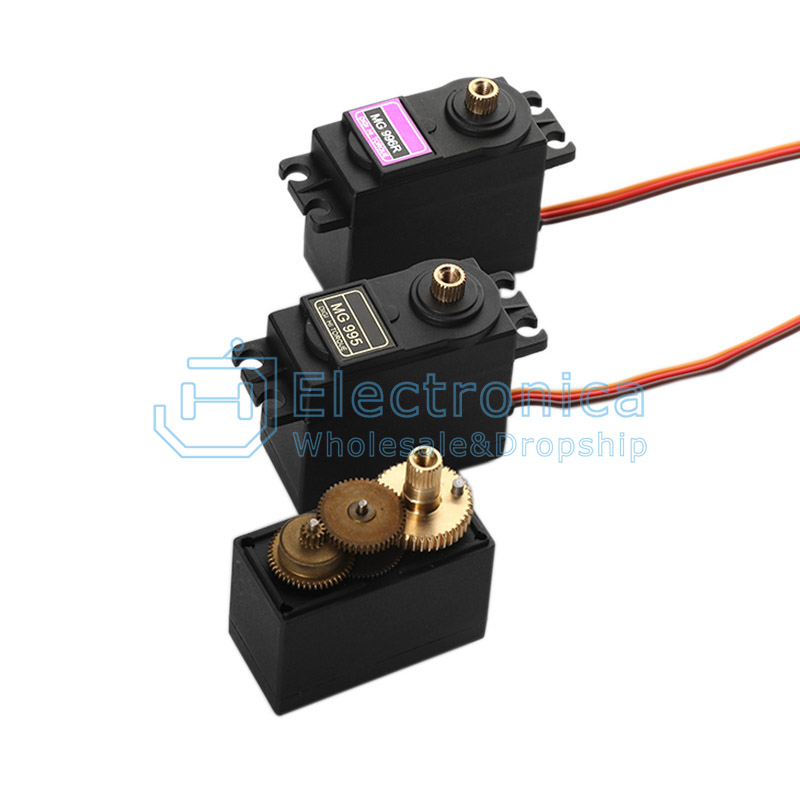

Gear Type: All Metal Gears

Connector Wire: Heavy Duty, 300mm

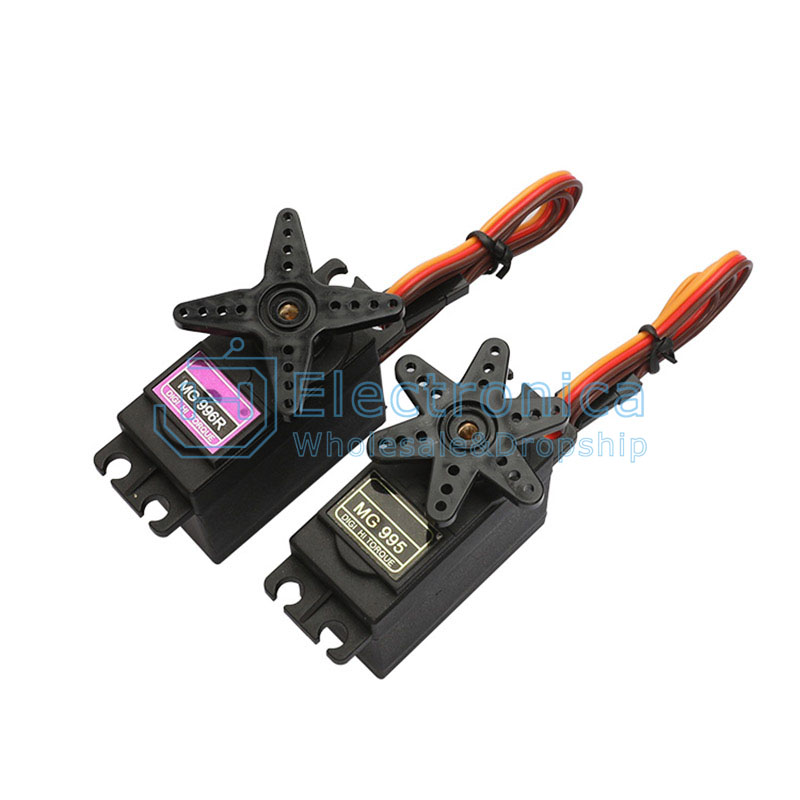

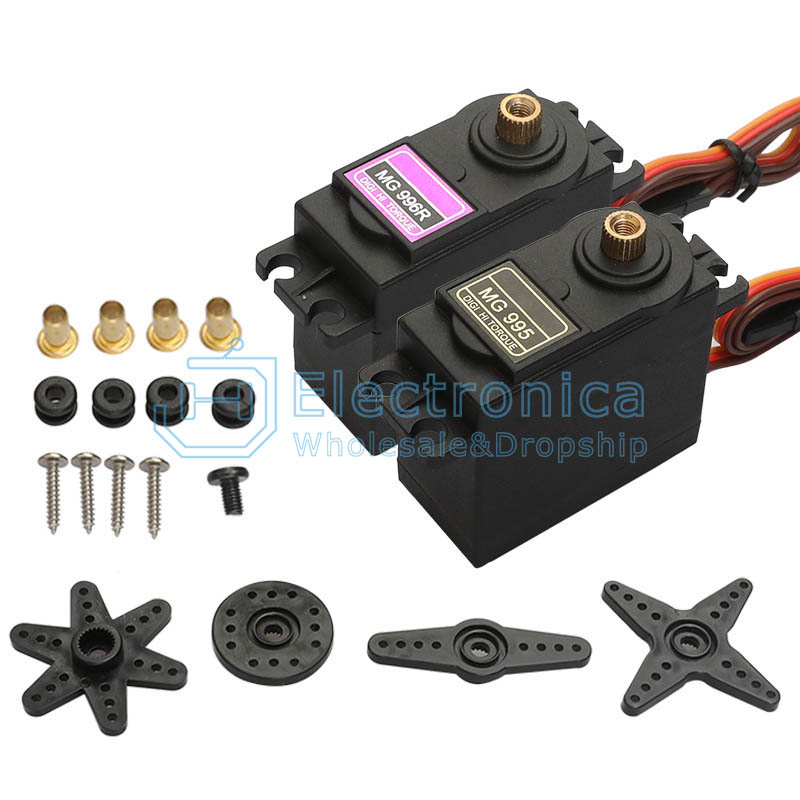

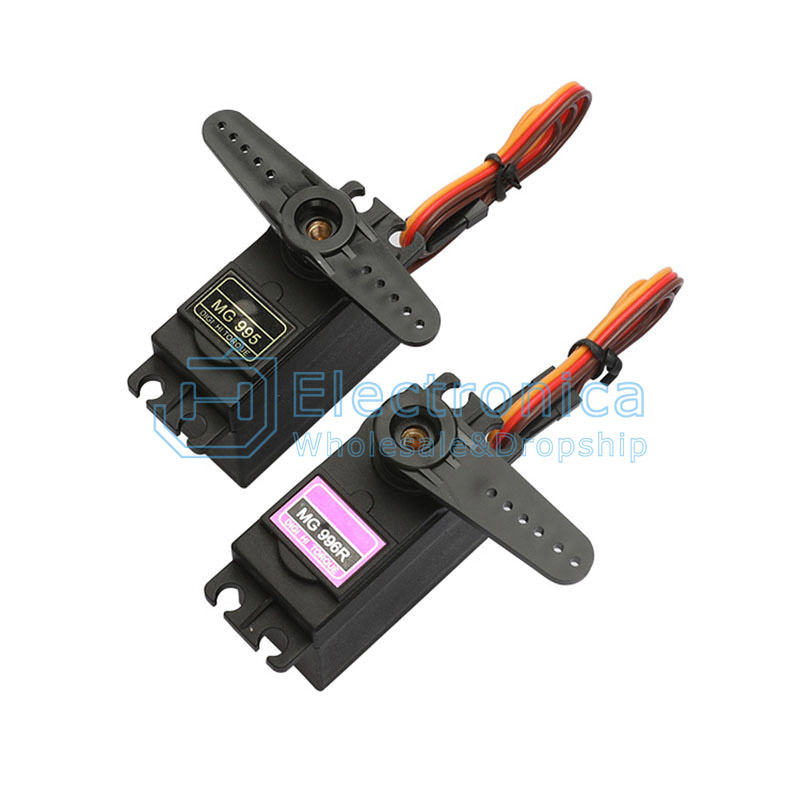

MG996R:
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 - 7.2 V
Temperature range: 0'C to 55‘C
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Connector Wire:Length 300mm

Package Dimension: 54 x 38 x 20 mm

MG946R：
Product Dimensions: 40.7 * 19.7 * 42.9mm
Products Torque: 10.5-13kg (4.8-6.0v)
Product Speed: 0.17-0.14s (4.8-6.0v)
Operating temperature: 0 ° C-55 ° C

Deadband setting: 5 sec

MG945:
Working Torque: 10.5 kg/cm (4.8V), 13.0 kg/cm (6.0V)
Reaction Speed: 0.2 Seconds/60 Degrees (4.8V), 0.17 Seconds/60 Degrees (6.0V)
Operating Temperature: 0-55℃
The Deadband Setting: 4 Microseconds
Operating Voltage: 4.8V-7.2V
Features: High Speed, Stable, Shock Proof
Size: 43mm x 40.7mm x 19.7mm

Line Length: 30cm

S3003：
Torque: 44 oz-in (3.2 kg-cm) at 4.8V
57 oz-in (4.1 kg-cm) at 6.0V
19 sec/60° 6.0V
Speed: .23 sec/60° 4.8V
Length: 1.6" (40mm)
Width: .8" (20mm)
Height: 1.4" (44mm)
Connector: "J" type with approx. 5" wire

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

MG996R MG946R MG995 MG945 Servo Motor for Smart Car

SKU : YXM176 Brand : JH Sourcing

Price : $ 1.79~4.27

100 +: $1.79~4.27500 +: $1.79~4.271000 +: $1.79~4.27
