Description

Product Introduction:
Dual Steering Engine Control Module is a plug and play, simple and easy to use servo controller with three servo control methods: knob adjustment, center return function, and serial command control
Product Features:
A mature and stable 8-bit MCU on board is used to generate high-resolution PWM signals for precise control
Support manual mode and center return mode, switch through buttons, with mode indicator light
Support knob adjustment or serial command control in manual mode; When using serial command control, a matching upper computer or connecting to an external MCU can be used
Number of control channels: 2 channels (M0 and M1 servo motors). When using knob adjustment and center return functions, both servo motors can be controlled simultaneously. When using serial port commands, both servo motors can be controlled separately
Servo control accuracy: 0.09 degrees (i.e. PWM limit change value of 1us)
Support servo with a control cycle of 20ms and a pulse width between 0.5 and 2.5ms
Can directly use the 2S carp battery charging head to debug and return to the steering gear; Power supply voltage range: 5-9V (specific based on the actual servo power supply voltage used)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

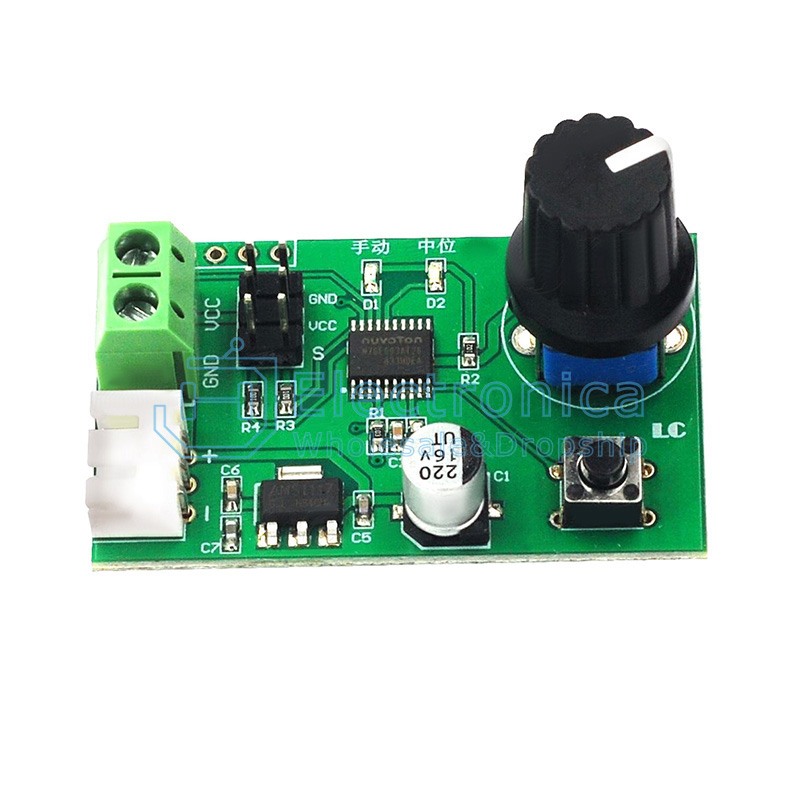

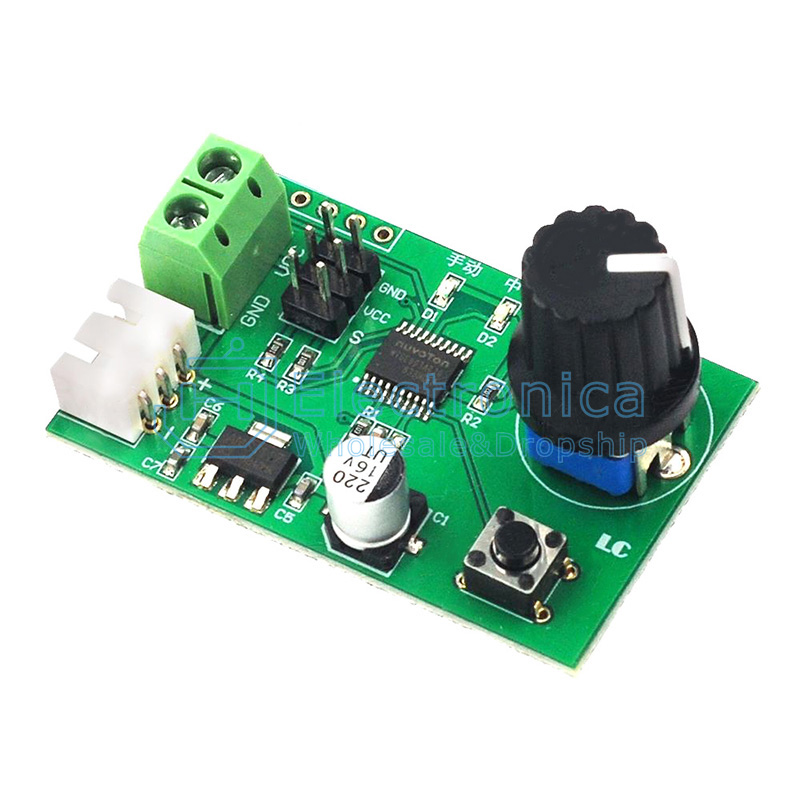

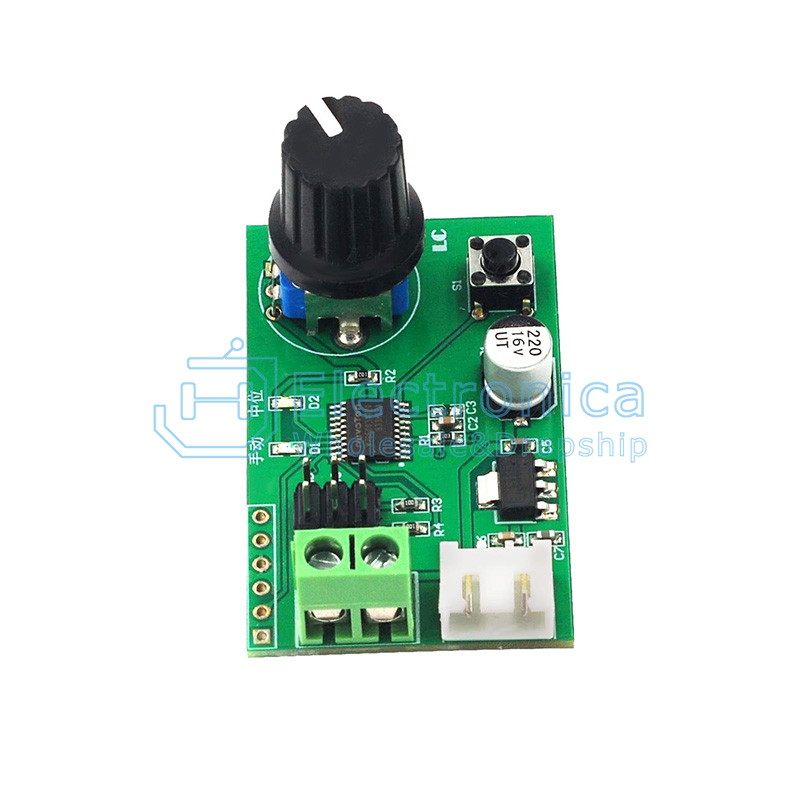

MG995 SG90 Dual Steering Engine Controller

SKU : YXS1653 Brand :

Price : $ 2.51

100 +: $2.51500 +: $2.511000 +: $2.51

Style：

Dual Steering Engine Controller

Quantity :

- +

ADD TO CART
