Description

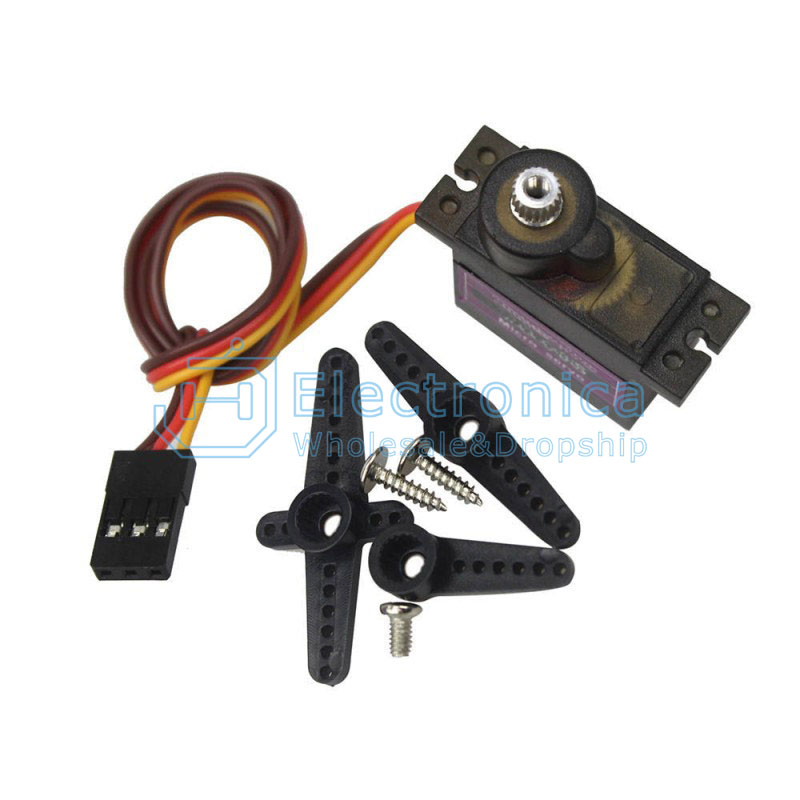

MG90S:
Speed: 4.8V&0.10sec/60 degrees; 6.0V&0.09sec/60 degree
Torque: 4.8V&1.6KG-cm; 6.0V&1.8kg-cm
Voltage: 4.8V6.0V
Connector Wire Length 250mm
Dimension: 22.6mm x 12.1mm x 22.5mm
Dead Band Width: 5 usec
Interface Specifications: JR / FP General

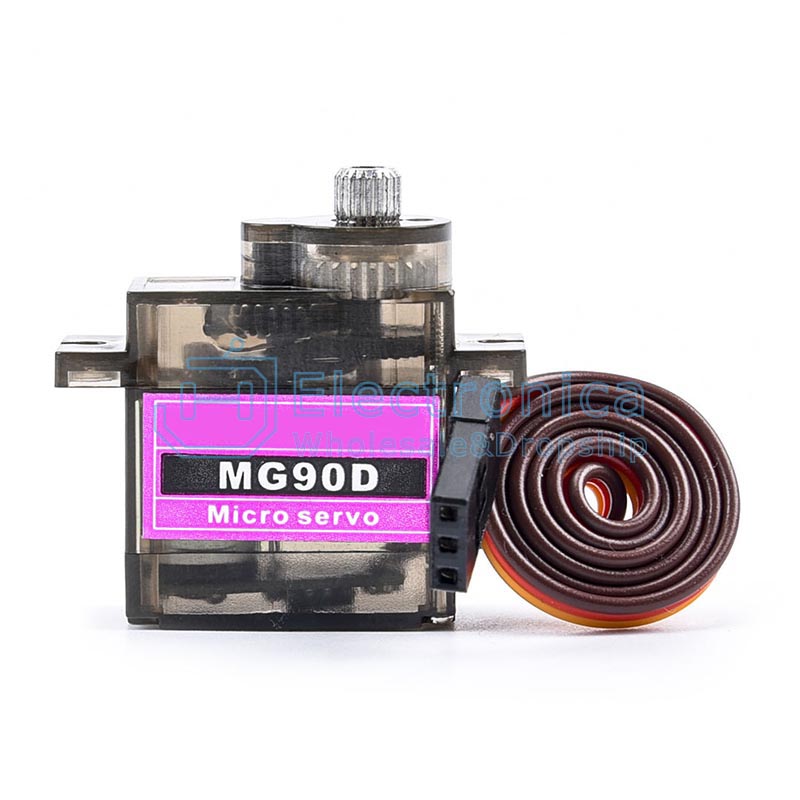

MG90D:
Dimension: 22.8×12.2×28.5mm
Stall torque: 2.1kg/cm (4.8v) ; 2.5kg/cm (6.6V)
Operating speed: 0.10sec/60degree (4.8V); 0.08sec/60degree (6.0V)
Operating voltage: 4.8V~ 6.6V
Temperature range: 0- 55deg
Servo Plug: JR (Fits JR and so on)
Dead band width: 1us
servo wire length: 25cm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

MG90S MG90D Servo Motor for Smart Car

SKU : YXM175 Brand : JH Sourcing

Price : $ 1.62~2.73

100 +: $1.62~2.73500 +: $1.62~2.731000 +: $1.62~2.73
