Description

1.Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference.
2.This protuct does everything for you, and can be easily interfaced with any microcontroller,
even one without an analog input.

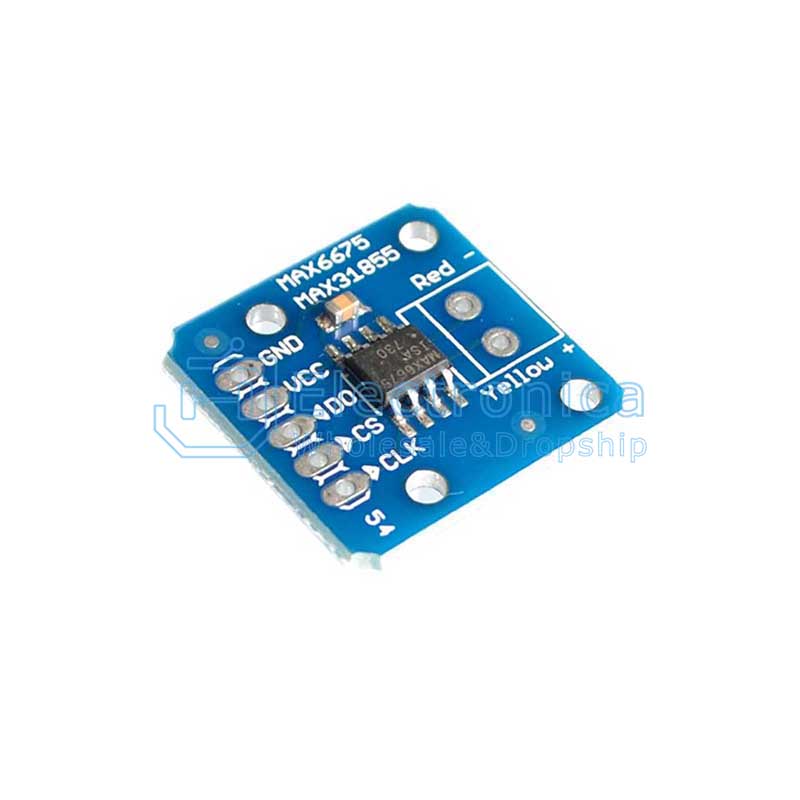

3.This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors and level shifting circuitry,

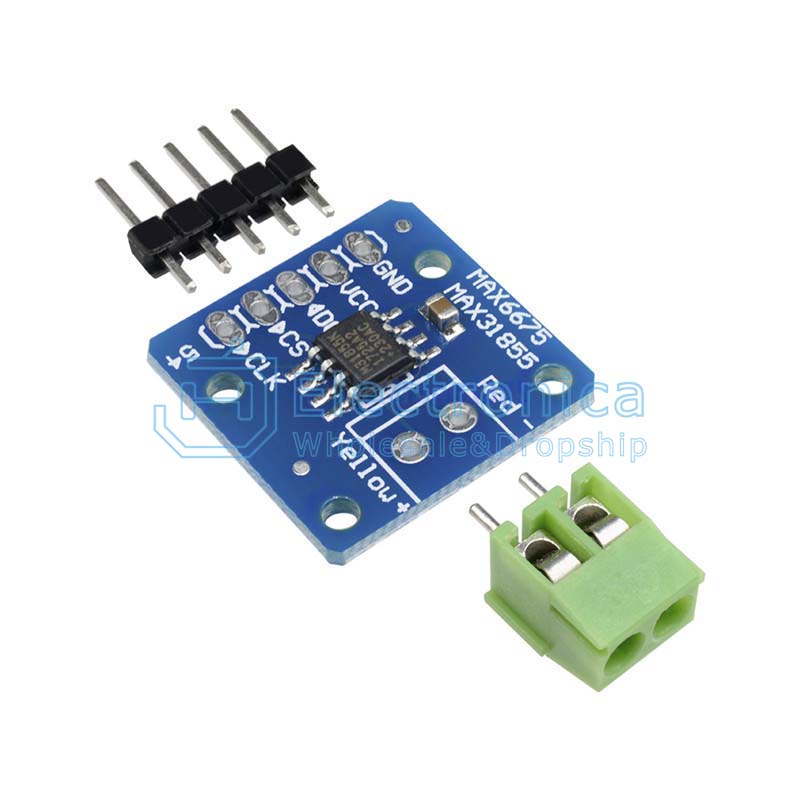

4.Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any
breadboard or perfboard).

Description
1. measurement temperature range: minus 200 degrees Celsius to 1350 degrees Celsius above zero
2. SPI interfaces, high-speed transmission
3. the input voltage is 3-5v DC
4. direct digital output temperature value, no amplifiers, no ADC
5. 14-bit resolution, 0.25 degree temperature accuracy

Note
1.Works with any K type thermocouple
2 K thermocouples have about ±2°C to ±6°C accuracy
4.Internal temperature reading
5.3 to 5v power supply and logic level compliant!
6.SPI data output requires any 3 digital I/O pins.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

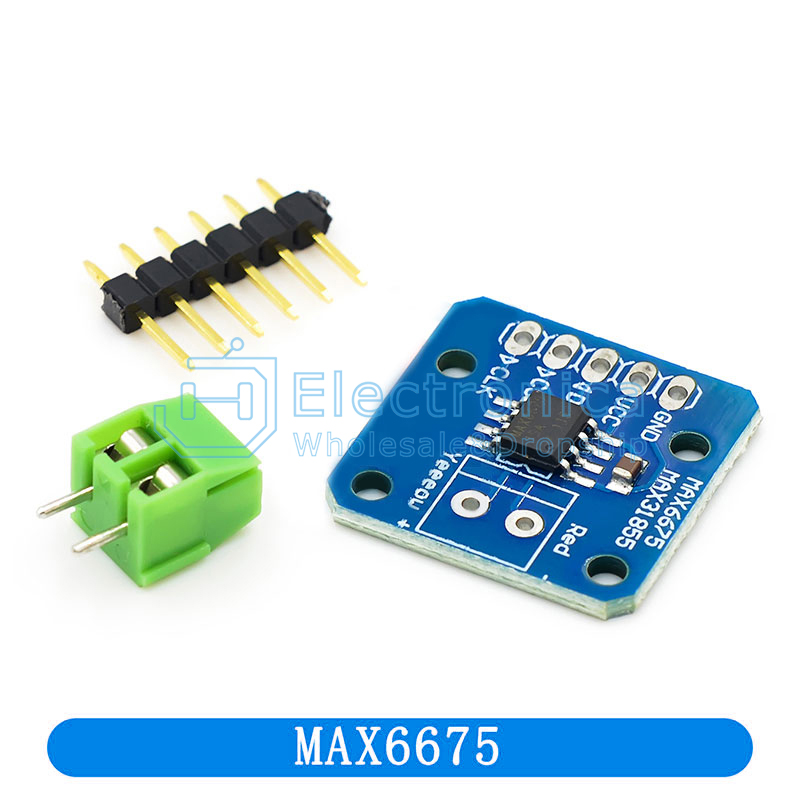

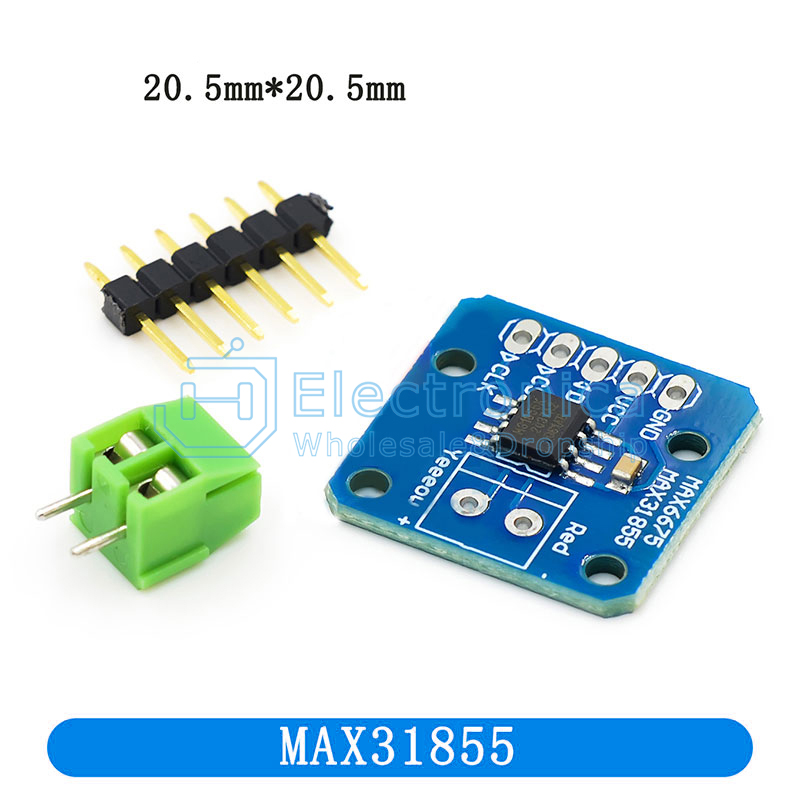

MAX31855 MAX6675 K Type Thermocouple Temperature Module

SKU : YXB059 Brand : JH Stock

Price : $ 1.89

100 +: $1.89500 +: $1.891000 +: $1.89

Style：

MAX31855
MAX6675
