Description

Model: XH-M510
Size(approx): 9.4*6.2*2.5cm
Switching frequency: 360KHz
Signal to noise ratio: 110db
Output power: 100W*2
Output resistance: 4-8Ω
Line type: D types
Chip: TDA7498
Harmonic distortion: Po=1W/0.05%
Frequency response range: 18-100KHZ
Input voltage: DC15-32V
Output power: 100w+100w (VCC+32V,RL=4ohm,THD=10%
Wide: 14-30v signal power supply

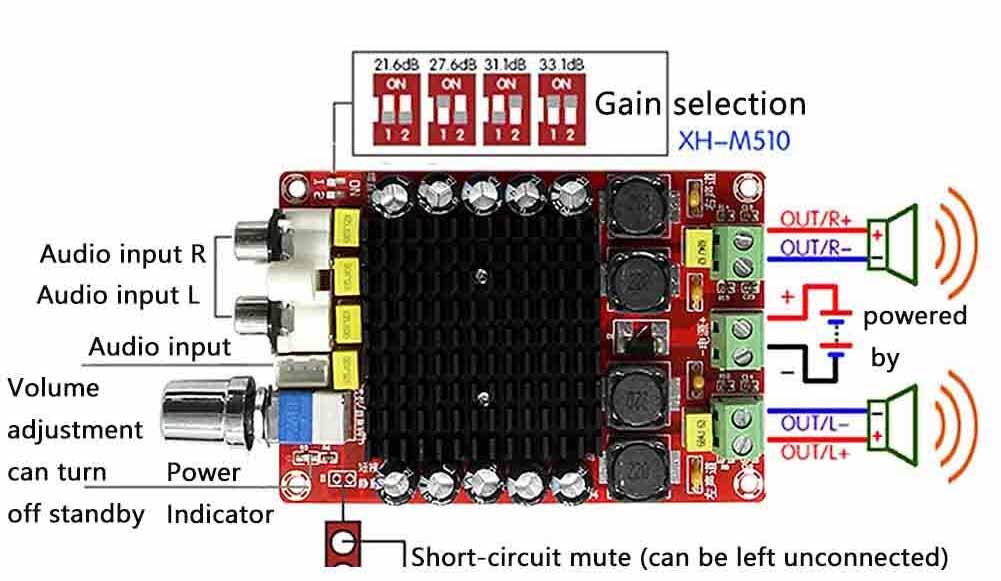

Level 4 optional: (21.6dB,27.6dB,31.1dB,33.1dB)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

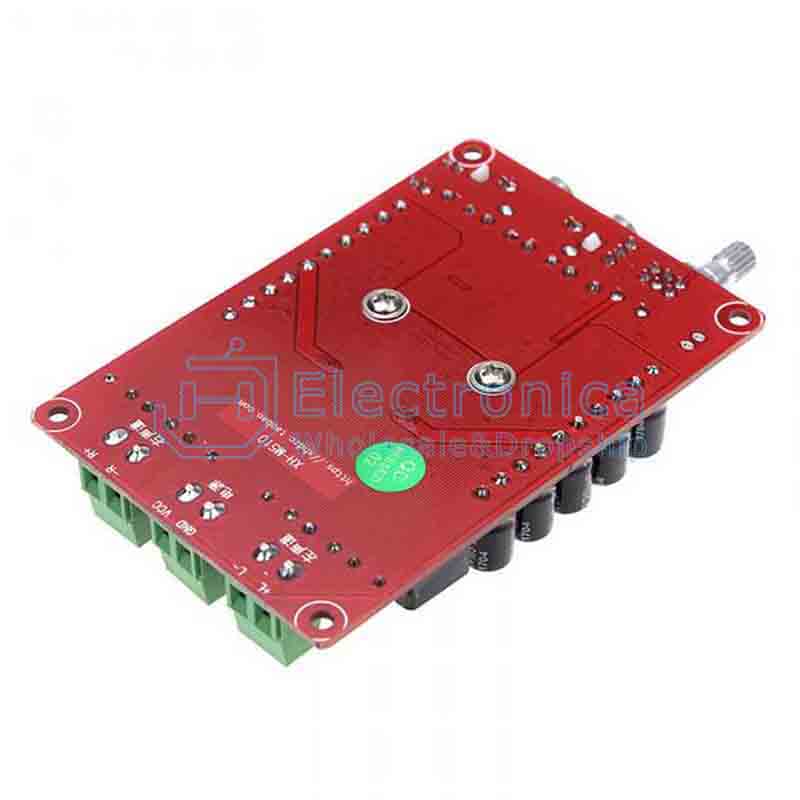

XH-M510 TDA7498 High Power Digital Amplifier Board

SKU : YXB118 Brand : JH Stock

Price : $ 5.29

100 +: $5.29500 +: $5.291000 +: $5.29

Quantity :

- +

ADD TO CART
