Description

Weight:137g
Size:90mm×63mm
Voltage input:12-24V
1. Support Mach3 and other computer software that supports parallel port control
2. Separate USB power supply from peripheral power supply to ensure computer security
3. Peripheral wide voltage input,12-24V,and with anti reverse connection function
4. All input signals are isolated by optical couplers and can be connected to emergency stops,tool setting,limit positions,etc.to ensure computer safety
5. One relay output port can control the spindle switch.The output port is P17 port
6. A 0-10V analog voltage output isolated by an optocoupler can control a frequency converter with corresponding analog interfaces to control the spindle speed.The output port is P1 port
7. Open all 17 ports, can be connected to drivers with optocouplers,and can control 5-axis stepper motors
8. P1 serves as a PWM output and can control the spindle governor with optocoupler input
9. It can connect common cathode/anode

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

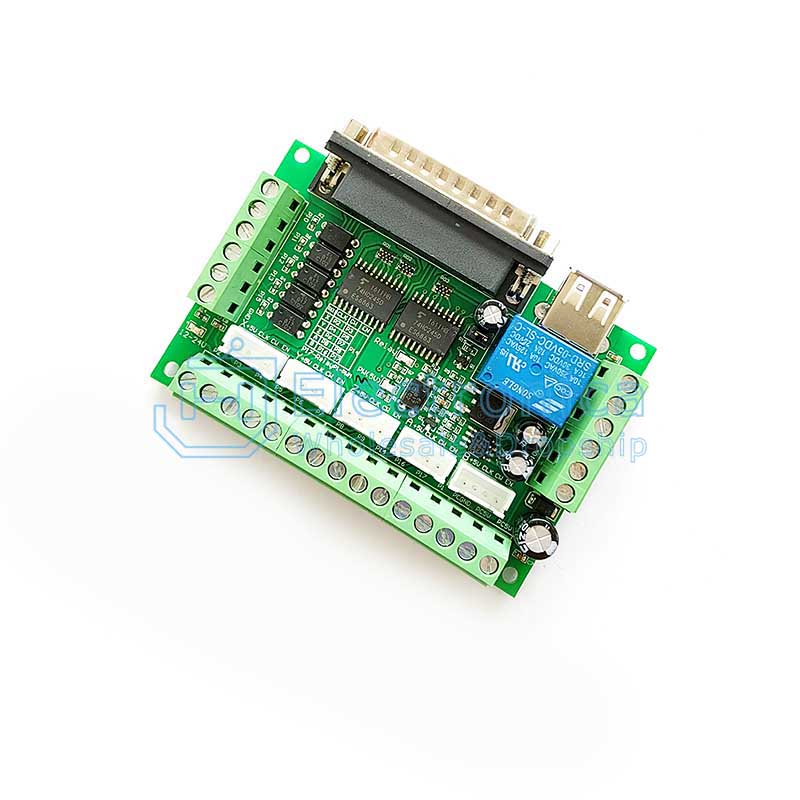

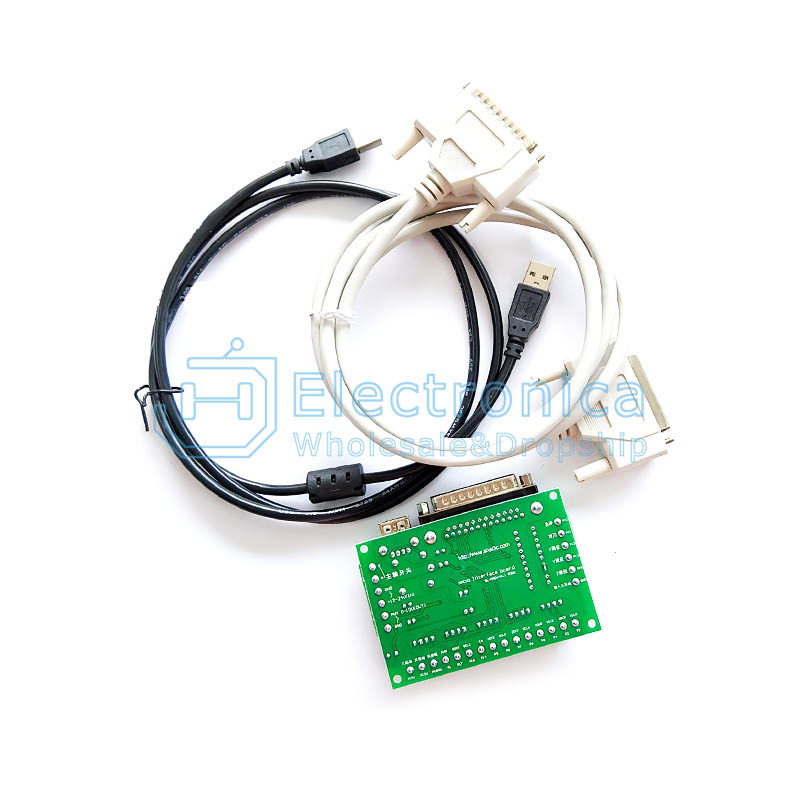

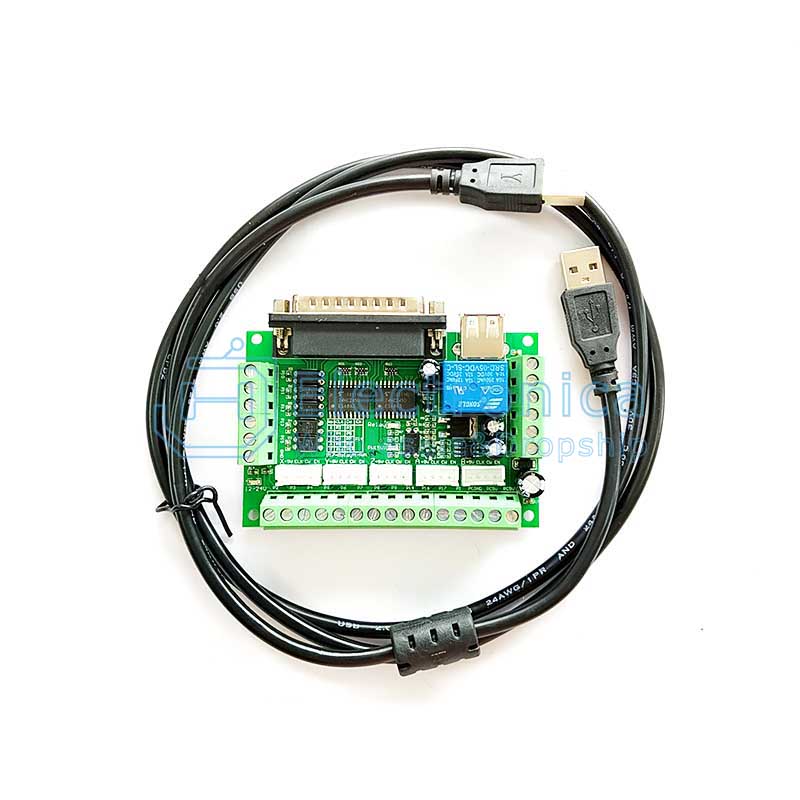

MACH3 Engraving Machine Interface Board with USB Cable

SKU : YXC502 Brand : JH Stock

Price : $ 1.08~2.58

100 +: $1.08~2.58500 +: $1.08~2.581000 +: $1.08~2.58

Style：

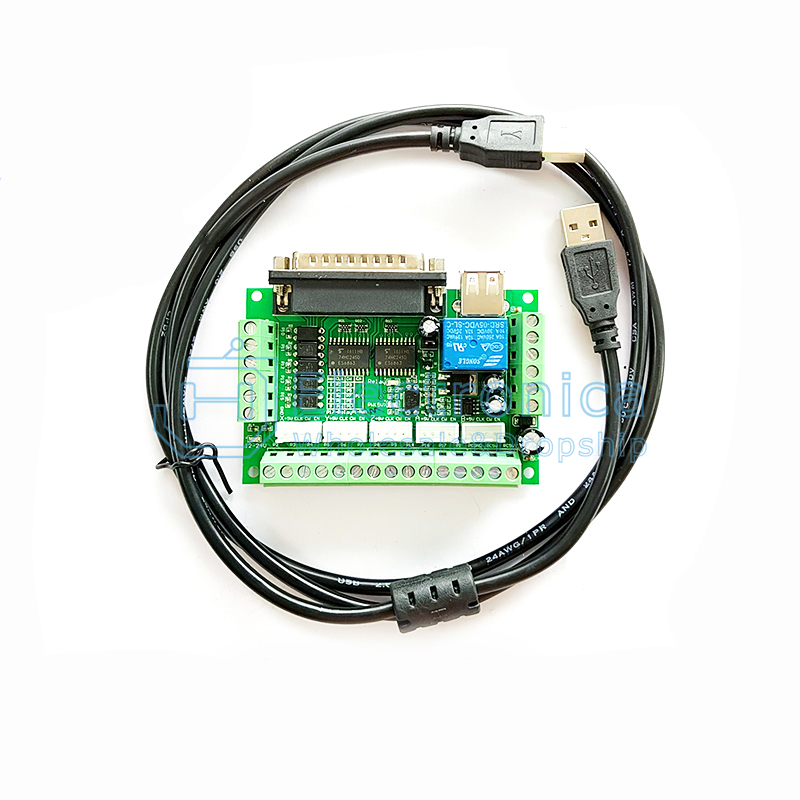

MACH3 engraving machine(with USB)

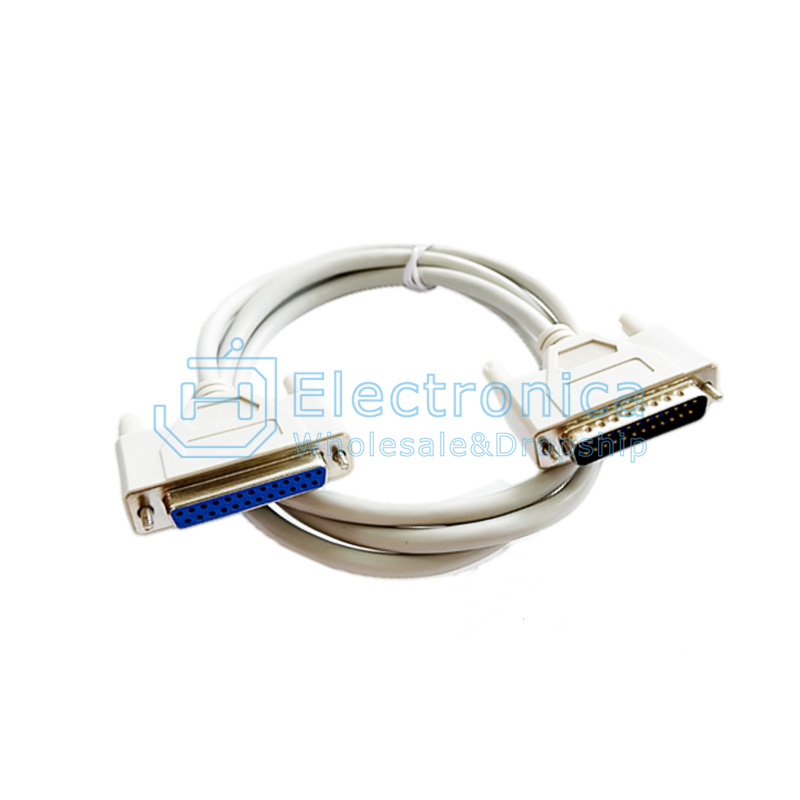

DB25 print cable
