Description

Specification:
1. 3 axis stepper motor driver
2. Compatible with micro-drive laser engraving machine,three-axis CNC engraving machine
3. 2A can be controlled within the two-phase four-wire stepper motor
4. Released the digital IO interface,easy to connect to other modules,such as ENDSTOP
5. Released the I2C interface,you can connect to the LCD I2C or other I2C module
6. Power DC5V interface,7.5-12V voltage input
7. GRBL compatible
8. Size:59mm×72mm

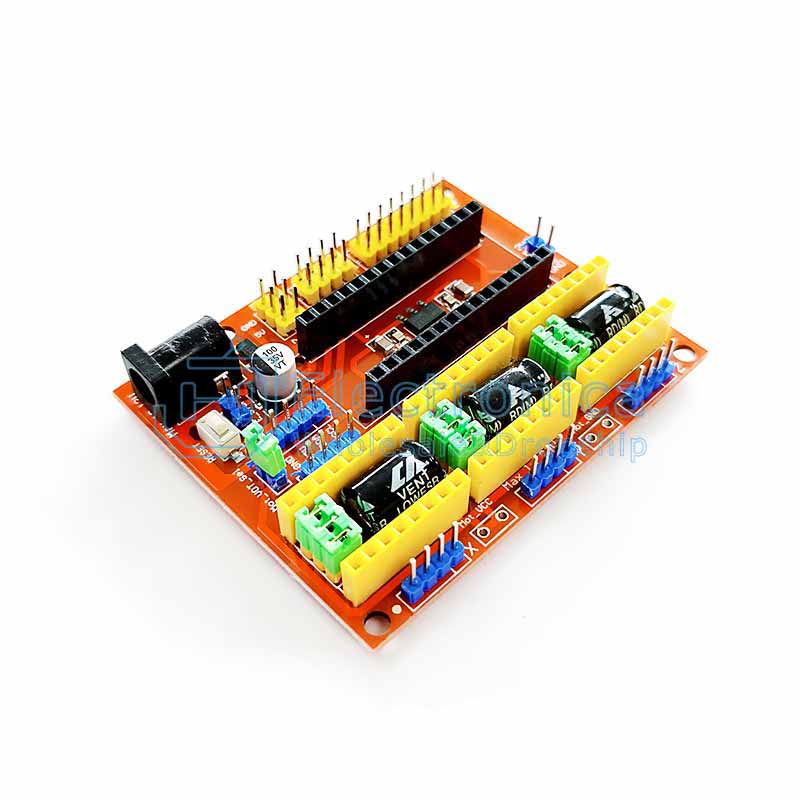

CNC shield V4 needs to work with Nano board.It can be used as driver expansion board for engraving machines and 3D printers.It has in total 3 channel slots for A4988 stepper motor driver modules(not included)for driving 3 channel of stepper motors.Each channel of stepper motor only needs 2 IO ports,which means 6 IO ports is sufficient to manage 3 stepper motors.This shield can make quick work for managing stepper motors in your project

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

CNC Shield V4 Engraving Machine Expansion Board Kit

SKU : YXC754 Brand : JH Stock

Price : $ 1.00

100 +: $1.00500 +: $1.001000 +: $1.00
