Description

Sensing input Voltage：110/220/400VAC , 1 phase 2 wire

Power Input voltage：100-260VAC , 1 phase 2 wire
Output voltage：max 90 VDC at 240VAC input
Current：Continuous 3 A , intermittent 5A for 10secs
Resistance：Min.15 ohm , Max 100ohm
Voltage Build-up：residual voltage at avr terminal >5VAC
Voltage Regulation：<±1% with 4% engine governing
Operating Temperature：(-40°C to +60°C
Storage Temperatue (-65°C to +85°C）
External Volts Adjutment：±7% with 1k ohm 1 watt trimmer
EMI Suppression：Internal electromagnetic interference filtering
Unit Power Dissipation：Max.8 watt
Under Frequency Protection：
60Hz system presets knee point at 55Hz
50Hz system presets knee point at 45Hz
Dimensions：107mmL*82mmW*50mmH

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

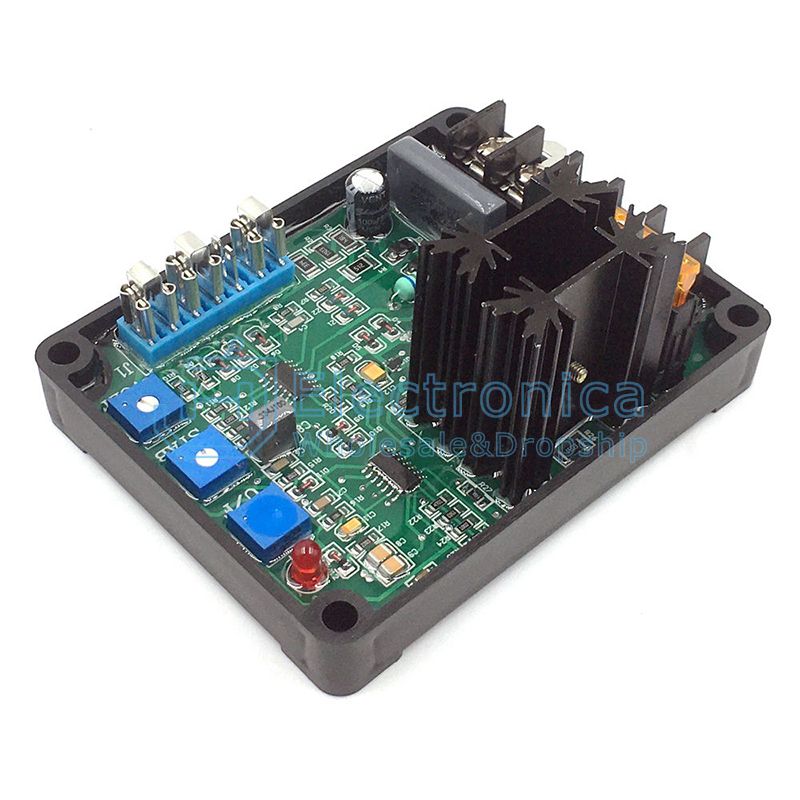

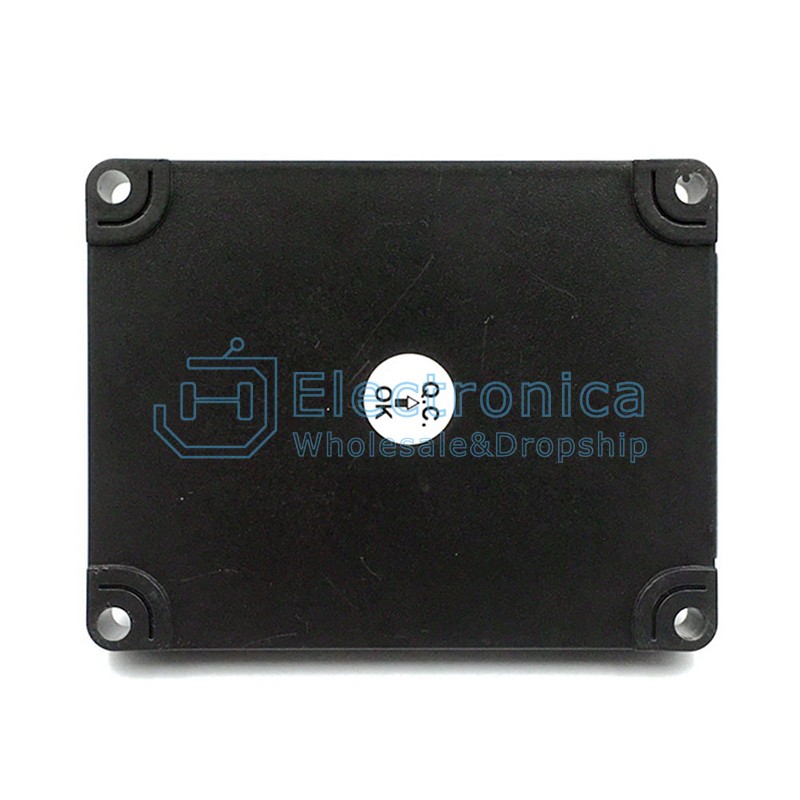

GAVR-8A Universal Brushless AVR Module

SKU : YXB842 Brand : JH Sourcing

Price : $ 9.22

100 +: $9.22500 +: $9.221000 +: $9.22
