Description

Product Parameters:
AC input(VAC):85-264
DC input(VDC):110-370
Frequency range(Hz):47-63
Input current(A):0.5/11SVAC,0.25/230VAC
Inrush current(A):Cold Start,10A/230VAC
Fixed hole diameter:3.2mm

Product Features:

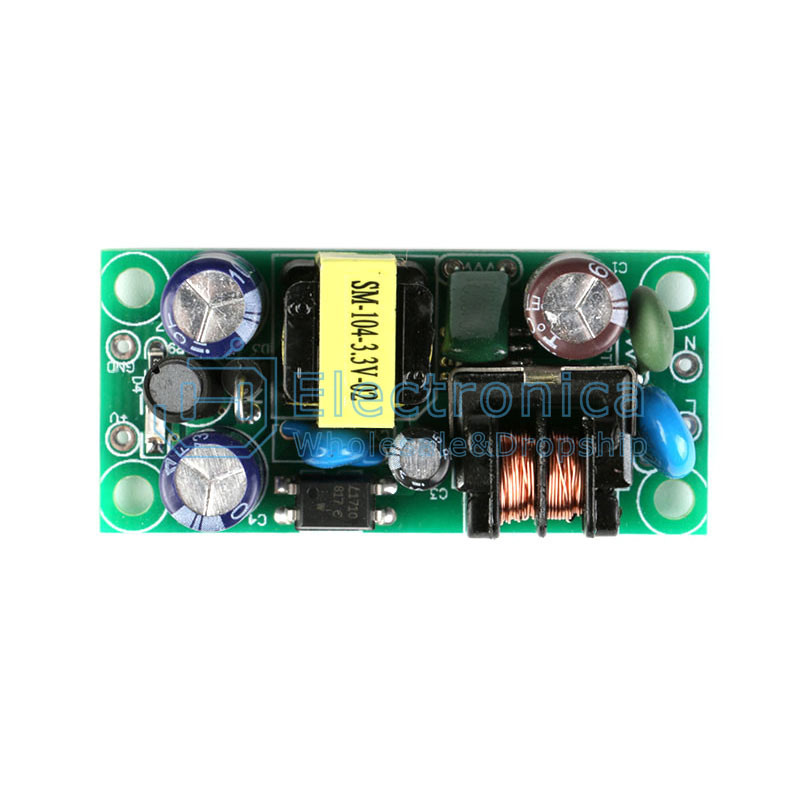

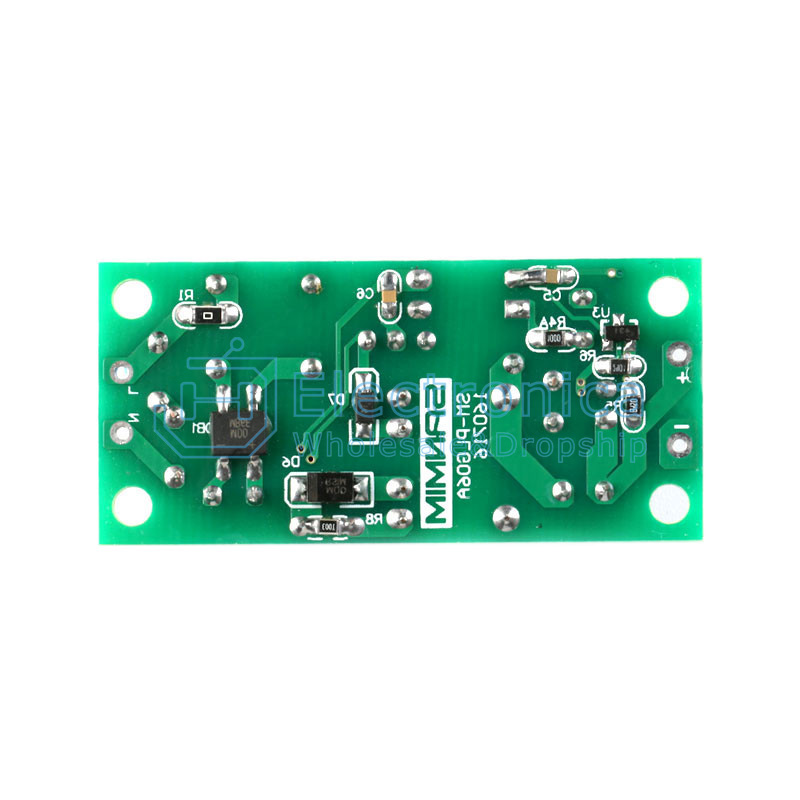

This module is a precision AC-DC switching power supply module. The product is easy to install and can be directly used on the motherboard with pins. There are fixed installation holes at the four corners to prevent power outage caused by movement/vibration of the product. The straight diameter of the fixed holes is 3.2mm. Global universal input voltage: 85-264V AC or 110-370V DC. High efficiency, high power density, low output ripple noise, and high output voltage accuracy. High isolation between input and output. Overcurrent protection, short circuit protection, and temperature protection. The output is equipped with built-in LCr filtering and does not require an external filtering circuit

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

SM-PLG06A 220V to 3/5/9/12/15/24V AC-DC Switching Power Module

SKU : YXS1055 Brand :

Price : $ 1.74

100 +: $1.74500 +: $1.741000 +: $1.74

Style：

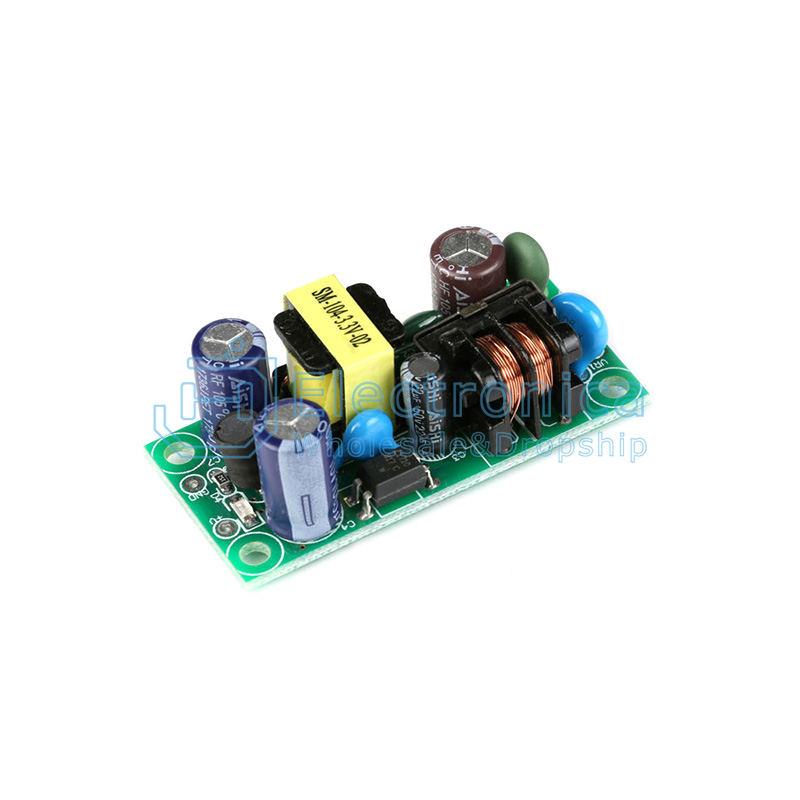

SM-PLG06A-03

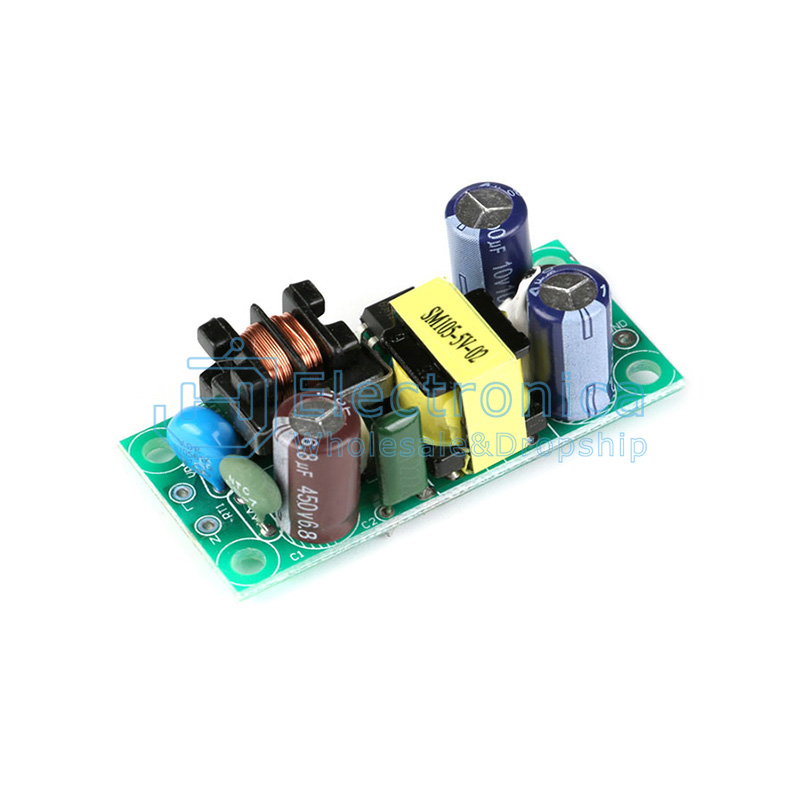

SM-PLG06A-05

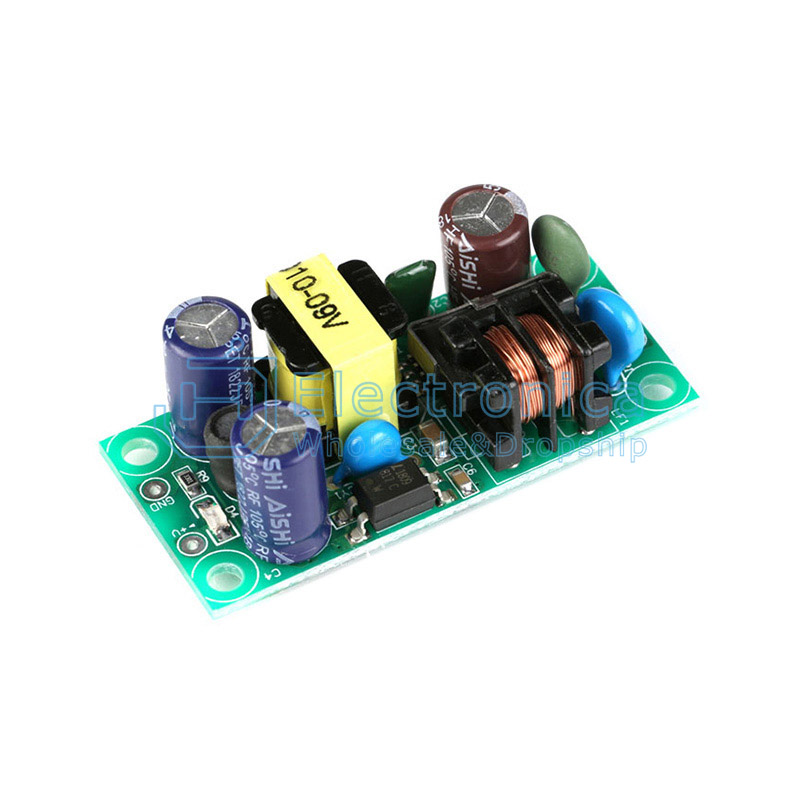

SM-PLG06A-09

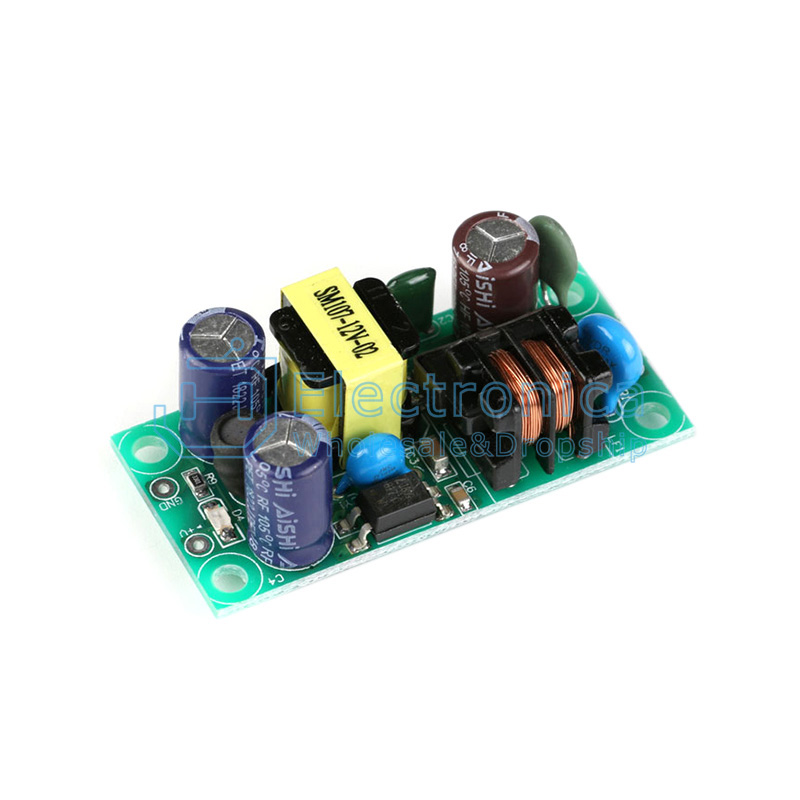

SM-PLG06A-12

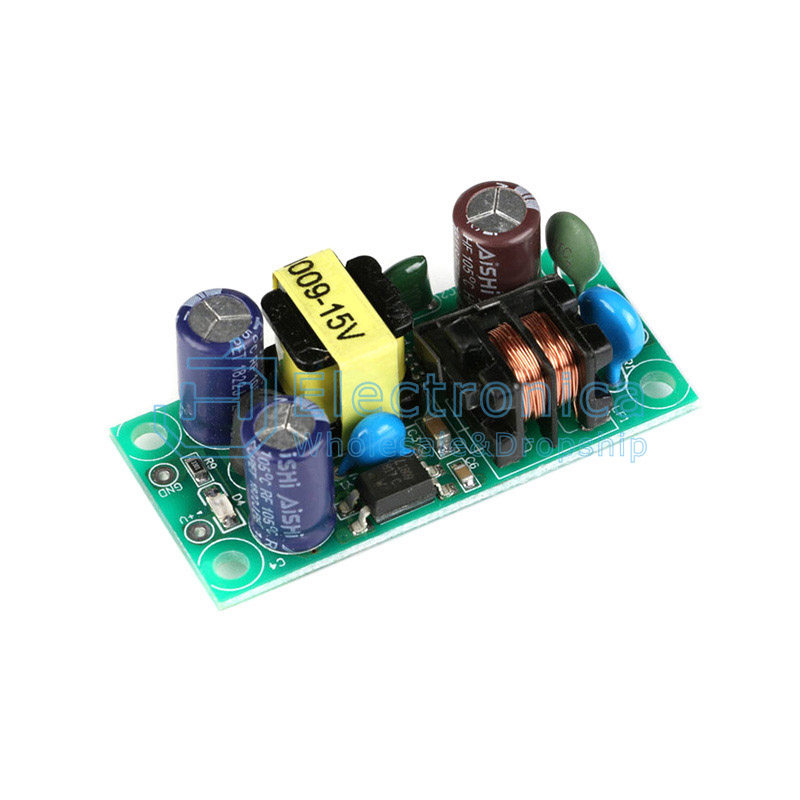

SM-PLG06A-15
SM-PLG06A-24
