Description

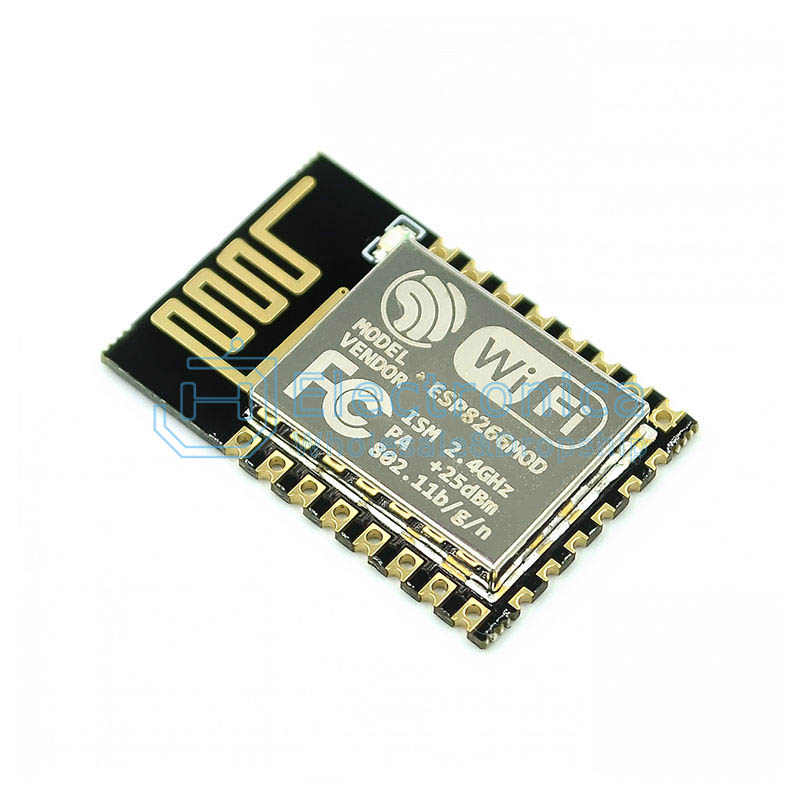

Type: ESP-12F

Wireless standards: 802.11 b / g / n
Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)
Working Current: Average: 80mA
Operating temperature: -40 ° ~ 125 °
Storage temperature: Nomal temperature

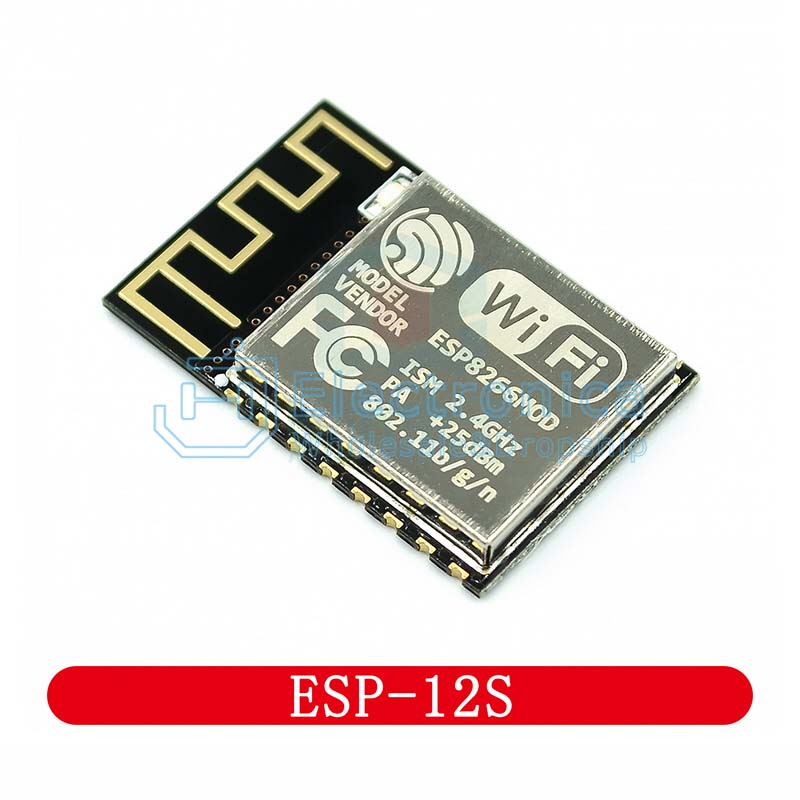

Type: ESP-12S
Wireless standards: 802.11 b / g / n
Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)
Working Current: Average: 80mA
Operating temperature: -40 ° ~ 125 °
Storage temperature: Nomal temperature

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

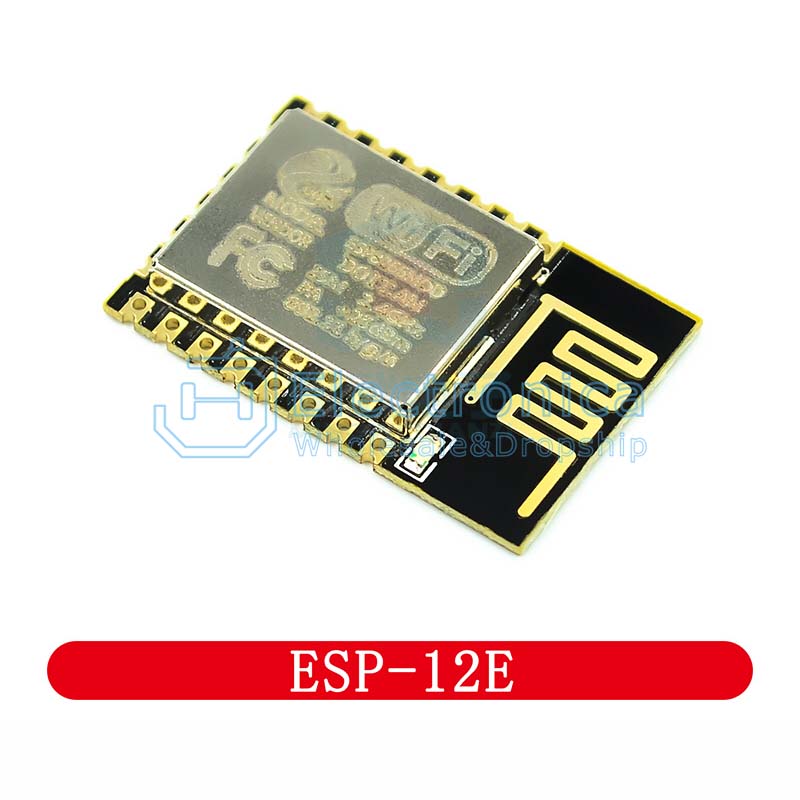

ESP-12E ESP-12F ESP12S WIFI Module

SKU : YXA484 Brand : JH Stock

Price : $ 0.89~0.96

100 +: $0.89~0.96500 +: $0.89~0.961000 +: $0.89~0.96

Style：

ESP12E
ESP12F
ESP12S

Quantity :

- +

ADD TO CART
