Description

Key Description:
EN: The Lexin module enables the foot, and when the button is pressed, the module is in a reset state
ESP BOOT: Press the button to manually enter the download mode on the BOOT pin of the Lexin module
Product Introduction:
1.ESP32C3-MINI-1 is a universal Wi Fi and low-power Bluetooth dual-mode module with powerful functions. This module uses a PCB onboard antenna and is equipped with 4MB SPI flash
2.Pin arrangement: All availabel GPIO pins have been led out of the development board arrangement pins
3. Power converter, input 5V, output 3.3
4. USB interface, can be used as the power supply interface for the development board, can burn firmware to the chip, and can communicate with the chip through the USB protocol
5. Control the I/O port level of TX/RX, which can be selected as 3.3V or 5V, with a default of 3.3V
6. Single chip USB to UART bridge, which can increase the transmission rate to 3Mbps

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

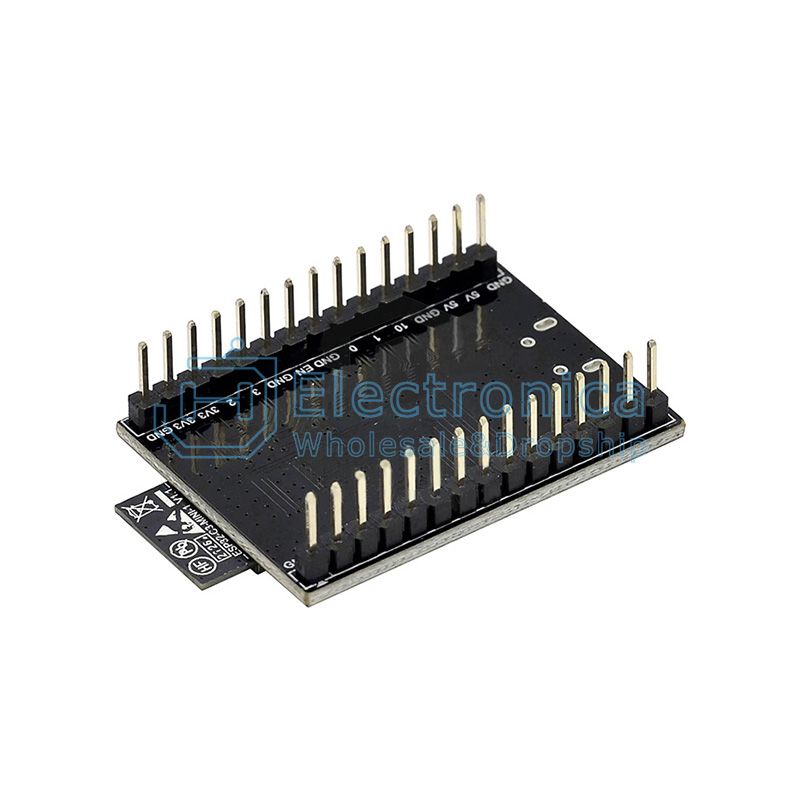

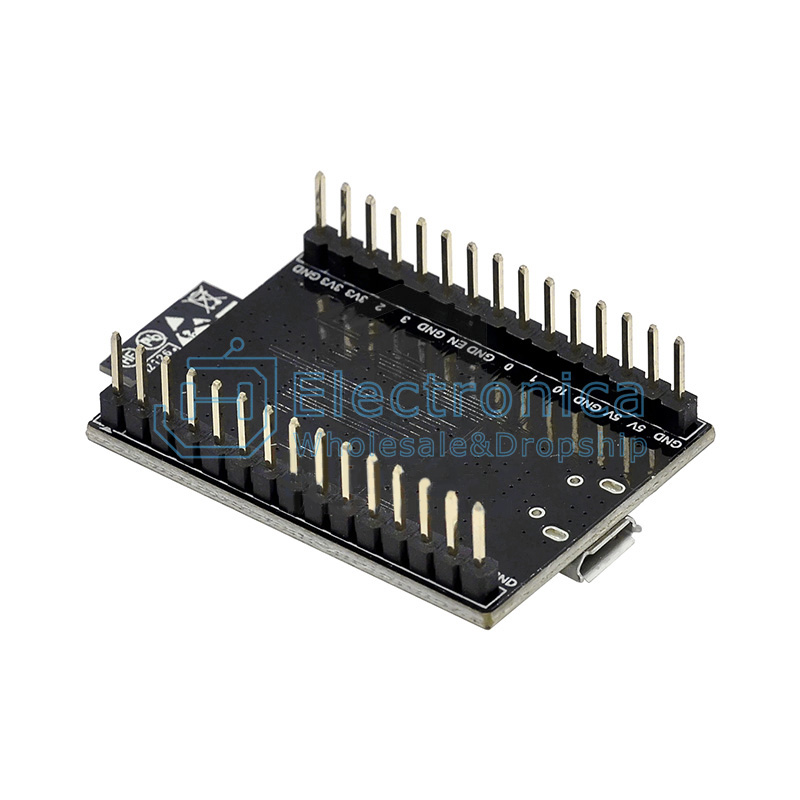

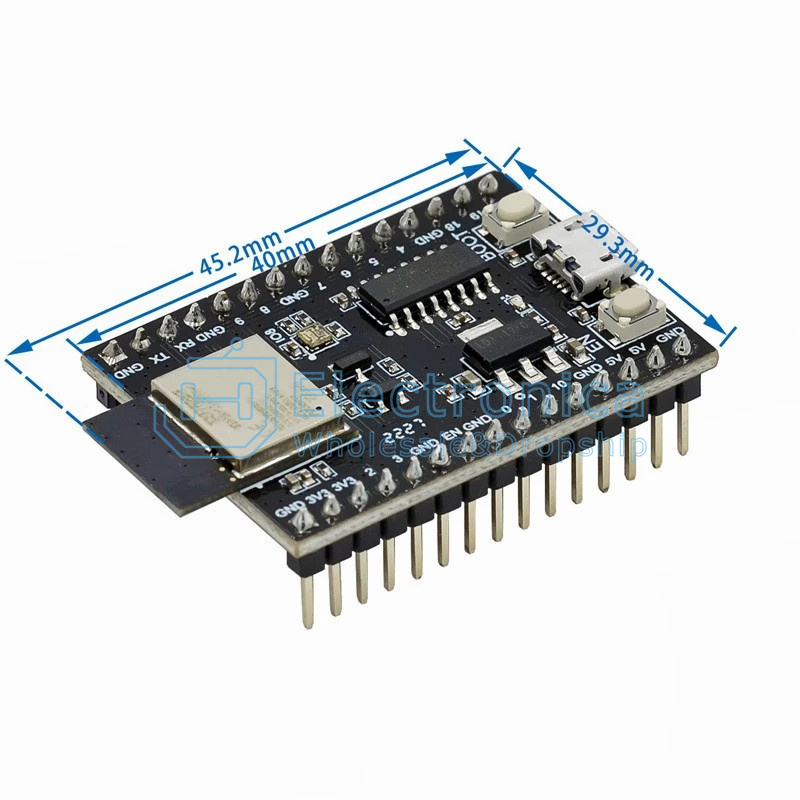

ESP32-C3 Development Board

SKU : YXS1583 Brand :

Price : $ 2.42

100 +: $2.42500 +: $2.421000 +: $2.42

style：

ESP32-C3 Development Board

Quantity :

- +

ADD TO CART
