Description

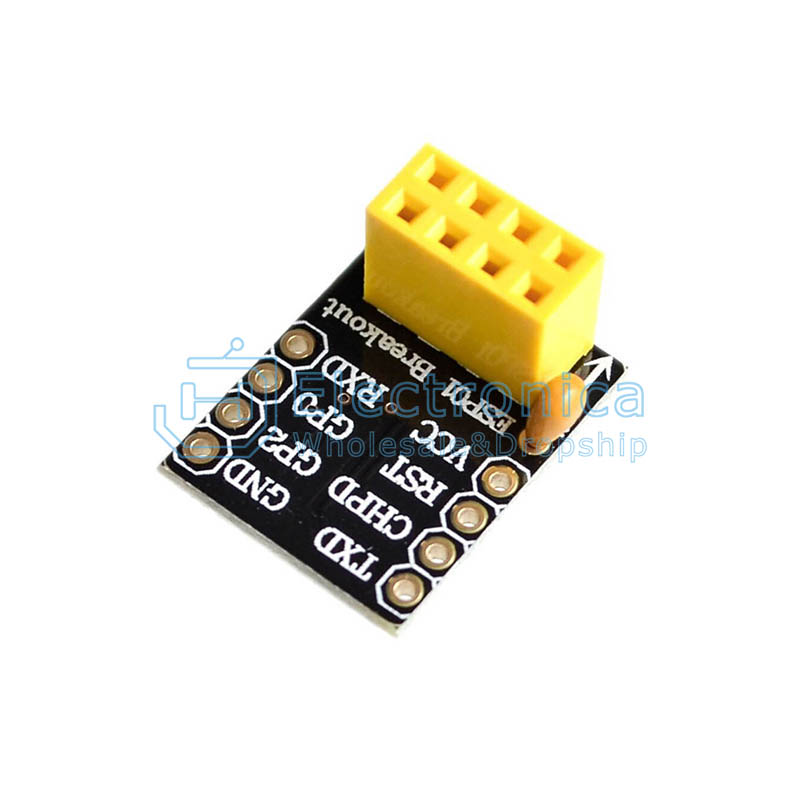

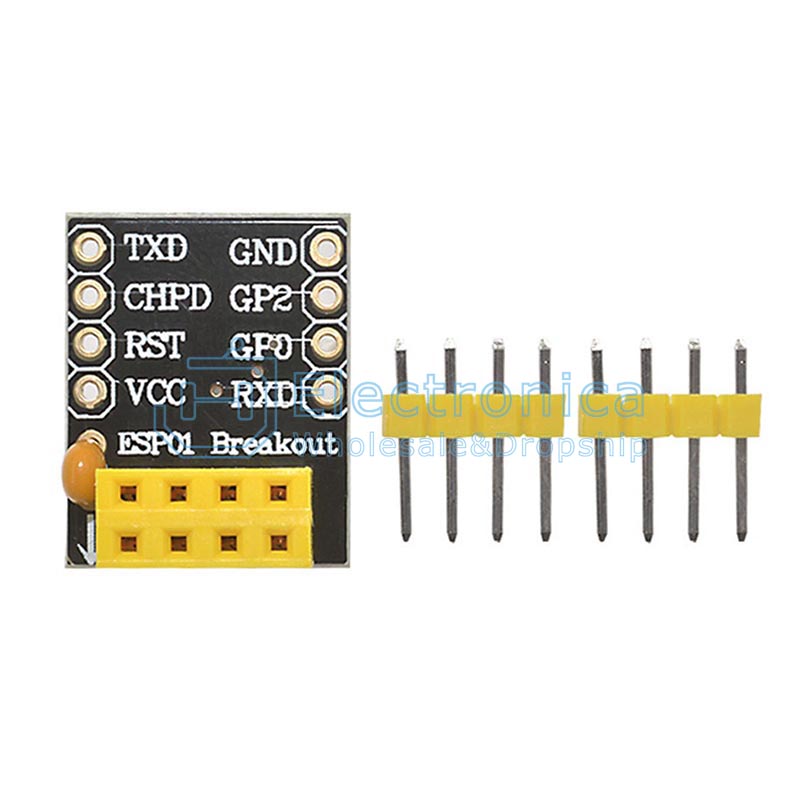

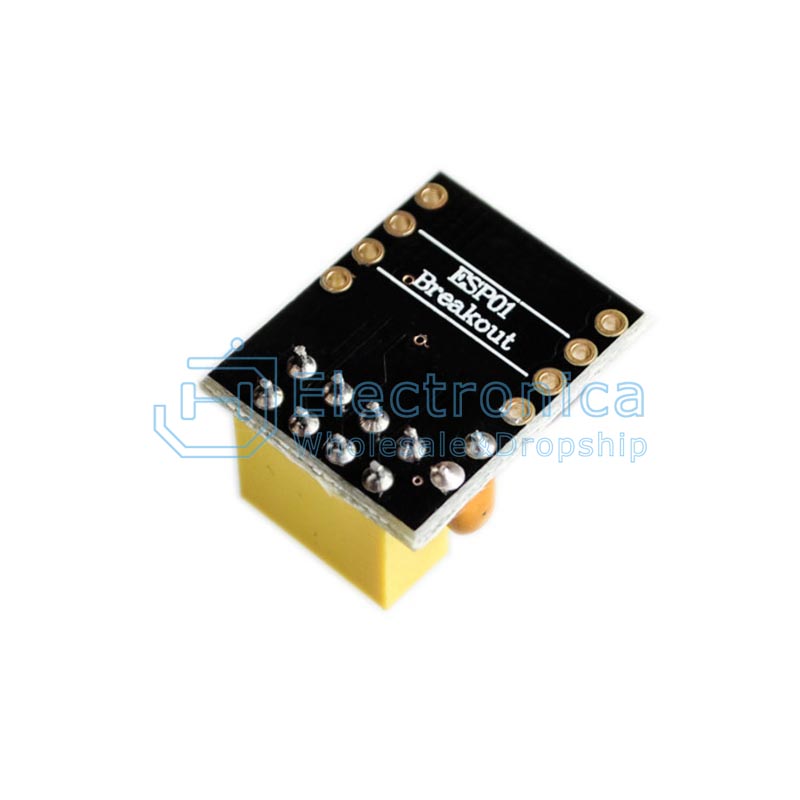

This is a common model esp-01 breadboard adapter for esp8266 serial to WiFi transceiver module.
Because the pin arrangement of esp-01 is not breadboard friendly and has no label, it is not convenient for rapid prototyping. This breadboard adapter will help you do it
It's easier to use the esp-01 module prototype.
This breakthrough conveniently provides a clear lead out screen at the top and will be well suited to your favorite breadboard.
After, but not unimportant, we added a 0.1 μ F decoupling capacitor, so esp-01 will always run smoothly without hindrance.

Connect:
URAT adapter
3.3V VCC
3.3V CH-PD
TX RX
RX TX
Select NL CR 15200 baud rate

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

ESP8266 ESP-01 ESP-01S Adapter Board for Breadboard

SKU : YXB132 Brand : JH Stock

Price : $ 0.13

100 +: $0.13500 +: $0.131000 +: $0.13
