Description

Center frequency:10mW
Communication distance:380m
Working voltage:1.9-3.6V DC,meeting the battery power supply requirements
Module size:15*28mm
Voltage:1.8V-3.6DC
Communication level:7V-3.6V DC
The measured distance:>380 meters(depending on whether there are obstacles in the environment)
Maximum power:10dpm(approximately 10mw)
Air speed:1.2kbps-500kbps(due to the physical characteristics of 433,it is recommended not to exceed 20kbps)
Emission current:29.2mA(peak)
Receiving current:14.7mA
Communication interface:Standard SPI interface,mode 0,communication rate up to 10Mbps
Operating temperature:-30~85℃
Operating temperature:10%-90%
Storage temperature:-40~125℃
Operating frequency band:387MHz-464MHz(adjustable through software,433 (± 10%) recommended)
Receiving sensitivity:-117dpm@250kbps

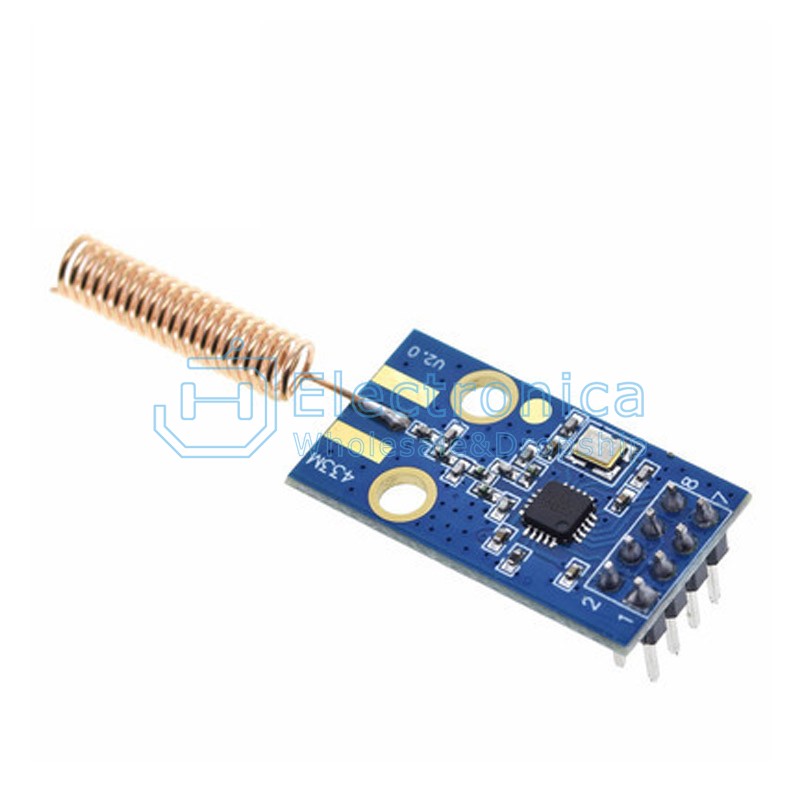

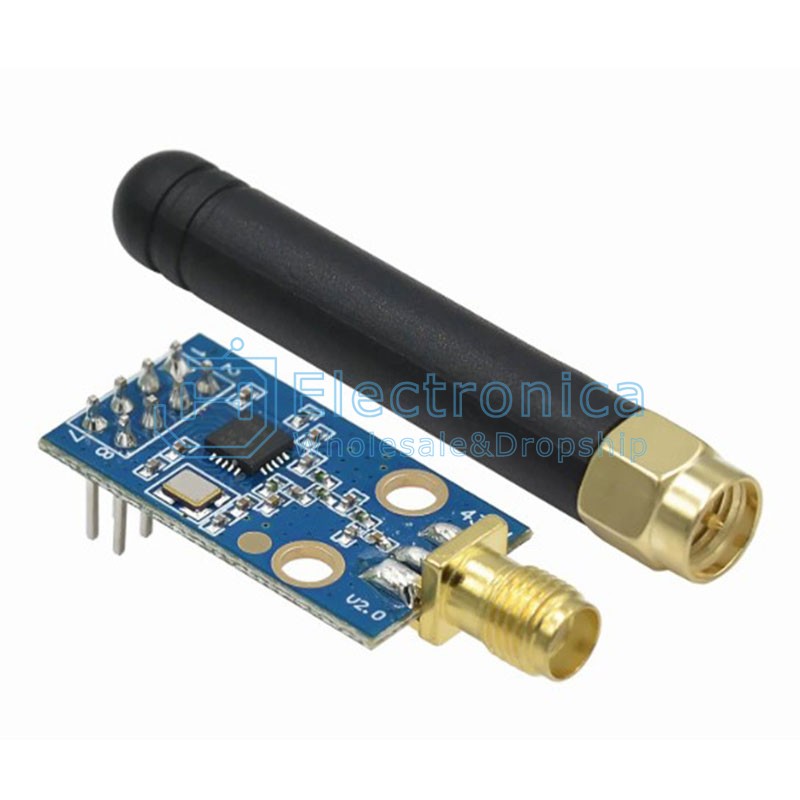

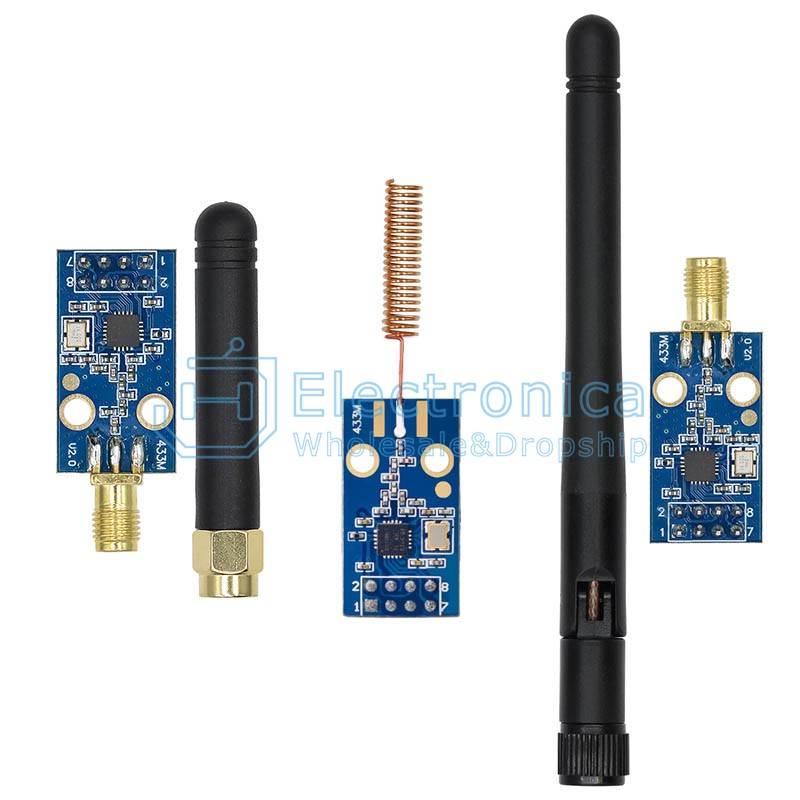

CC1101 433M Wireless Module with Antenna

SKU : YXS2253 Brand :

Price : $ 1.83

100 +: $1.83500 +: $1.831000 +: $1.83

Quantity :

- +

ADD TO CART
