Description

Working Voltage:DC3.3V-5V
Working Current:3mA
Sensitivity:-108DBM
Speed:MAX 10 KB/S
Supporting Encoding Chip Models:EV1527, PT2262, PT2260, PT2240 and Other Encoding Chips
Working Mode:Jog,Self-locking,Interlock
Output:4-channel CMOS Level Signal,Can Correspond to the Four Buttons 'ABCD' on the Remote Control
When Pressing the Remote Control Button,D0,D1,D2,D3 Output a High Level, and When not Pressed, They Output a Low Level
Storable Remote Controls:20

RX480E 3.3V-5V 433Mhz Wireless Receiving Module

SKU : YXS2278 Brand :

Price : $ 0.60

100 +: $0.60500 +: $0.601000 +: $0.60

Style：

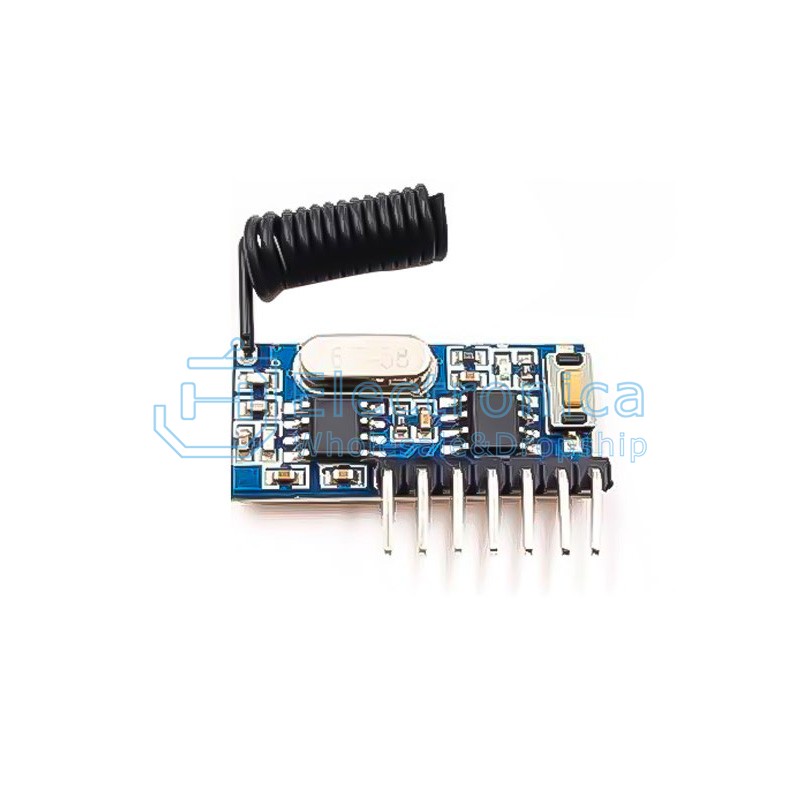

Export Version with Antenna

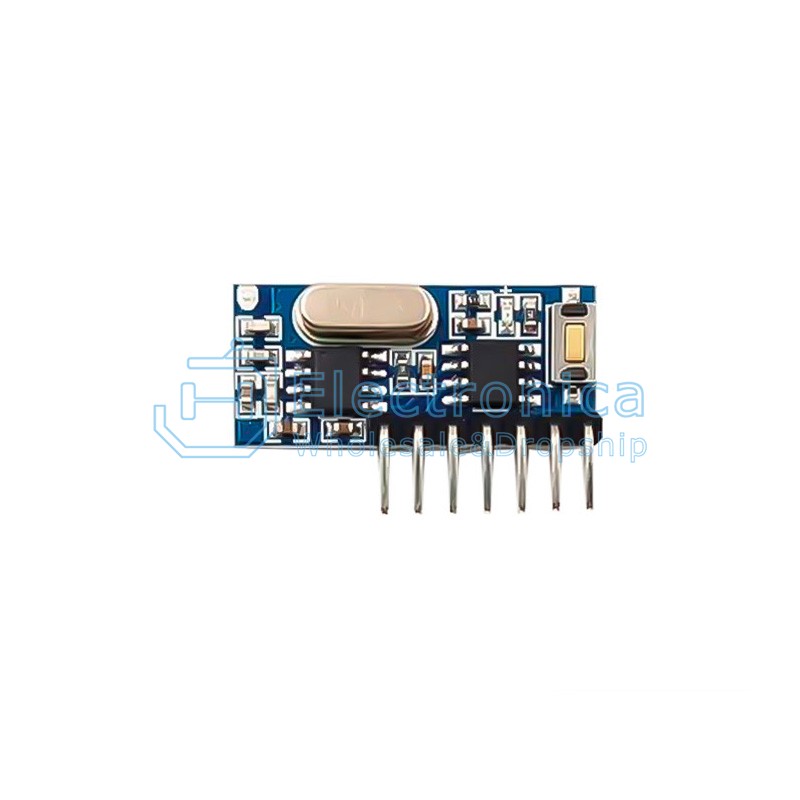

Export Version without Antenna

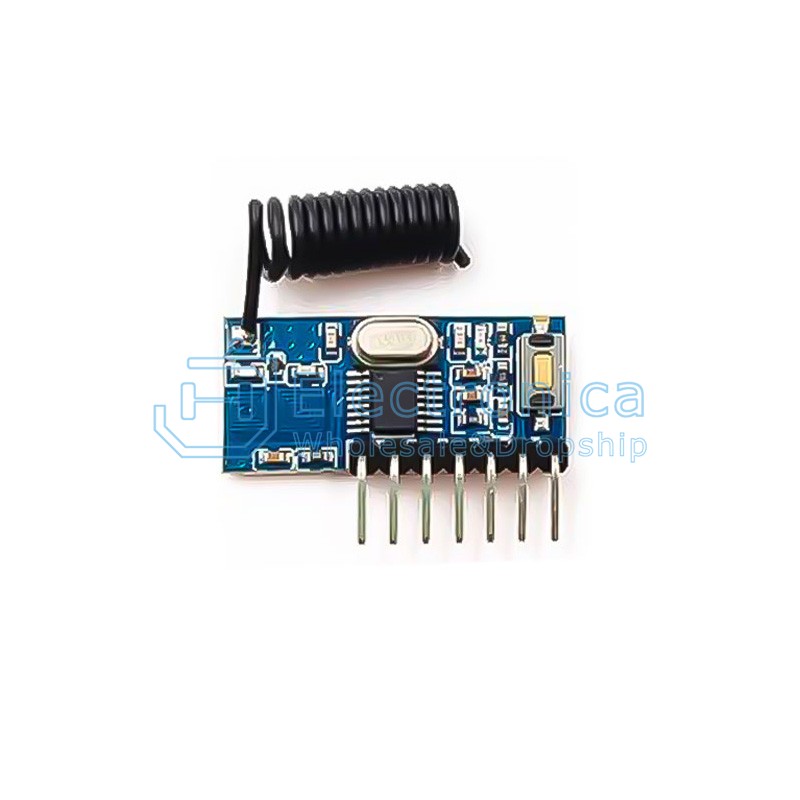

Single Chip with Antenna Style

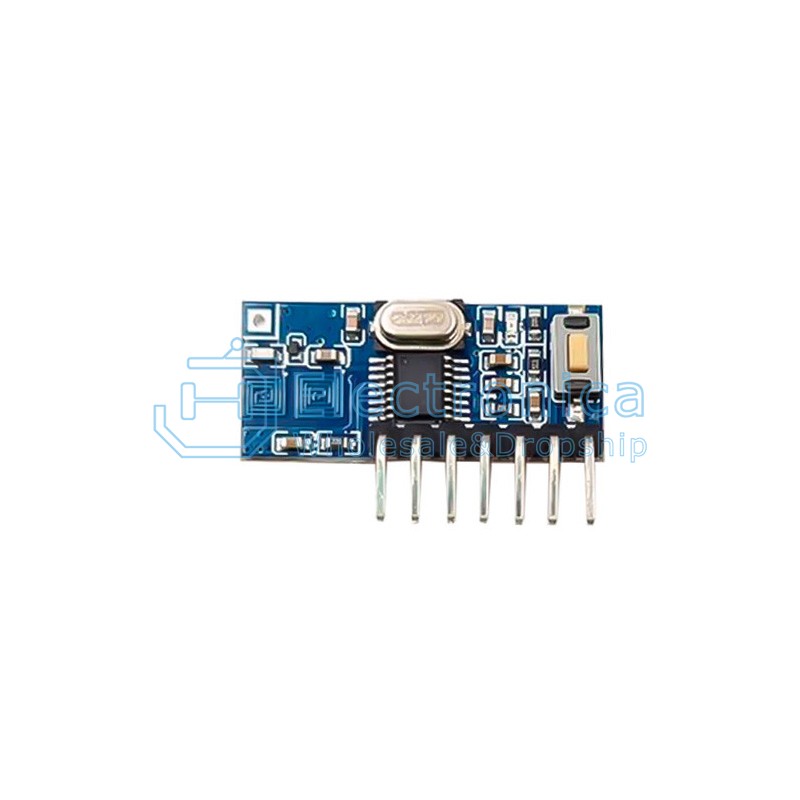

Single Chip without Antenna Style

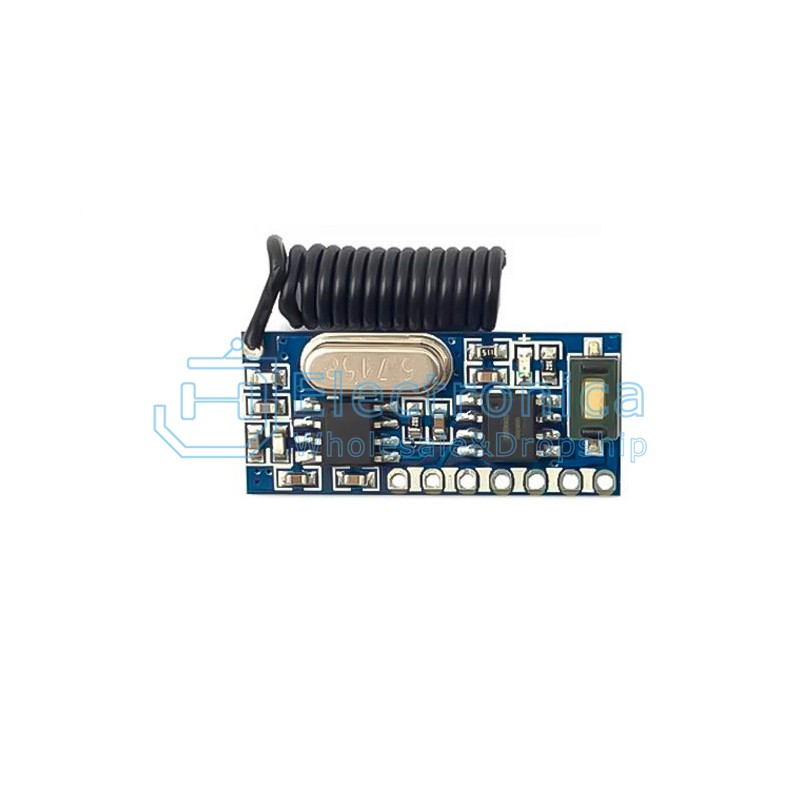

Dual Chip without Pin with Antenna

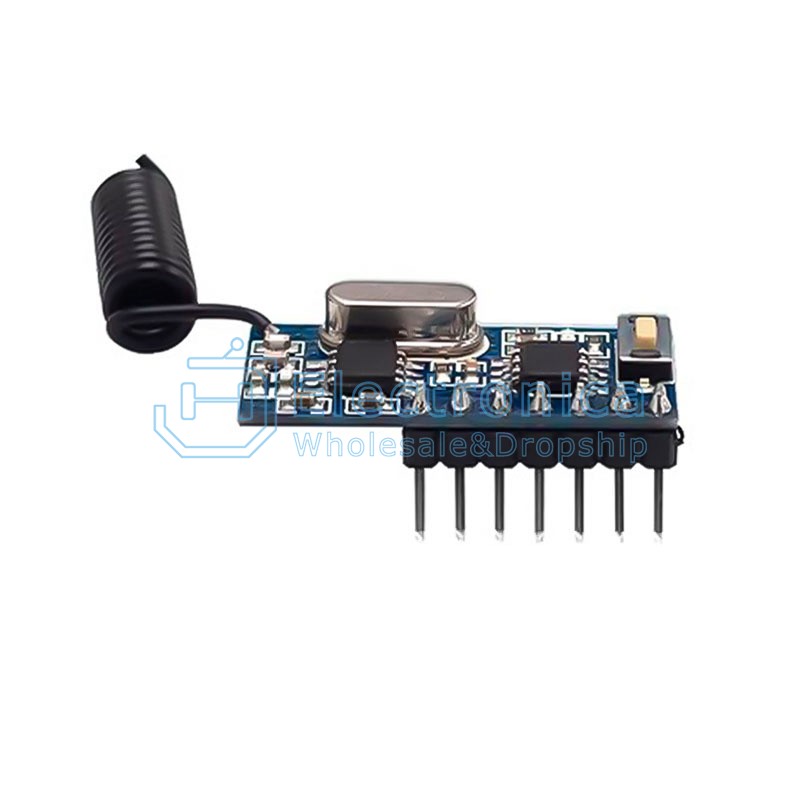

Export Version with Antenna-Straight Pin
