Description

Characteristic:
16A Contact Switching Capability
Can Provide Highly Sensitive Products with a Coil Power Consumption of 200mW
The Dielectric withstand Voltage Between the Coil and the Contact is up to 4KV
Creepage Distance and Air Distance ≥6.5mm
Can Provide Products with a Working Temperature of 105℃
UL Insulation Grade:F Grade
Environmentally Friendly Products(Compliant with RoHS)
Dimensions:18.4*10.2*15.5mm
Main Applications:Household Appliances,Smart Homes
Contact Form:1A
Contact Resistance(Initial Value):≤100mΩ(6VDC 1A)
Contact Material:AgSnO₂
Control Load(Resistive):10A 250VAC,16A 250VAC
Maximum Switching Voltage:277VAC
Maximum Switching Current:16A
Maximum Switching Capacity:4000VA
Minimum Allowable Load:5VDC 100mA
Insulation Rresistance(Initial Value):1000MΩ(500VDC)

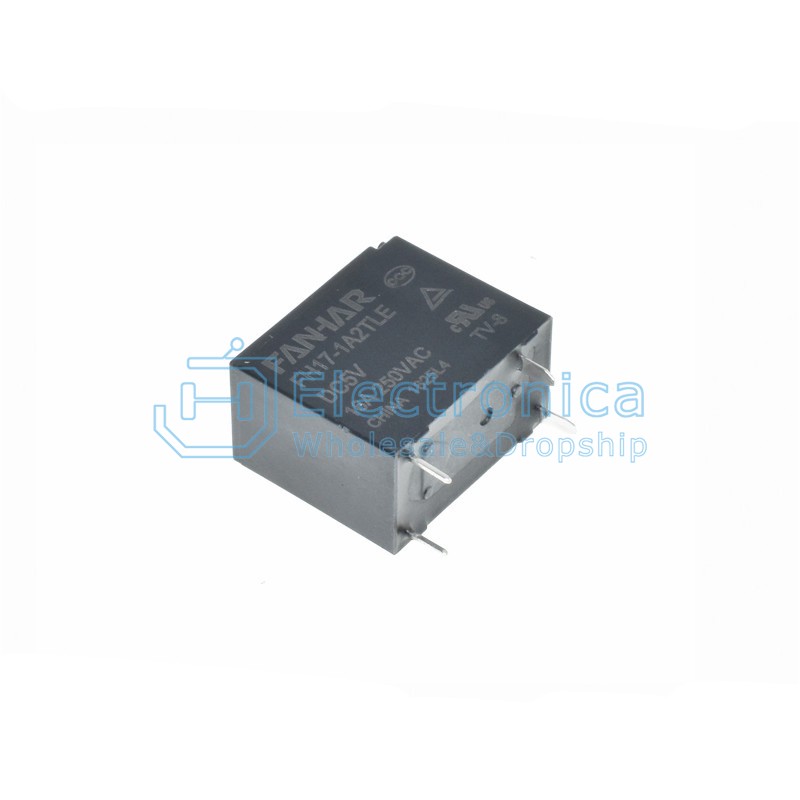

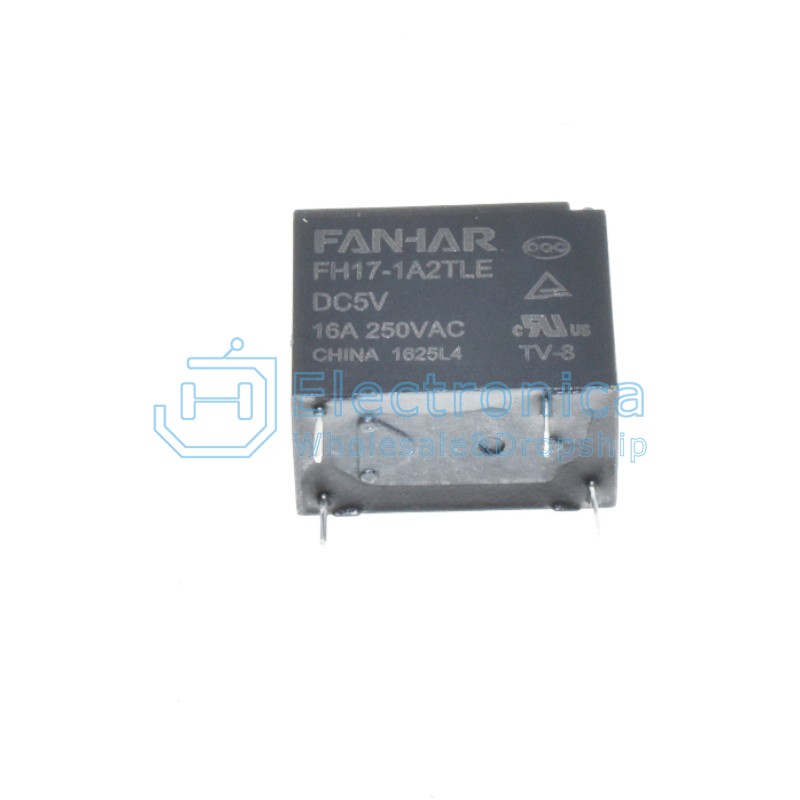

FH17-1A2TLE 4 Pin Power Relay

SKU : YXS2280 Brand :

Price : $ 0.34~0.38

100 +: $0.34~0.38500 +: $0.34~0.381000 +: $0.34~0.38

Style：

Quantity :

- +

ADD TO CART
