Description

Keyes bh1750fvi digital light sensor module is a digital light intensity sensor integrated circuit for two-wire serial bus interface.

Using the light intensity data collected by the module, the brightness of LCD and keyboard backlight can be adjusted.

The resolution of the module can detect a wide range of light intensity changes.

Parameters：

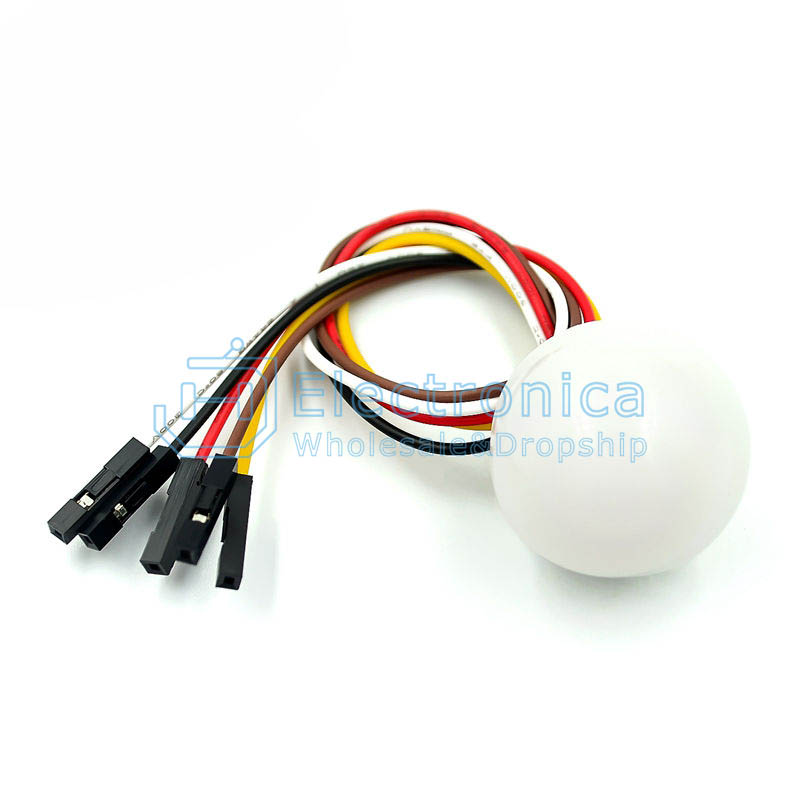

1. Outer diameter 26mm, big edge diameter 28.5mm, height 26mm (with light ball)
2. Working voltage: DC5V
3. Communication interface: I2C
4. Input light range: 1-65535lx
5. Spectral sensitivity characteristics: peak sensitivity wavelength: 560nm
6. Weak dependence on light source: incandescent lamp, fluorescent lamp, halogen lamp, white LED, fluorescent lamp

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

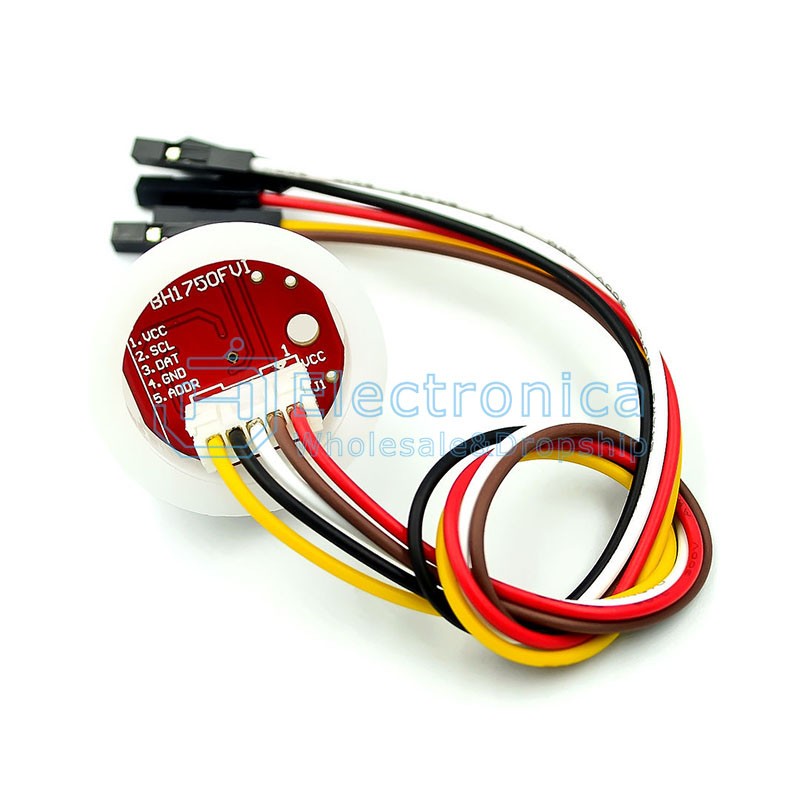

BH1750FVI Digital Light Sensor

SKU : YXA844 Brand : JH Stock

Price : $ 1.35

100 +: $1.35500 +: $1.351000 +: $1.35
